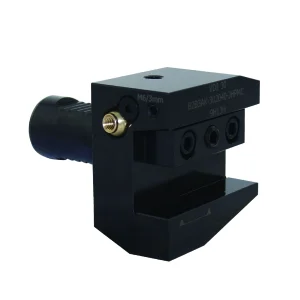

In high-precision lathe machinery, performance rests entirely on tool holding stability. The VDI (Verein Deutscher Ingenieure) standard, formally defined under DIN 69880 / ISO 10889, represents one of the most widely adopted quick-change tool systems in the global metalworking industry. VDI radial tool holders are engineered to securely clamp turning, boring, threading, and grooving tools perpendicular to the machine turret’s rotational axis. Unlike axial holders, which orient the tool parallel to the spindle centerline, radial systems focus structural rigidity along the radial direction, maximizing force absorption during intense turning profiles.

China's high-end manufacturing sector has evolved from a mass-producer into a leader in precision engineering. Under the Factory 4.0 standard, plants now use automated manufacturing lines, high-precision cylindrical grinders, and strict quality control setups. This digital integration ensures that each batch of VDI radial tool holders meets standard tolerances for dimensions and hardness.

Using high-quality raw materials like 20CrMnTi alloy steel, these factories perform carburizing and quenching treatments. This process achieves a surface hardness of HRC 58-62 while keeping a tough core. This prevents cracking or wear under heavy torsional and radial loads. Precision grinding processes are used to produce shanks with sub-micron tolerances, ensuring maximum contact surface engagement with the machine tool turret.

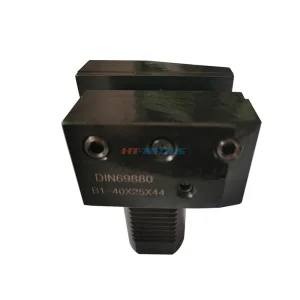

Automotive manufacturing requires components like drive shafts, gear hubs, and engine casings to be produced in large quantities and with consistent dimensions. In these setups, VDI radial tool holders (such as the B1 and B2 variants) are used to perform continuous external turning and threading. This helps prevent tool deflection and vibrations, ensuring that critical seal surfaces maintain the required micro-finish.

Aerospace parts made from materials like Titanium alloys and Inconel generate significant structural vibrations and thermal stresses during machining. Using rigid tool holders like the VDI40 and VDI50 series provides the necessary clamping force. This rigidity prevents micro-chatter, which can cause premature wear on expensive carbide inserts, ensuring precise dimensions during long machining cycles.

Medical components like bone screws and joint implants demand tight tolerances. For these applications, VDI30 and smaller VDI configurations (such as standard radial right-hand tools with external coolant setups) deliver the required stability. This ensures clean finishes on complex surgical-grade metals like stainless steel and PEEK.
