Discover our core line of premium VDI axial tool holders engineered for maximum rigidity, zero-backlash, and high repeatability across leading CNC lathes.
Unlocking machining efficiency, alignment accuracy, and high torque transfer with German DIN 69880 engineering standards.

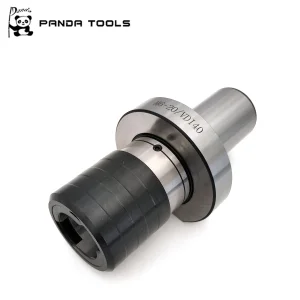

In modern CNC metalworking, productivity is determined by micrometric tolerances and rapid changeover capabilities. The VDI (Verein Deutscher Ingenieure) mounting standard, governed internationally by DIN 69880 (and ISO 10889), represents the industry benchmark for quick-change tooling interfaces on lathe turrets. Within this ecosystem, axial tool holders (commonly classified under types C1, C2, C3, and C4) play a decisive role. They align cutting tools parallel to the machine tool spindle axis, executing precision operations such as turning, facing, drilling, and thread cutting under challenging vibrational and thermal conditions.
As standard lathes transition to complex mill-turn multitasking centers, the design of static and driven VDI axial tool holders has advanced significantly. To guarantee structural stability under high torque, static axial holders require optimized seating surfaces and high-durability serration interfaces. Any minor deflection can cause tool chatter, premature insert wear, and compromised surface finish. This guide addresses the fundamental components of VDI axial tool holders, highlighting their manufacturing processes, localized integration, and global supply chain strategies.
Why global OEMs, tooling distributors, and Tier-1 automotive machinists trust Shandong Ricon Tools.
We utilize ultra-refined Chinese 20CrMnTi steel alloy. This grade offers a hard outer case (HRC 56-60) and a ductile inner core, protecting the holder against sudden structural shear stresses during heavy roughing cuts.

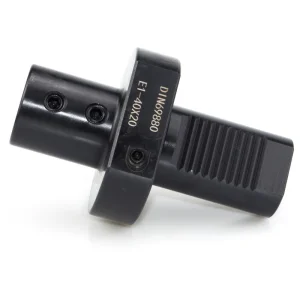

The VDI shank interface features a critical serrated alignment profile. We process these shanks using high-precision German grinding equipment to achieve sub-micron dimensional deviations, assuring tight fits inside tool turrets.
Every production run undergoes coordinate measuring machine (CMM) profiling, dynamic balancing testing (for driven units), and laser-guided runout assessments to confirm compliance with DIN 69880 specifications.
Shandong Ricon Tools Co., Ltd. is a leading manufacturer specializing in the research, development, production, and sales of high-precision machine tool accessories. Since our founding, we have focused on delivering premium tooling systems to metalworking and woodworking businesses globally.
Our comprehensive catalog features a range of products including 4-jaw woodworking chucks, American quick-change tool holders, VDI tool holders, boring heads, ER collet chucks, milling chucks, drill chucks, CNC tooling accessories, and custom components. Our products support high-performance operations in CNC machining centers, automated turning centers, and milling configurations.
To ensure consistent quality, Ricon Tools operates advanced CNC grinding, milling, and turning systems, alongside inspection and automated production units. Backed by our engineering team and strict quality control, each product is built to provide high precision, structural durability, and reliable field operation.
Our workshop features modern technology at every stage, from initial raw material cutting to final anti-corrosion coating and packaging.
Understanding the engineering mechanics that distinguish high-performing tool holders from lower-tier alternatives.
When mounted on a VDI disc turret, the tool shank's alignment teeth mesh directly with the turret's internal locking pin system. Our VDI tool holders are ground to within 0.003 mm tolerances. This allows machinists to swap holders without re-calibrating zero offsets on the machine controller, reducing setup times and minimizing manufacturing downtime.
Effective heat dissipation at the cutting zone is essential for hard-turning operations. Our VDI tool holder range features internal fluid passages designed to support standard coolant pressures as well as ultra-high-pressure (150+ bar) systems. This design directs coolant to the cutting edge, improving chip clearance and thermal control.
We design our tool holder bodies using finite element analysis (FEA) to maximize stiffness-to-mass ratios. By optimizing geometry and selecting shock-absorbent alloys, we suppress structural vibrations at high surface speeds, improving part surface finishes (Ra < 0.4 microns).

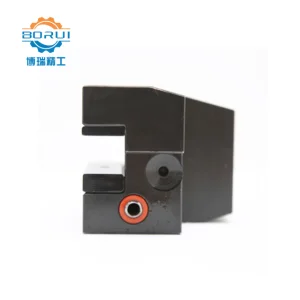

Whether your machine uses Mazak, Haas, DMG Mori, Okuma, or Doosan CNC platforms, our DIN 69880 series tool holders conform to strict mechanical dimensions. We offer axial tool blocks in VDI 30, VDI 40, and VDI 50 sizes with various clamping configurations.
VDI axial tool holders are a standard choice across demanding high-volume manufacturing sectors.
For turning spline shafts, gear blanks, and differential housings, manufacturers rely on our static C1/C2 axial tool holders. The robust structural design allows for heavy-duty metal removal rates, helping operators maintain production schedules with minimal tooling changes.
Machining heat-resistant superalloys (HRSA) like Inconel and Titanium requires high tooling stability. Our hardened 20CrMnTi tool holders resist high mechanical cutting forces, preventing tool deflection and ensuring accurate dimensional profiles.
Heavy-duty threading of oil country tubular goods (OCTG) demands high torsional rigidity. Our VDI 40 and VDI 50 axial tool blocks provide the clamping force required to handle deep grooving and threading passes with high process security.
We streamline industrial supply chains through customized engineering support, reliable capacity planning, and export-compliant logistics.
For global distributors and tooling agents, maintaining a reliable supply chain is essential. Ricon Tools offers comprehensive OEM/ODM manufacturing. We customize brand marks, produce components according to proprietary drawings, and adjust shaft tolerances to suit specific customer requirements.
Our logistics process includes individual moisture-barrier rust protection, durable foam-lined wooden cases, and comprehensive customs documentation to ensure smooth import clearance in the Americas, Europe, and the Asia-Pacific region.
With regular raw material stockpiling and high-capacity production lines, we support short lead times for container-load shipments and standard stocking replenishment orders alike.
Common questions from tool engineers and procurement specialists about standard selections and maintenance.
An axial tool holder aligns the clamped cutting tool parallel to the main lathe spindle axis (typically used for face turning, drilling, boring, and longitudinal machining operations). A radial tool holder positions the cutting tool perpendicular to the spindle axis (frequently used for external diameter turning, grooving, and parting operations). Choosing the correct orientation is essential for proper turret clearance and to avoid mechanical interference.

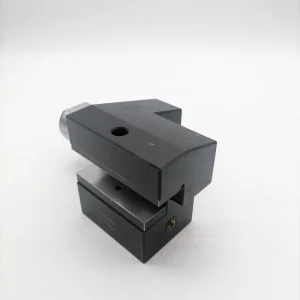

These classifications define the tool seat orientation and clamping direction relative to the lathe spindle rotation. Type C1 refers to a right-hand axial tool holder, while Type C2 is a left-hand configuration. Types C3 and C4 represent inverted variants, which position the tool holder body upside down to optimize chip evacuation and center line alignment for specific lathe models.
20CrMnTi is a high-grade low-carbon alloy steel containing chromium, manganese, and titanium. Through carburizing heat treatments, we achieve a high surface hardness of HRC 56-60 for wear resistance while maintaining core toughness. This combination ensures structural durability and prevents cracking under heavy mechanical shock loads, outperforming common structural steels.
Yes, provided the machine tool turret conforms to the DIN 69880 / ISO 10889 standard. Popular shank sizes (such as VDI 30, VDI 40, and VDI 50) use standardized dimensions for the shank length, alignment keyway, and serration pitch. This allows users to deploy a single set of Ricon VDI holders across different lathe models.
Our quality assurance process includes spectral material validation to verify the steel chemistry, dimensional checks using CMM equipment, run-out accuracy analysis (with a maximum tolerance of 0.003 mm), and hardness profiling across key surfaces. For driven VDI tools, we also conduct dynamic balancing testing at standard operational speeds to prevent spindle vibration issues.
