Explore our industrial-grade, precision-manufactured boring heads designed for exceptional stiffness and tool life.
Export Countries & Regions
Adjustment Resolution
Inspection & CNC Verified
9001:2015 Quality System
Shandong Ricon Tools Co., Ltd. is a professional manufacturer specializing in the research, development, production, and sales of precision machine tool accessories. Since our inception, we have built a legacy around high-efficiency, sub-micron tooling solutions designed to meet the rigorous standards of global markets.
Through massive capital investments in CNC grinding machinery, coating units, and laser calibration technology, we ensure each micro-boring head operates under optimal dynamic balance parameters and exhibits wear characteristics suitable for high-production environments.
Ricon Tools is committed to providing high-quality tooling solutions for the global metalworking and woodworking industries. Our comprehensive product portfolio includes a wide range of precision machine tool accessories, such as 4-jaw woodworking chucks, American quick-change tool holders, VDI tool holders, precision boring heads, ER collet chucks, milling chucks, drill chucks, and other highly custom CNC tooling accessories.
With years of field-tested experience in machining solutions, we have established long-term partnerships with clients in over 30 countries, including the United States, Canada, Germany, Italy, Russia, Australia, Southeast Asia, the Middle East, and South America. Driven by the philosophy of "Quality First, Innovation Driven, Customer Focused," Shandong Ricon Tools Co., Ltd. continuously invests in material science, metallurgical testing, and multi-axis processing parameters.
An Analysis of Sub-Micron Deflection, Dynamic Balance, and Structural Rigidity in Finishing Cylindrical Cavities
Micro-boring stands at the pinnacle of finishing technologies, representing the ultimate step in producing high-precision, round, and straight internal cylindrical profiles. Unlike drill bits, reamers, or standard circular milling interpolators, a precision adjustable micro-boring head allows machinists to rectify deviations in runout, concentricity, and axial positioning down to sub-micron dimensions.
At high rotational velocities (often exceeding 10,000 RPM in modern CNC centers), the physical forces acting upon a boring bar change dynamically. Centrifugal force, structural compliance, and micro-vibrations can lead to taper, ovality, and poor surface finishes. To counter these challenges, our factory deploys design principles focused on optimized mass distribution and precision-threaded adjustments. The internal mechanism features a high-pitch leadscrew engineered with backlash-elimination systems to ensure that a 0.002mm adjustment on the dial correlates exactly to a 0.002mm displacement of the cutting tip.

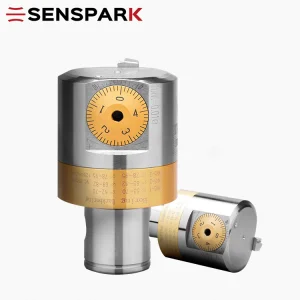

Utilizes vernier dial configurations with direct scaling down to 0.002mm radial adjustments, ensuring tight diameter tolerances under H5-H6 standards.
Engineered to minimize eccentric mass offset during dial displacement, sustaining G2.5 balance class at speeds up to 15,000 RPM.
Features internal carbide-reinforced damping bars designed to dissipate structural harmonics and eliminate chatter during deep-reach boring cycles.
How Micro-Boring Accessories Resolve Structural Engineering Pain Points Across High-Value Sectors
Standard tooling often fails when confronted with the physical properties of superalloys like Inconel 718, Titanium Grade 5, or specialized Cobalt-Chromium medical implants. Machining these materials requires high structural stiffness and efficient thermal dissipation. Shandong Ricon Tools Co., Ltd. configures specialized micro-boring sets that resolve tooling deflection issues common in complex production environments:
Finishing complex actuator housings and landing gear structures where component failure is not an option. Our toolholders match BT40 and HSK-A63 requirements with concentricity under 3μm.
Small-bore surgical instrumentation and orthopedic implant guides require absolute sterility and precise surface finish levels (Ra < 0.2μm). Our micro-boring heads prevent micro-scratches and surface tearing.
High-efficiency internal combustion cylinders and electric vehicle transmission gears demand tight dimensional consistency. We provide customized boring tools that sustain rapid, automated tool changes.
Pioneering Smart Infrastructure, Strategic Material Sourcing, and Process Control for Tooling Components
Operating out of Shandong Province, one of China's most robust industrial zones, Ricon Tools integrates the principles of Industry 4.0 to streamline production and reduce waste. By automating the transition between CNC milling, thermal hardening, and precision cylindrical grinding, we optimize cycle times while reducing manufacturing deviations.
Our vertical supply chain model provides stability against global market disruptions. We control every stage of production—from raw alloy sourcing and heat treatment to final assembly and Swiss-made balancing inspections. This complete integration ensures consistent product performance, shorter lead times, and lower production costs, allowing us to pass significant cost savings to our global partners without compromising technical quality.
Essential Guidelines for Purchasing Departments When Choosing Micro-Boring Systems
Selecting a precision boring head requires balancing tooling lifecycle costs with machining accuracy. For procurement managers, purchasing officers, and toolroom supervisors, we recommend evaluating the following checklist parameters before finalizing tool specifications:
Confirm connection interfaces (BT, HSK, CAT, or Straight shank) match spindle configurations. Precision BT40 and BT30 shanks must exhibit AT3 taper contact area tolerances for maximum rigidity.
High-speed deep-hole finishing operations require internal coolant-through configurations. High-pressure coolant paths clear chips out of the bore, preventing secondary cutter damage.

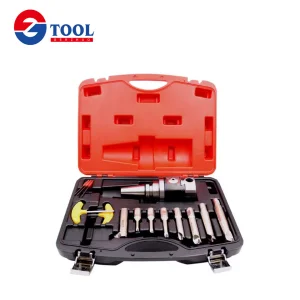

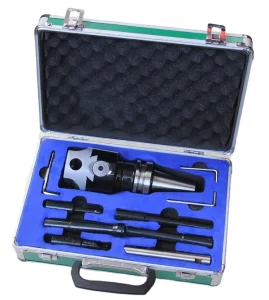

Ensure the system accommodates dynamic diameter extensions. Modular boring toolkits, like our NBH2084 packages, cover micro boring limits and larger diameters through a single adjustable cartridge system.
The Evolution of Digital Tuning Systems, Self-Compensating Balancers, and Advanced Coating Hardness
The manufacturing industry is shifting rapidly toward automated, digital environments. High-precision tooling must keep pace. Our R&D team at Ricon Tools is focused on integrating digital electronics with traditional micro-boring components. The next generation of boring systems features Bluetooth-integrated digital micro-boring heads. These tools display radial displacement measurements on an external device, reducing operator set-up errors.
Additionally, we are exploring self-balancing counterweights that automatically adjust as the cutting head is dialed outwards. This development keeps dynamic imbalance low at high speeds. We are also testing new CVD/PVD coatings like Titanium Aluminum Silicon Nitride (TiAlSiN), designed to resist heat and extend tool life when machining hard materials over 60 HRC.
Providing Global Compliance, Reliable Logistics, and Responsive Technical Support
Exporting to more than 30 regions requires strict adherence to international trade guidelines. Shandong Ricon Tools ensures full compliance with ISO 9001:2015 quality standards, CE directives, and REACH/RoHS material regulations. We understand that international buyers require dependable supply lines and clear technical documentation.
To maintain reliable service, we work with global freight providers to ensure timely delivery of custom or wholesale orders. We offer complete technical documentation, including 3D CAD step files, parameter tables, and material certificates, ensuring our tooling integrates smoothly into your local CNC programs and inventory systems.
Technical Inquiries and Operational Best Practices for High-Precision Micro-Boring Heads
Rough boring heads typically use dual-cutter cartridges to remove material quickly, focusing on raw metal removal rates. A micro-boring head uses a single cutter with a precision adjustment system (often down to 0.002mm resolution) to control hole diameter and surface finish during the final pass.
We recommend using anti-vibration carbide boring shanks instead of standard tool steel when the length-to-diameter ratio exceeds 5:1. Additionally, using inserts with a smaller nose radius (such as 0.2mm or 0.1mm) and optimized cutting geometries helps reduce radial cutting forces.
Yes, our high-precision boring heads are designed with built-in coolant passages. These direct the coolant straight to the insert tip, which cools the cutting edge, improves surface finish, and clears chips from the bore.
Our adjusting mechanisms feature a spring-loaded anti-backlash system. When adjusting tool diameter, it is best practice to turn past your target and dial back, or make adjustments in one direction to ensure the system is seated securely.
Yes, we provide full OEM and ODM services. We customize shank configurations, tool geometries, and boring kits to meet specific production line requirements. Please share your engineering drawings or application data with our team to get started.
PCD inserts are ideal for non-ferrous materials like aluminum, copper, and fiberglass. CBN inserts should be used for hard ferrous metals like hardened tool steels (above 45 HRC), cast iron, and high-temperature superalloys.

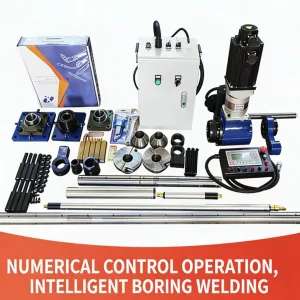

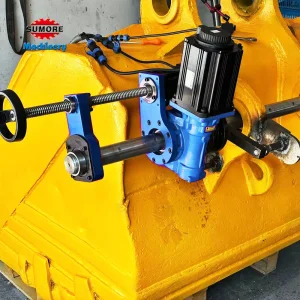

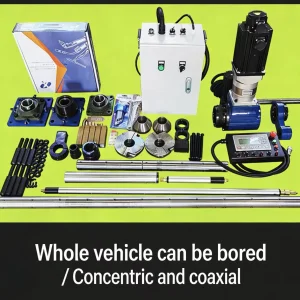

Explore our complete range of boring systems, tool sets, and portable line boring machines.
