Select from our premium lineup of high-precision manual and pneumatic independent chuck designs engineered for CNC systems, lathes, and custom laser processing machinery.

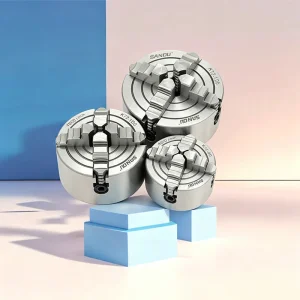

Unlike standard three-jaw self-centering chucks, independent 4-jaw chucks (K72 & K12 series) operate using four single-action jaws. Each jaw is configured with an independent adjustment screw, enabling operators to achieve absolute alignment accuracy. This layout allows for the precise centering of irregular geometries, square components, rectangular cross-sections, and eccentric components.
For operations demanding strict concentricity, manual single-action jaw adjustments enable the compensation of raw component deviations down to the micrometer level. Ricon Tools implements premium-grade engineering cast iron (such as HT300) for the chuck housing to maximize dampening characteristics, alongside carbon alloy steel (40Cr or similar high-tensile grades) for the jaws to resist deformation during heavy load operations.

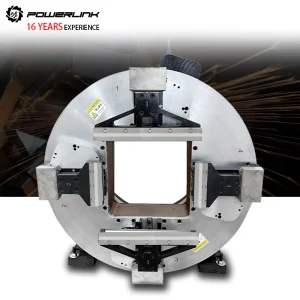

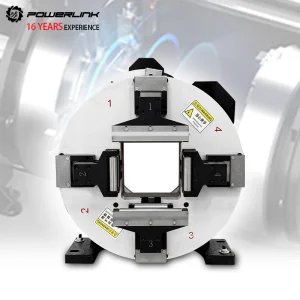

In modern manufacturing environments, particularly laser pipe cutting, manual clamping represents a major cycle time bottleneck. To address this, Ricon Tools has engineered advanced Pneumatic 4-Jaw Laser Chucks. These units utilize integrated air channels to actuate jaws automatically.
These pneumatic systems provide rapid clamping and releasing, designed to feed structural geometries such as circular pipes, square tubes, rectangular beams, H-beams, and triangular piping profiles without manual setup intervention. Advanced built-in rotary valve structures support sustained high-speed rotation, preventing pressure loss during machining operations.
The structural rigidity of a lathe chuck determines the mechanical deflection limit of the machining workpiece. When handling heavy-duty industrial castings or forging blanks, the asymmetric weight distributions exert considerable centrifugal force on the chuck jaws. By utilizing a 4-jaw independent configuration, the clamping configuration is distributed across four distinct contact regions, lowering localized component stress and decreasing jaw deflection during heavy-duty turning runs.
Ricon Tools' engineering department customizes 4-jaw clamping assemblies for core industrial applications globally, ensuring process repeatability and minimized machine down-time.
In structural steel manufacturing, materials are not limited to round pipes. Components such as H-beams, U-channels, triangular tubes, and custom extrusion shapes require safe clamping during high-speed laser cutting. Our specialized Pneumatic Rotary Front Main Chucks ensure consistent clamping force without deformational damage on thin-walled structural geometries.

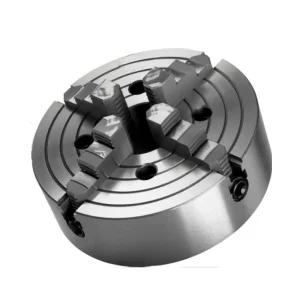

Large valve components, pump flanges, and drilling couplers frequently feature irregular casting boundaries. Standard self-centering chucks struggle to hold these parts securely. A manual K72 4-Jaw Independent Chuck allows machine shops to realign and center asymmetrical castings, ensuring precise seal fits and threaded connections.

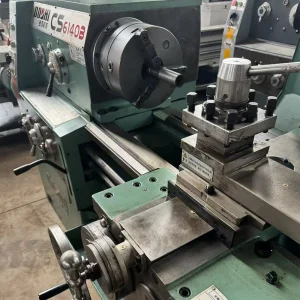

Job shops require versatile tooling setups. By utilizing MT2/MT3/MT4/MT5 shank 4-jaw independent configurations, operators can configure small lathe systems to clamp square bar stocks or perform eccentric turning operations on short-run custom components without requiring specialized custom fixtures.
Shandong Ricon Tools Co., Ltd. operates a modern production facility in Shandong, China, integrating advanced metalworking machinery and quality control practices. Our investment in Factory 4.0 automation ensures that each chuck body is precision-ground on dedicated multi-axis CNC centers, minimizing setups and dimensional variations.
Our vertical integration supports consistent quality control at every stage. We manage our processes directly, from raw cast iron tempering and heat-treating alloy steels for chuck jaws, to fine-tolerance grinding and balancing. This structure helps minimize typical supply chain disruptions and ensures high mechanical reliability.
Through active capacity management, automated storage, and streamlined logistics, we maintain inventory levels of core manual chucks (such as K72-80 to K72-500 series) and pneumatic laser chuck lines. This setup supports reliable supply timelines for international machinery builders and tool distribution networks.
Shandong Ricon Tools Co., Ltd. is a professional manufacturer specializing in the research, development, production, and sales of precision machine tool accessories. Since its establishment, Ricon Tools has been committed to providing high-quality tooling solutions for the global metalworking and woodworking industries.
Our product portfolio includes a wide range of precision machine tool accessories, such as 4-jaw woodworking chucks, American quick-change tool holders, VDI tool holders, boring heads, ER collet chucks, milling chucks, drill chucks, tool holders, CNC tooling accessories, and other precision machining components. Our products are widely used in CNC machining centers, lathes, milling machines, woodworking machinery, and various industrial manufacturing applications.
To ensure consistent product quality and manufacturing efficiency, Ricon Tools has invested in advanced CNC machining equipment, precision grinding machines, inspection instruments, and automated production facilities from both domestic and international suppliers. Supported by an experienced technical team and a strict quality management system, every product is manufactured with high precision, excellent durability, and reliable performance to meet the demanding requirements of customers around the world.
With years of experience in the machine tool accessories industry, Ricon Tools has established long-term partnerships with customers across numerous industries. Our products are well recognized in the domestic market and are exported to more than 30 countries and regions, including the United States, Canada, Germany, Italy, Russia, Australia, Southeast Asia, the Middle East, and South America. We have earned an excellent reputation for superior quality, competitive pricing, on-time delivery, and professional customer service.
Driven by the philosophy of "Quality First, Innovation Driven, Customer Focused," Shandong Ricon Tools Co., Ltd. continuously invests in technological innovation, product development, and manufacturing excellence. We are dedicated to providing customers with reliable products, customized solutions, and comprehensive technical support. Looking ahead, Ricon Tools will continue to strengthen its global presence, pursue continuous innovation, and create greater value for customers worldwide. We sincerely welcome partners from around the world to establish long-term cooperation and achieve mutual success.
As manufacturing trends shift towards tighter tolerances and automated process control, the demands on workpiece holding systems continue to evolve. Shandong Ricon Tools Co., Ltd. focuses its product development on three key areas:
We are researching real-time clamping force telemetry. Future chuck models will feature embedded force transducers, transmitting clamping data wirelessly to the machine's central CNC unit to prevent workpiece slippage and deformation during rotation.
Our coating R&D team is implementing advanced vapor deposition finishes for critical sliding channels. This process reduces operational friction and enhances wear resistance, extending service intervals in wet or high-abrasion environments.
With modern machinery operating at higher RPMs, we have updated our dynamic balancing standards. This helps minimize vibration-induced surface finishes on large workpieces, helping shops improve part quality.
For B2B procurement professionals, identifying a reliable industrial chuck manufacturer requires verifying specific structural and material parameters. Shandong Ricon Tools provides transparent specifications to simplify the procurement evaluation process.
Our quality assurance lab verifies that every batch of independent 4-jaw chucks meets standard dimensional criteria before packaging. If customized adapters, backing plates, or special jaw shapes are required, our engineering team can produce matching components from customer CAD drawings.
Our products conform to major European and American manufacturing regulations. We provide documentation for CE conformity, ISO 9001:2015 certifications, and standard DIN machinery alignments to support integration into existing lines.
To reduce operational downtime, Ricon Tools supplies replacement component kits—including replacement jaws, independent adjustment screws, and custom back plates—directly to partner distributors globally.
For custom manufacturing requirements, our engineers design custom pneumatic configurations, custom mounting spindles, and specialized jaws. This service is available for low to mid-volume specialty equipment lines.

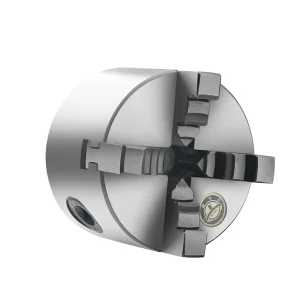

A K11 series self-centering chuck features jaws that move in unison via an internal scroll gear, making it suitable for round or hexagonal stock. A K72 independent chuck has jaws that adjust individually. This allows the operator to set up irregular or offset geometries and adjust alignment down to high precision levels.
Pneumatic 4-jaw chucks allow for automated loading and unloading of tube stock. They accommodate round, square, rectangular, and asymmetrical profile shapes (like H-beams and D-tubes) without requiring jaw changes between runs, helping to increase throughput in laser cutting systems.
We recommend regular cleaning to remove metal chips and swarf from the guideways and adjustment screws. Apply a dedicated machine tool grease to the jaw tracks and drive screws daily under heavy use to prevent premature wear and keep concentricity within standard limits.
Yes. We supply 4-jaw chucks configured with a range of back mounting plates, including direct mounts and Morse Taper (MT2, MT3, MT4, MT5, MT6) configurations to fit different lathe spindle styles.
