70 mm - 4 Jaws Independent Chuck with Back Plate & T-nuts for Milling
High Precision - Superb Quality! Suitable to mount on 3" (75 mm) & 4" (100 mm) Rotary Tables (4 Slots). Designed to fit our 3 or 4" rotary table 4 slots. The chuck mounting is standard Uni-mat Thread M14 x 1.

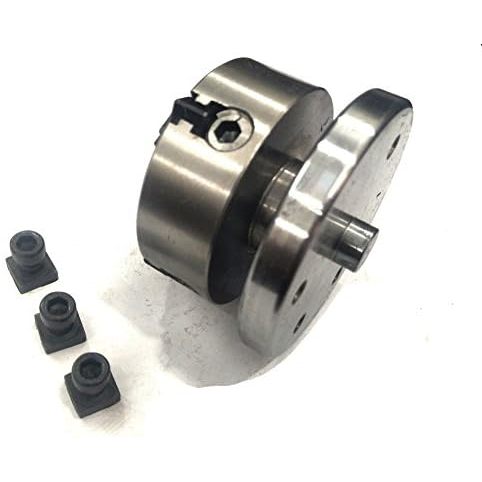

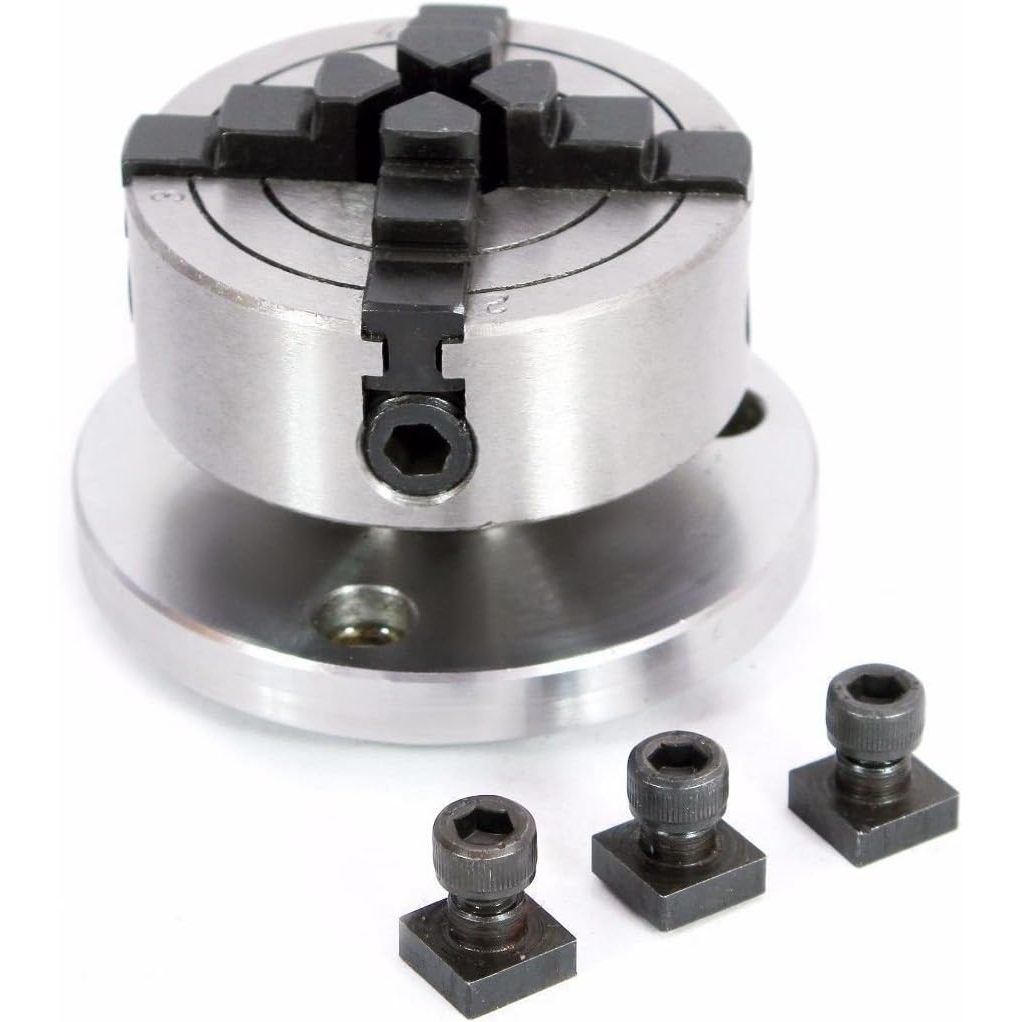

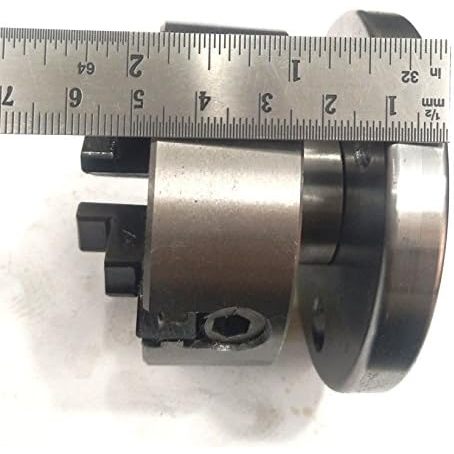

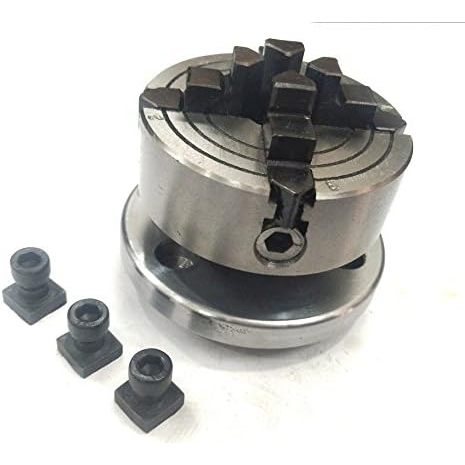

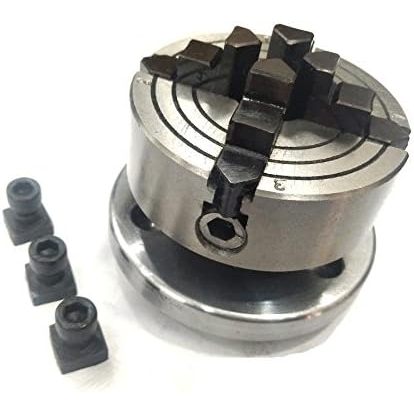

70 mm 4-Jaw Independent Chuck with Back Plate & T-Nuts for Milling Machines
This high-precision 70 mm 4-jaw independent chuck is designed for use in milling machines, offering reliable and accurate workpiece holding. Constructed from durable cast iron body and tool alloy steel jaws, it ensures long-lasting performance and excellent clamping strength. The included back plate and T-nuts provide enhanced stability and ease of installation, making it ideal for a wide range of machining applications.
Core Features
Independent Jaw Adjustment: Each jaw can be adjusted individually, allowing for precise centering of irregular or non-circular workpieces.
Robust Material Construction: Made from cast iron body and tool alloy steel, ensuring durability and resistance to wear under heavy-duty conditions.
Compatibility: Designed for milling machines with M14 thread size, providing seamless integration into existing setups.
Manual Clamping System: Simple and effective manual operation enables quick setup and adjustment without the need for additional power tools.
Complete Kit Included: Comes with a back plate and four T-nuts, ensuring all necessary components are ready for immediate use.
Reasons to Choose
Precision Machining: Ideal for achieving tight tolerances in metalworking tasks such as drilling, boring, and milling.
Versatility: Suitable for both round and irregular-shaped parts due to independent jaw control.
Professional Grade: Built to meet the demands of industrial and workshop environments with consistent performance.
Ease of Use: Straightforward design allows for fast mounting and secure clamping, improving overall workflow efficiency.
Specifications
Attributes
Details
Number of Jaws
4
Compatible Devices
Milling Machine
Product Outer Diameter
70 mm
Item Diameter
70 Millimeters
ASIN
B01MS8G6HN
Material
Cast Iron Body & Tool Alloy Steel
Chuck Type
Lathe Chuck
Thread Size
M14
Best Sellers Rank
2521518 in Tools Home Improvement
Application
Milling Machine
Clamping Method
Manual Clamping
Power
Manual
Frequently Asked Questions
What are the main construction materials of this chuck?
The chuck is constructed with a high-durability cast iron body and tough tool alloy steel jaws, engineered to resist wear under heavy milling operations.
Can each jaw of this 4-jaw chuck be adjusted independently?
Yes, this is an independent chuck. Each of the four jaws can be adjusted separately, which is ideal for securing irregular, rectangular, or non-circular workpieces precisely.
What sizes of rotary tables is this chuck compatible with?
This chuck is specifically designed to mount securely onto standard 3-inch (75 mm) and 4-inch (100 mm) rotary tables with 4 slots.
What is the mounting thread size of the chuck?
The chuck features a standard M14 x 1 mounting thread, ensuring broad compatibility with corresponding spindles and setups.
Does it come with fixing accessories?
Yes, the package includes the compatible back plate and a set of T-nuts, providing all the necessary components for immediate mounting.
Does this chuck require power to operate?
No, this chuck operates via a manual clamping method. It offers quick, straightforward manual adjustments without the need for external power sources.
