Explore our elite selection of CNC tool holding solutions and high-vibration resistant self-locking components manufactured under rigorous quality control guidelines.
Understanding critical engineering principles that prevent structural failure under intense vibration and extreme rotational forces.
In modern industrial applications, traditional friction-based fastening and clamping mechanisms often fail under high vibration, dynamic loads, and repetitive cycling. Wedge-lock chucks and self-locking washers leverage a fundamental shift in locking physics: they utilize tension instead of friction to maintain joint integrity.
The system operates on the principle of the wedge. The cam angle (α) of the wedge components is greater than the thread pitch (β) of the bolt or mating thread. When dynamic loading causes joint movement, the mating surfaces are forced to slide against the large cams. Because α > β, the wedge-locking expansion effect creates an increase in clamp force, effectively locking the assembly in place. This self-locking response mitigates the risk of spontaneous loosening in high-speed CNC operations, structural formwork, and heavy transportation systems.
By implementing this mechanism in high-precision chucks and collets, Shandong Ricon Tools ensures that tooling components remain completely concentric and secure, decreasing surface runout (T.I.R.) and extending the operational lifespan of expensive cutting tools.

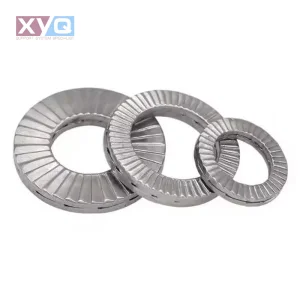

The international standard DIN 25201 specifies testing standards and engineering guidelines for wedge-locking washers and vibration-proof mechanical joints. Our systems undergo rigorous Junker vibration testing (in accordance with DIN 65151) to verify that clamp force remains steady even under severe harmonic oscillation. Selecting certified DIN 25201 components guarantees peace of mind for critical operations in high-speed rail, wind turbines, and aerospace engineering.
How Shandong Ricon Tools integrates vertical supply chain efficiencies, metallurgy expertise, and advanced finishing technologies to deliver world-class products.
By operating inside China’s primary industrial manufacturing hubs, we source high-grade raw alloys directly from top-tier domestic foundries. This includes premium 304/316 Austenitic Stainless Steels, Carbon Steel, 2507 Super Duplex Steel, and Hastelloy C-276. Our in-house heat treatment processes achieve uniform hardness, yielding high tensile strengths and robust durability values.
Corrosion protection is vital to extend the service life of tool assemblies. Ricon Tools operates specialized surface coating facilities featuring Dacromet, Geomet, and Zinc Flake treatments. These techniques yield excellent corrosion resistance without inducing hydrogen embrittlement, keeping your wedge-locking washers operational even after 1000+ hours of continuous salt spray testing.
Our localized supply chain structures and optimized CNC automation permit us to design bespoke tooling shims (down to 0.01mm) and custom-diameter components at competitive price points. From small-batch customized OEM washers to bulk shipments of high-precision BT40 and ER32 tool holders, we offer optimal cost-to-performance metrics for global procurement agents.
How our structural wedge locking clamping technology maintains process security across diverse industrial ecosystems.
During heavy concrete pouring and structural erection, formwork clamping systems are subject to continuous hydraulic pulsing and vibratory forces. Standard fasteners fail rapidly, leading to mold shifting. Incorporating double-fold self-locking wedge-lock components prevents slippage, safeguarding operators and maintaining structural design limits.
Rail joints, bogies, and brake systems undergo high-vibration stress cycles. Traditional locknuts lose preload force over time, demanding continuous manual maintenance. Our DIN 25201 compliant stainless steel dual-stacked wedge lock systems maintain strict preload values, drastically reducing downtime and maintenance costs for transport agencies globally.

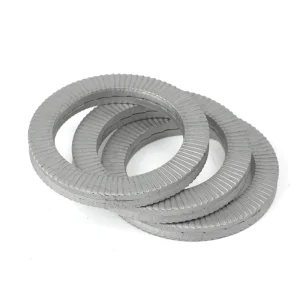

Offshore wind farms are exposed to severe atmospheric corrosives and massive dynamic loads. Utilizing Dacromet-coated carbon steel and super duplex stainless steel wedge lock washers ensures that critical blade-to-hub and structural tower joints stay locked securely despite variable wind shear forces and salty spray environments.
High-speed milling spindles rotating at 24,000+ RPM generate harmonic resonance. The slightest runout or loosening can damage the workpiece, break carbide cutters, or ruin the spindle. Our ER collets, SK tool holders, and wedge-lock style shims are dynamically balanced to deliver precision tolerances under heavy-duty milling applications.
Technical information and expert guidance regarding installation, engineering limits, and selection criteria for wedge-lock systems.
A trusted global manufacturer specializing in high-precision tool holders, mechanical fastening systems, and CNC accessories.
Shandong Ricon Tools Co., Ltd. is a professional manufacturer specializing in the research, development, production, and sales of precision machine tool accessories. Since its establishment, Ricon Tools has been committed to providing high-quality tooling solutions for the global metalworking and woodworking industries.
Our extensive product portfolio includes 4-jaw woodworking chucks, American quick-change tool holders, VDI tool holders, boring heads, ER collet chucks, milling chucks, drill chucks, tool holders, CNC tooling accessories, and other precision machining components. Our products are widely used in CNC machining centers, lathes, milling machines, woodworking machinery, and various industrial manufacturing applications.
To ensure consistent product quality and manufacturing efficiency, Ricon Tools has invested in advanced CNC machining equipment, precision grinding machines, inspection instruments, and automated production facilities from both domestic and international suppliers. Supported by an experienced technical team and a strict quality management system, every product is manufactured with high precision, excellent durability, and reliable performance to meet the demanding requirements of customers around the world.
Driven by the philosophy of "Quality First, Innovation Driven, Customer Focused," Shandong Ricon Tools Co., Ltd. continuously invests in technological innovation, product development, and manufacturing excellence. We are dedicated to providing customers with reliable products, customized solutions, and comprehensive technical support. Looking ahead, Ricon Tools will continue to strengthen its global presence, pursue continuous innovation, and create greater value for customers worldwide.
Complete your structural setups and machine assemblies with our specialized vibration-damping locking systems.
