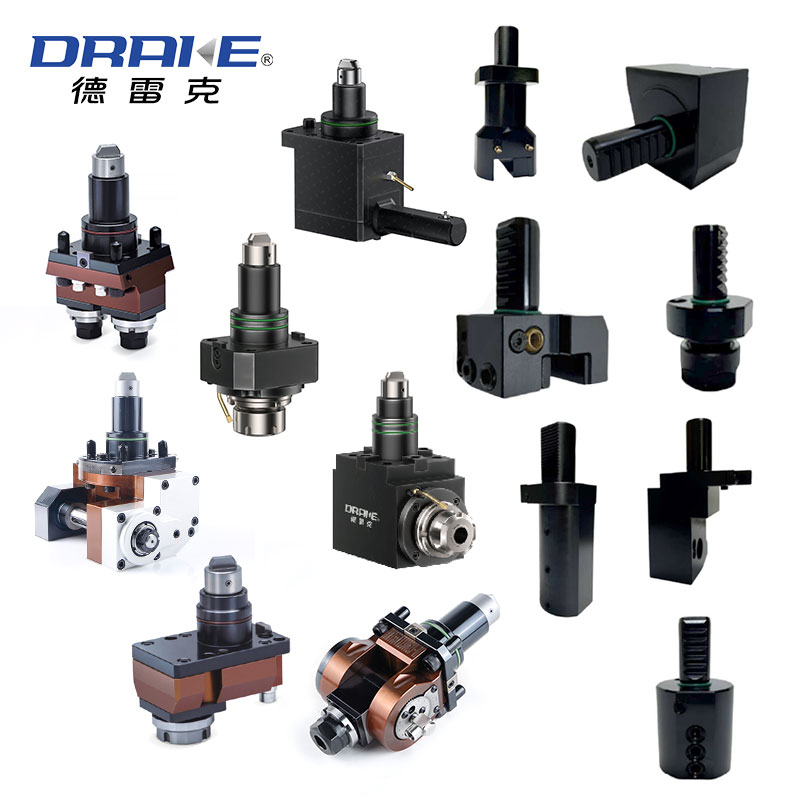

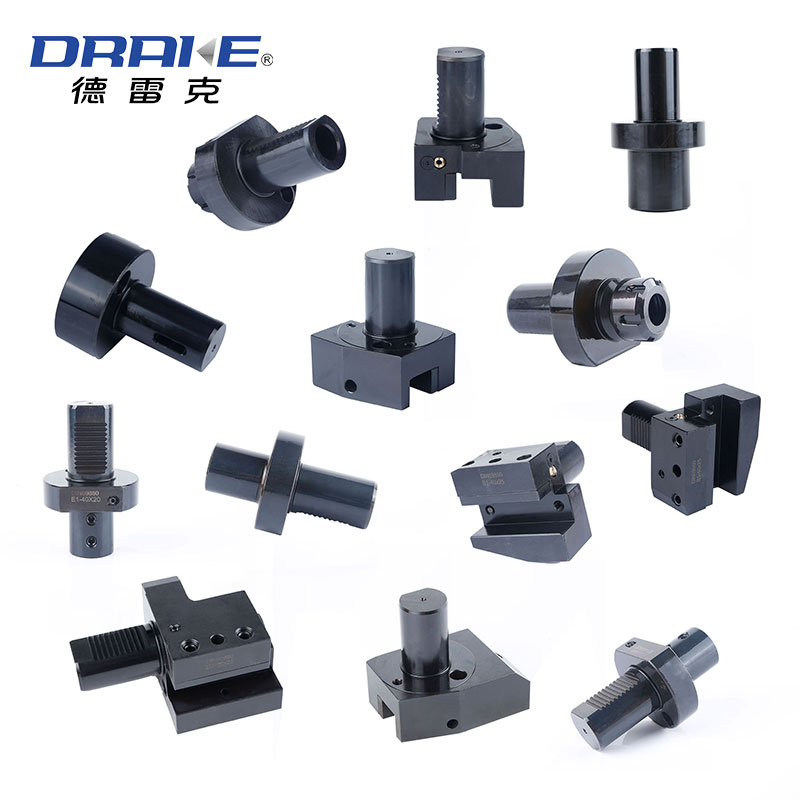

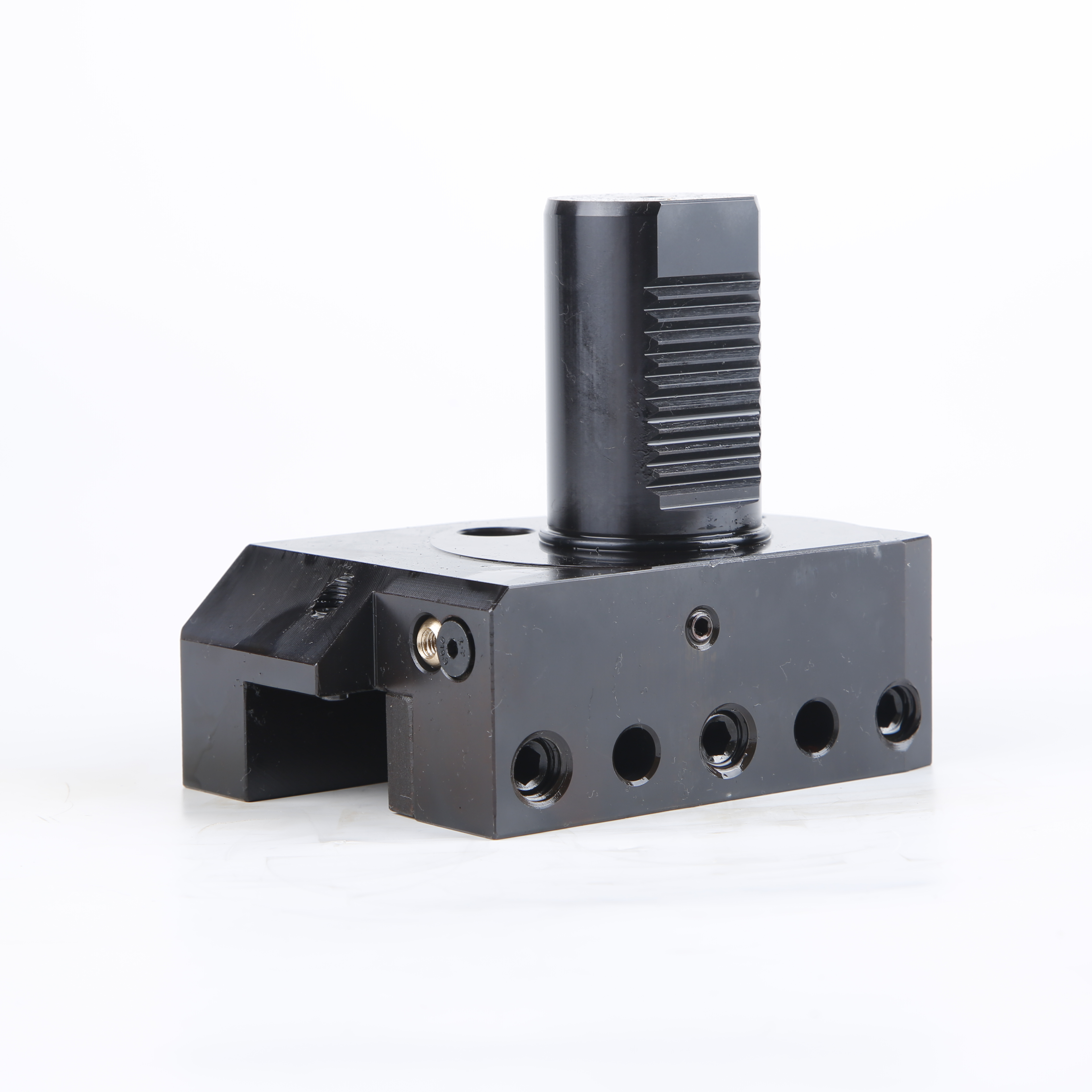

China Factory VDI Radial Tool Holder B1/B2/B3/B4/C1/C2/C3/E1/E2/E3/E4 Type VDI30 VDI 40 for CNC Machine B6 VDI Tool Holder

Product Description

VDI Tool Holders Banner

VDI Technical Information

  • All tool holders are manufactured according to DIN 69880.
  • Cylindrical shank’s tolerance-according to the class IT6(h6).
  • Each holder is fully case hardened.
  • Surface hardness of 58 +2 HRC.
  • Core strength in excess of 1000 N/mm².
  • Shaft, serration, seating face, locating bore, clamp plate or locator bore, are ground.
  • Adjustable any time to the next lower cutter height.
  • Position of cutter in tool holder adjustable using two stop screws.
  • Spring-mounted pressure plates for clamping cutter in the exact position.
  • Internal coolant supply through ball nozzles featuring quick and precise adjustment with new type of clamp fixture.
  • As defined in DIN 69 880 the holders are equipped with an undercut at shaft sealing face to accommodate a sealing ring. The sealing ring is optional.
VDI Tool Holder Dimension Specifications

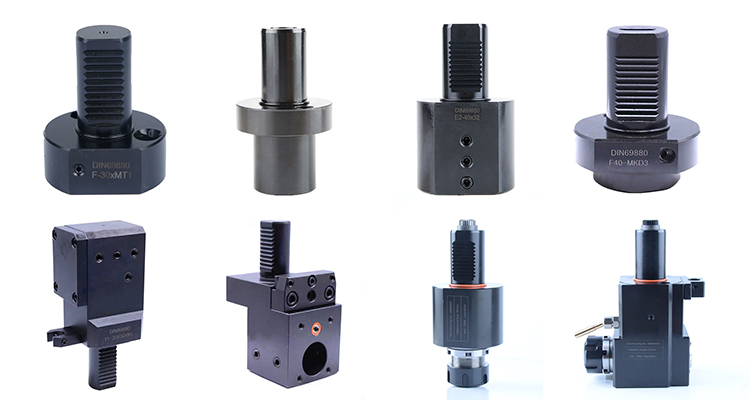

VDI Tool Holder Side Profile

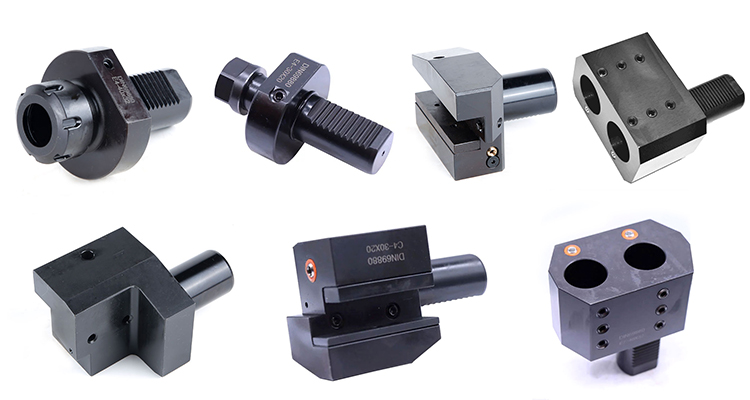

VDI Tool Holder Cross Section

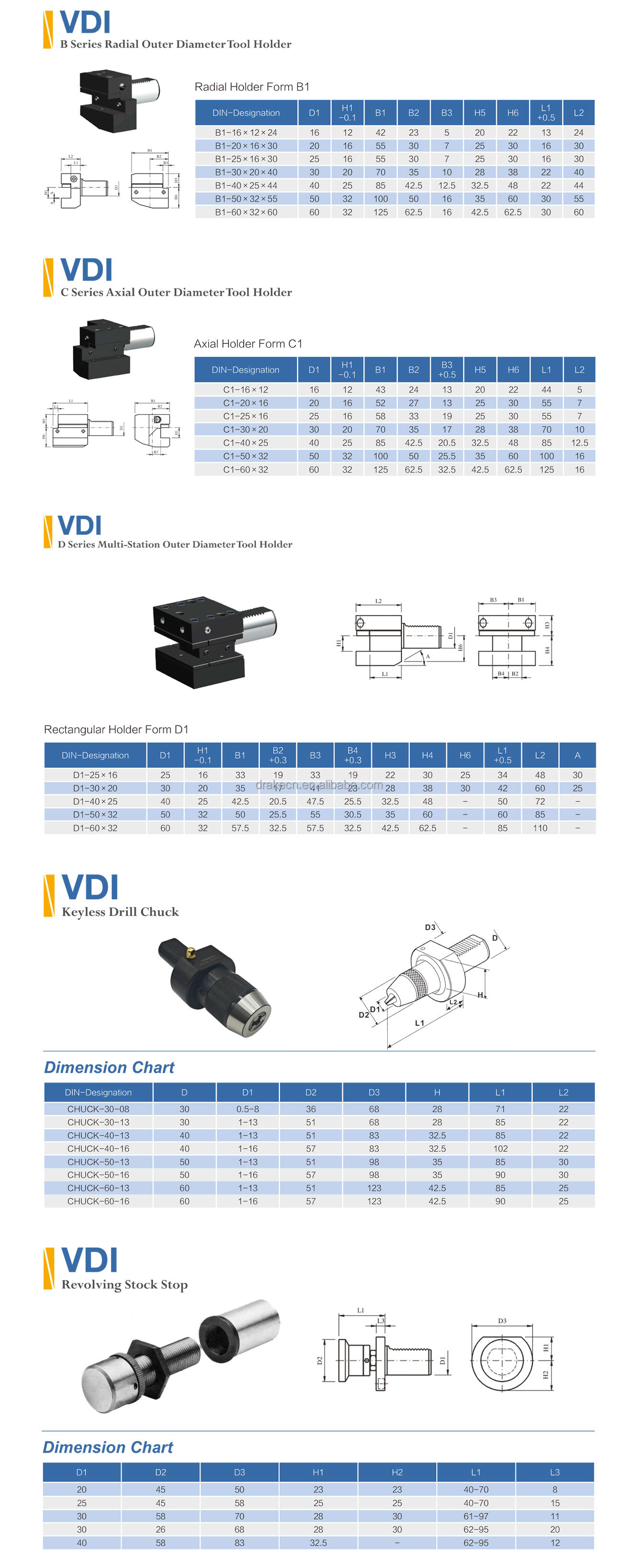

VDI Tool Holder Model Type A

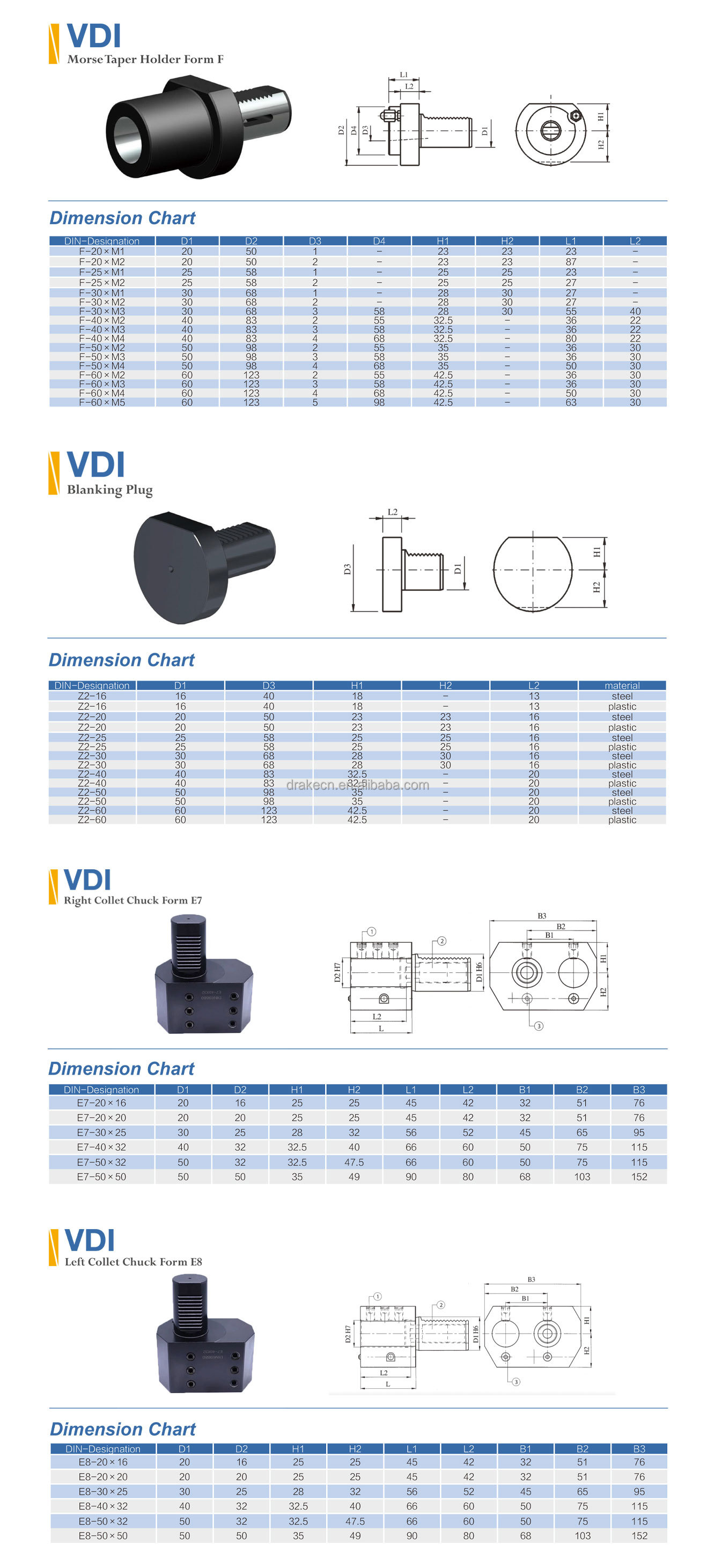

VDI Tool Holder Model Type B

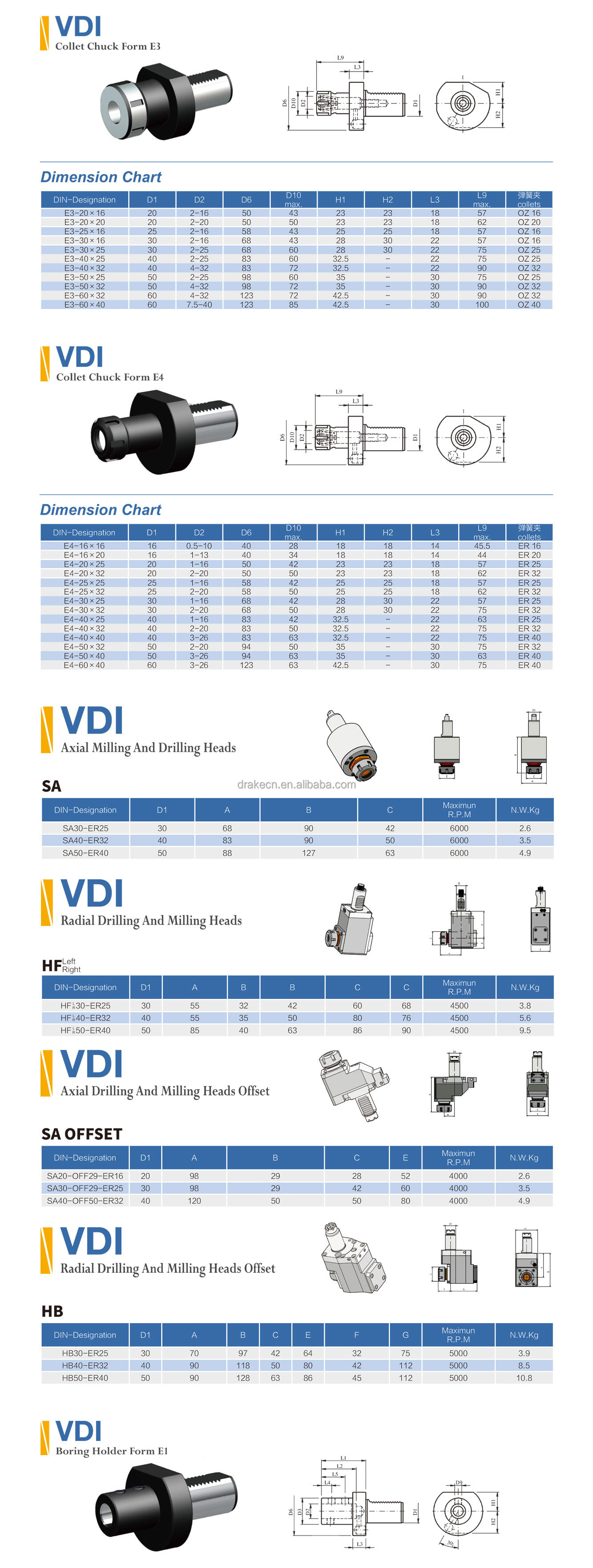

VDI Tool Holder Model Type C

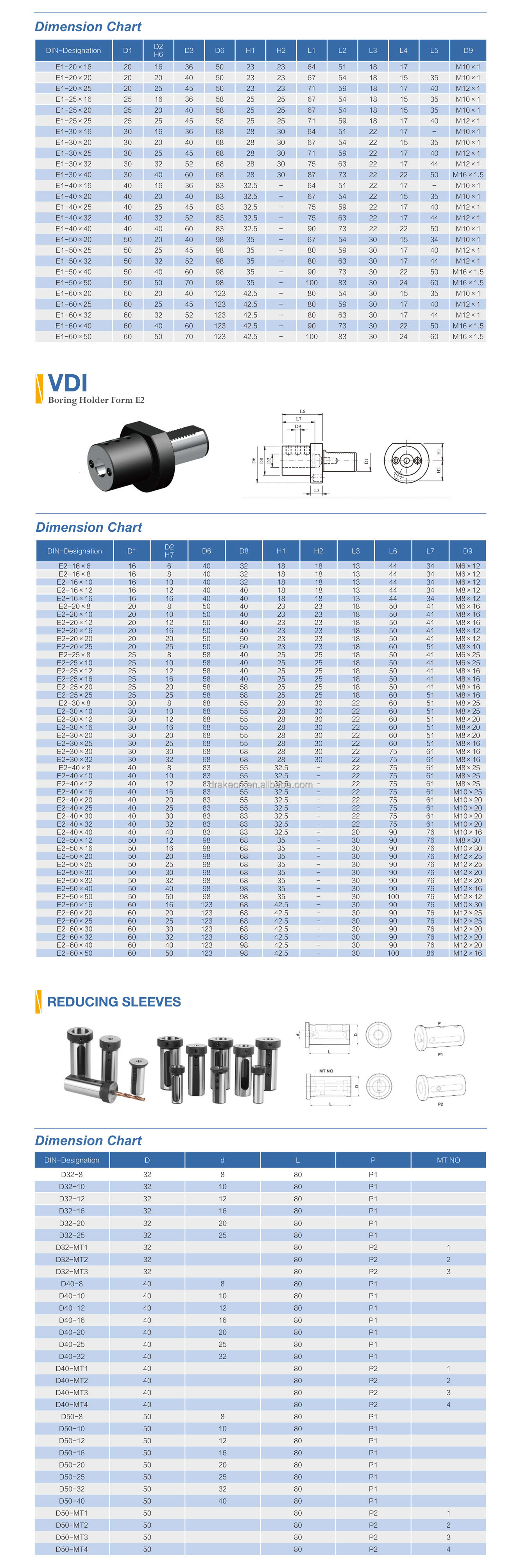

VDI Tool Holder Model Type D
VDI Accessories Component View

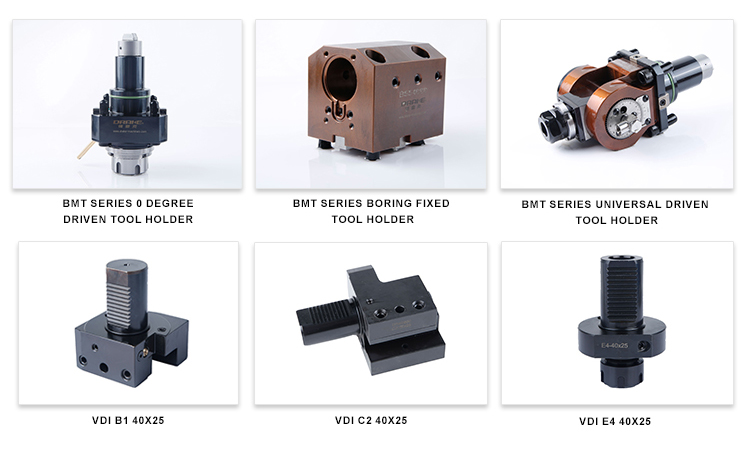

VDI Connection Chuck Detail
VDI Collet Chuck System

Terms & Customization Guidelines

1

Customization

The price on the page does not include logo customization, packaging customization, and any other customizations.

2

Exchange Rate

The price is based on a USD / CNY exchange rate of no less than 7. If the exchange rate fluctuates, the price will be changed accordingly.

3

Material Pricing

Due to raw material price changes from time to time, we reserve the right to adjust the quote to reflect actual raw material costs at the time of quotation.

4

Delivery Terms

The price is based on Incoterms EXW and is valid for exporting transactions only.

5

Picture Reference

The images on this page serve as product references. Actual transactions depend on your customization requirements and mutually agreed final sample confirmations.

Frequently Asked Questions

What standard are the VDI tool holders manufactured to?

All VDI tool holders are manufactured strictly according to the DIN 69880 standard to ensure international compatibility and precision performance.

What is the surface hardness and core strength of these tool holders?

The VDI tool holders feature a fully case-hardened build with a surface hardness of 58 +2 HRC and a core strength exceeding 1000 N/mm².

Is customization included in the standard listed prices?

No, the prices on our product pages are standard rates. Logo modifications, custom packaging, and other bespoke configurations are subject to additional customization fees.

How do exchange rates affect the quoted pricing?

Our prices are calculated using a baseline USD / CNY exchange rate of 7. If exchange rates fluctuate beyond this threshold, pricing updates may be applied.

What shipping terms apply to your product quotations?

All standard rates are quoted based on EXW (Ex Works) terms and are specifically intended for export transactions.

Do the displayed online pictures match the final delivered product exactly?

The website images represent standard reference designs. The exact look, layout, and technical specs will correspond directly to your customized requirements and the final approved sample.
