Smtcl Tpx6111b Horizontal Boring Bar Machine Boring Head for Milling Machine

1 / 5

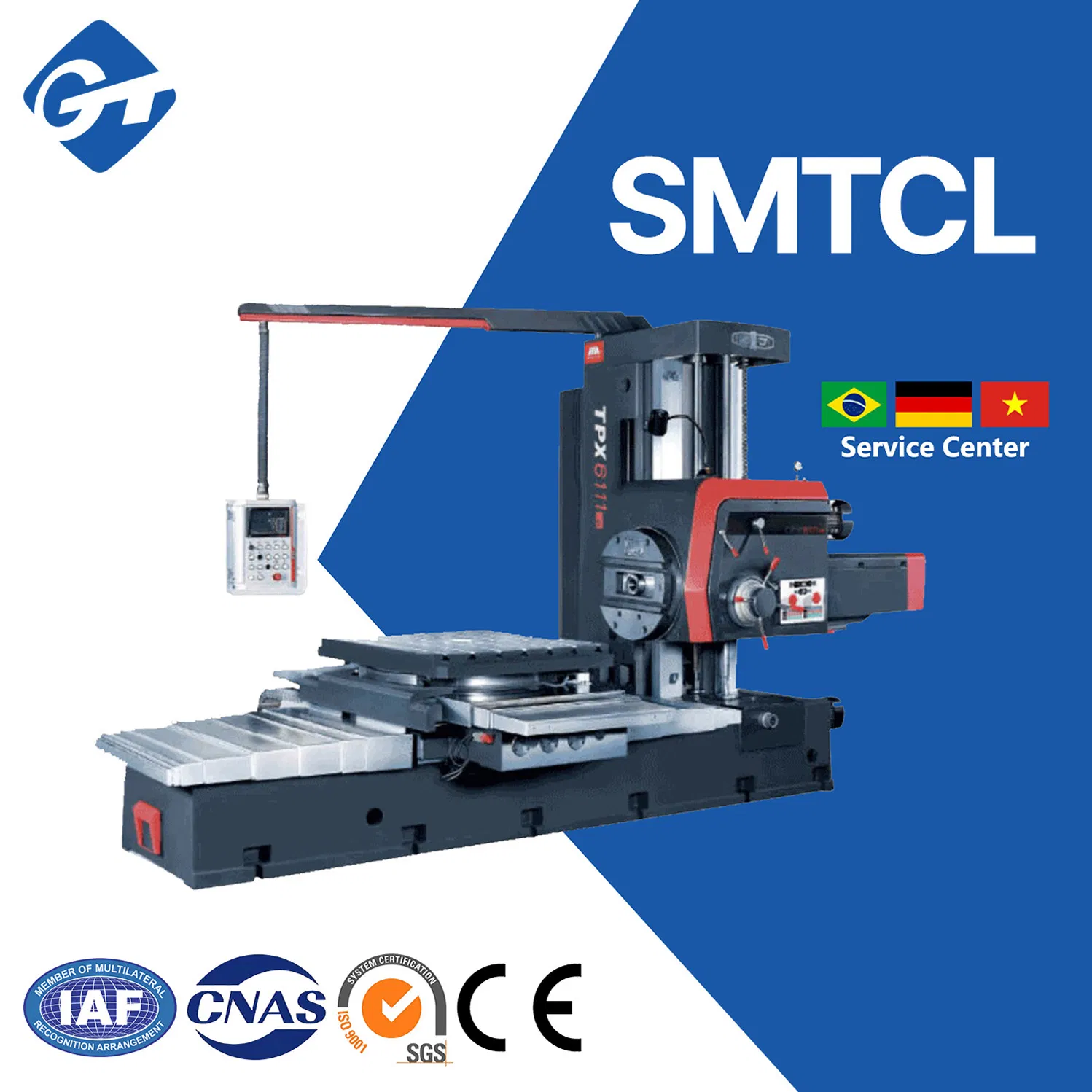

Smtcl Tpx6111b Horizontal Boring Bar Machine Boring Head for Milling Machine

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.TPX6111B

StructureHorizontal Boring Machine

Coordinate Boring Machine TypeHorizontal Type

Tool TypeFine Knife

Controlling ModeCNC

PrecisionHigh Precision

Automatic GradeAutomatic

CertificationCE, ISO 9001

ConditionNew

Diameter110mm

TaperMorse No6 (ISO7:24no50)

Max Torque1225n.M

Max Axial Thrust12250n

Speed Settings22

Speed Range8-1000 R/Min

Main Motor Power7.5kw

Transport PackageStandard Packaging or Customized

SpecificationStandard Specifications or Customized

OriginChina

HS Code8459490000

Production Capacity100

Packaging & Delivery

Package Size5000.00cm * 2500.00cm * 2800.00cm

Package Gross Weight11500.000kg

Lead Time 100 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)

Product Description

Designed for machining large components in heavy industrial environments

Optimized machine layout ensures precise spindle and worktable alignment

Boring spindle delivers strong torque for deep hole and heavy cutting

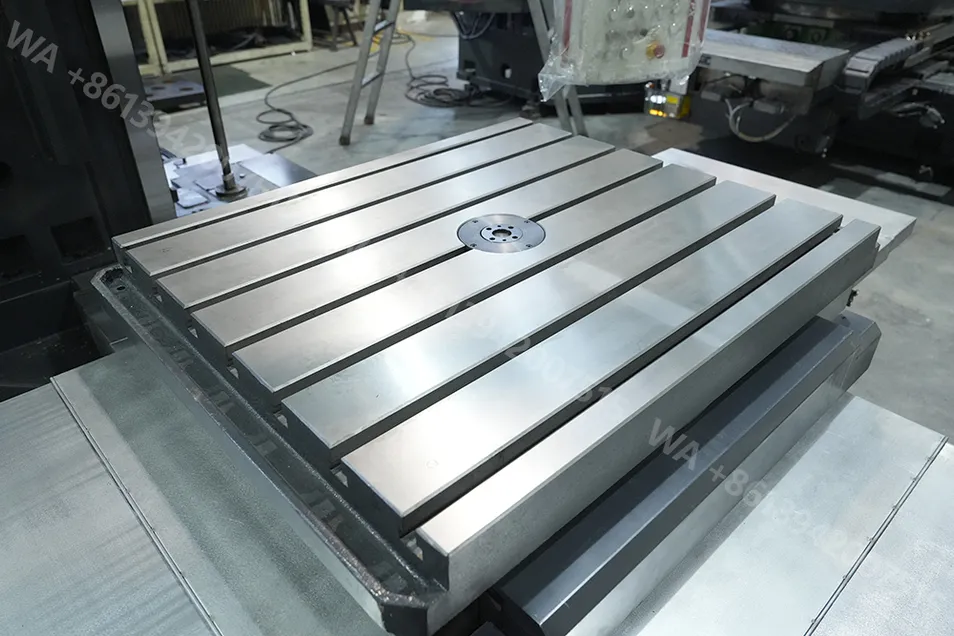

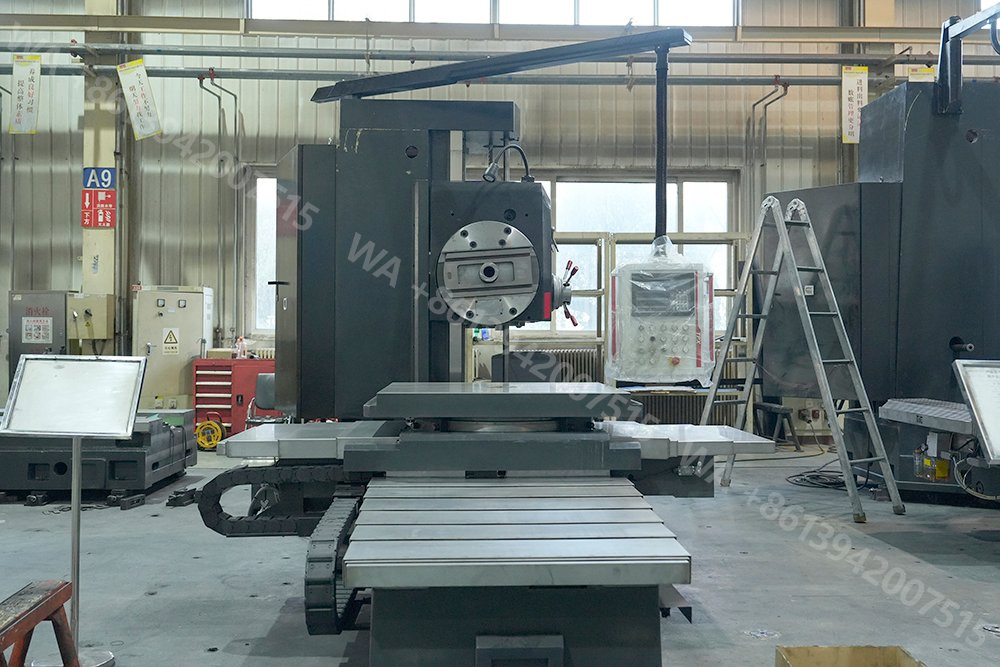

Large worktable supports heavy workpieces with flexible positioning

Digital control improves positioning accuracy and efficiency

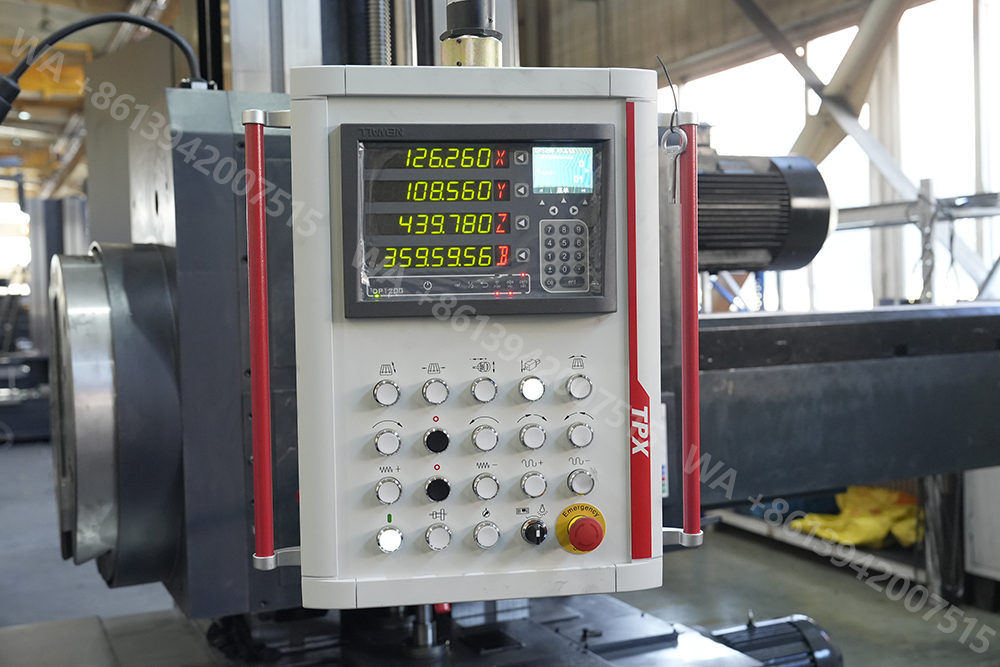

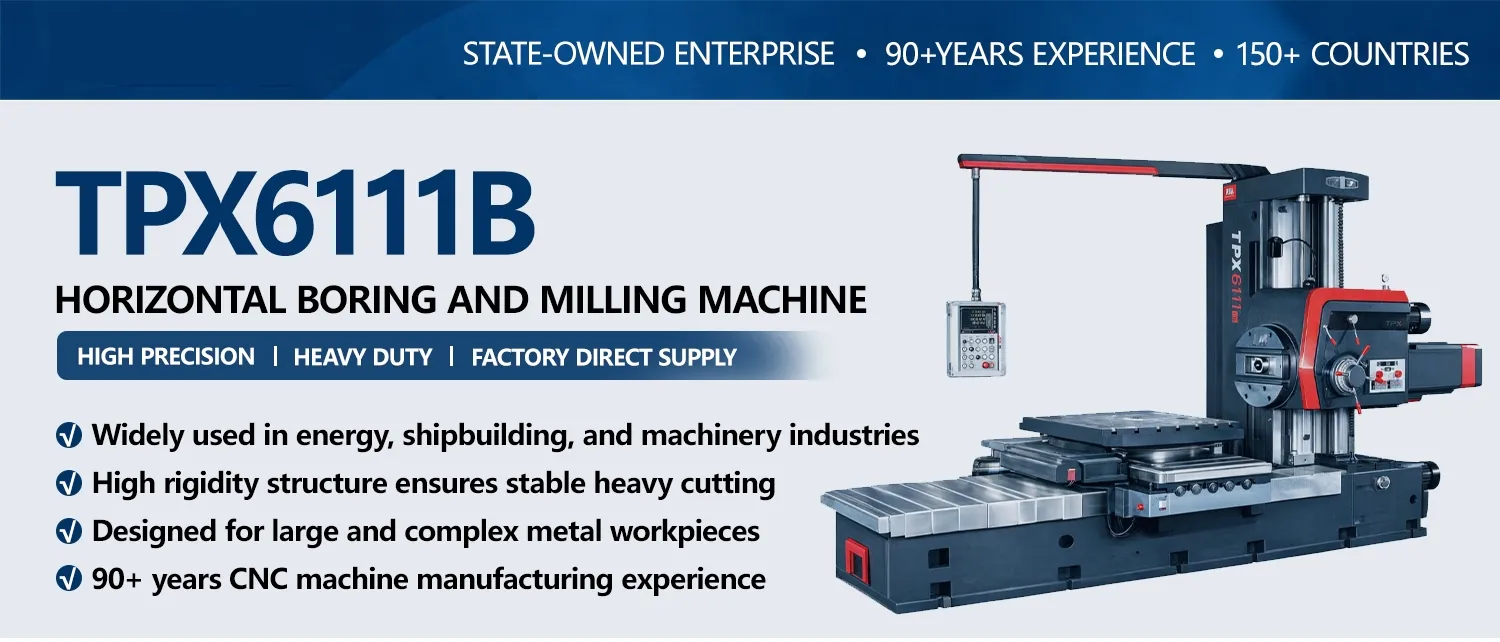

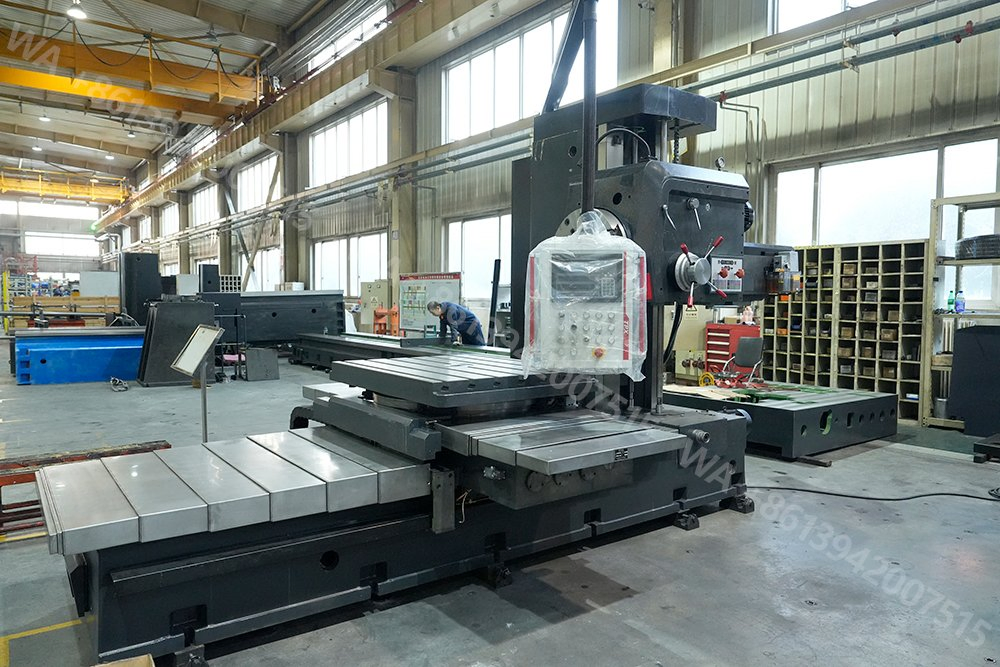

Integrated control panel enables precise feed and machining adjustment

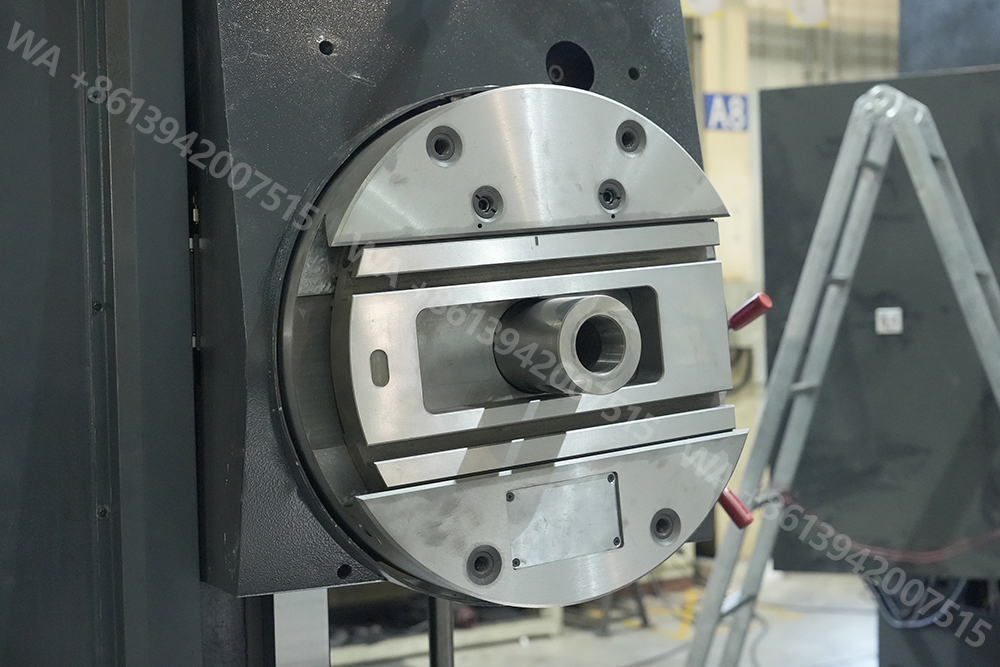

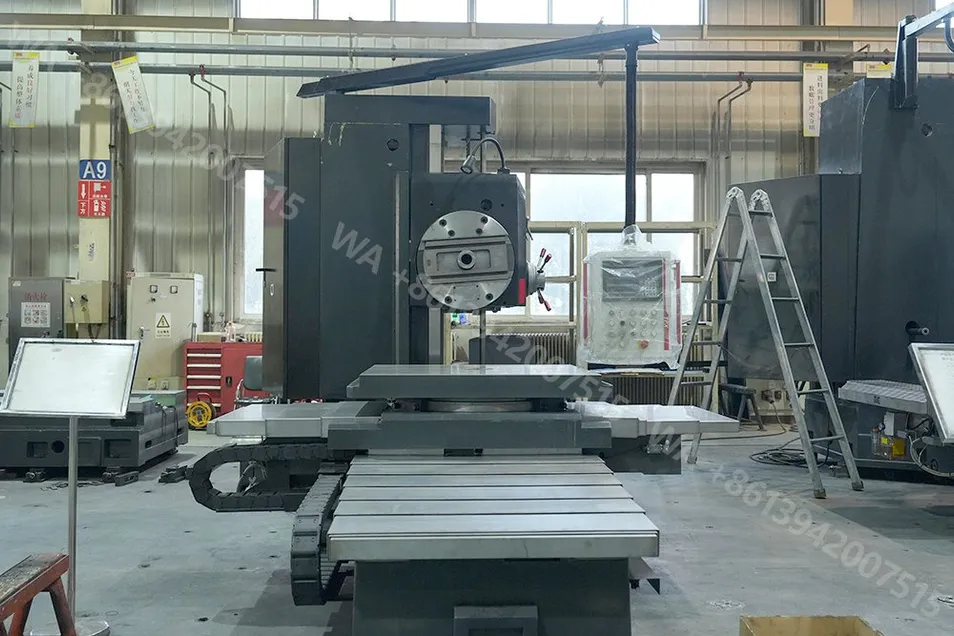

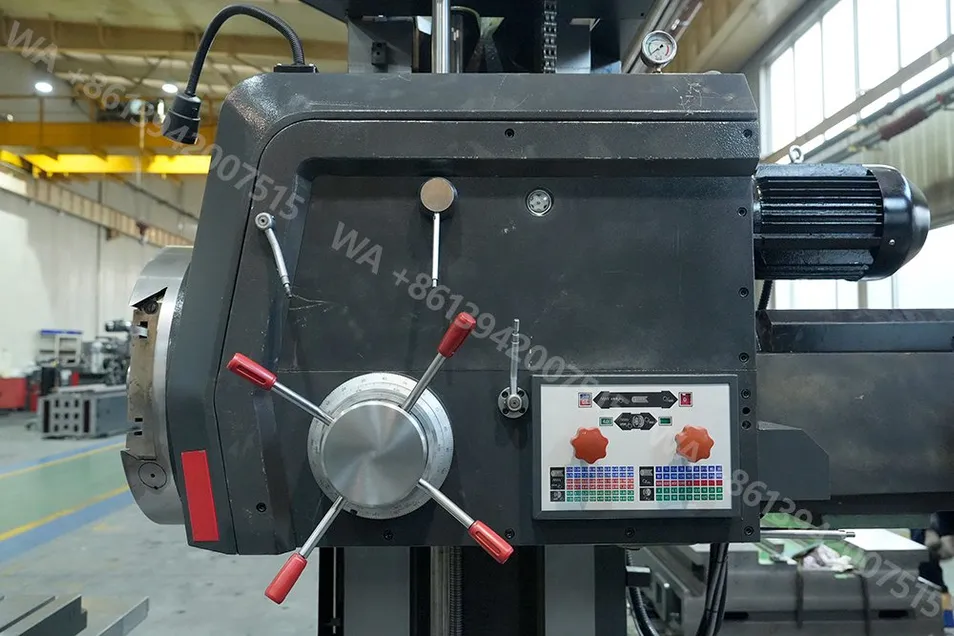

Horizontal Boring Bar Machine overall design

Specification

TPX6111B Manual Horizontal Boring Machines
Our manual horizontal boring machines are built on this principle, engineered by a leading enterprise with a legacy of empowering critical industries. Choose our manual horizontal boring machines for a partnership built on stability, precision, and the enduring strength of proven engineering.

Item		Unit	TPX6111B	TPX6111B/2	TPX6111B/3
Spindle	Diameter	mm	110	110	110
	Taper	—	Morse No6 (ISO7:24No50)	Morse No6 (ISO7:24No50)	Morse No6 (ISO7:24No50)
	Max Torque	N.m	1225	1225	1225
	Max Axial Thrust	N	12250	12250	12250
	Speed Settings	—	22	22	22
	Speed Range	r/min	8-1000	8-1000	8-1000
	Main Motor Power	kW	7.5	7.5	7.5
Facing Plate	Max Torque	N.m	1960	1960	1960
	Diameter	mm	600	600	600
	Speed Range	r/min	4-200	4-200	4-200
	Speed Settings	—	18	18	18
Worktable	Dimensions	mm	1100X960	1100X960	1250X1100
	Max Load	kg	5000	5000	5000
	T-slot Size	mm	22	22	22
	T-slot Count	—	7	7	7
Machining Range	X-axis Max Travel	mm	900	1250	1600
	Y-axis Max Travel	mm	900	900	1200
	Z-axis Max Travel	mm	1400	1400	1400
	W-axis Max Travel (Spindle)	mm	600	600	600
	U-axis Max Travel (Facing Plate Slide)	mm	180	180	180
	B-axis Rotary Angle	o	360	360	360
	Min Distance Spindle Center to Table	mm	0	0	0
Feed	Rapid Traverse	mm/min	X/Y/Z/W:2500	X/Y/Z/W:2500	X/Y/Z/W:2500
	Feed axes range per spindle rev	mm/rev	0.04-6 / 0.01-1.88 (X/Y/Z/W)	0.04-6 / 0.01-1.88 (X/Y/Z/W)	0.04-6 / 0.01-1.88 (X/Y/Z/W)
	Speed Range (X)	mm/min	—	—	—
Accuracy	Linear Reading Accuracy (X/Y/Z-axis)	mm	0.005	0.005	0.005
Accuracy	Linear Reading Accuracy (B-axis)	o	0.001	0.001	0.001
General Specs	Dimensions (LxWxH)	mm	4910x2454x2750	4910x2870x2750	5028x3359x3079
General Specs	Machine Weight	kg	11500	13000	14000

Production Facility

After Sales Service

Exhibition

Certifications

Frequently Asked Questions

What is the model number and design structure of this boring machine?

This boring machine is model TPX6111B. It has a Horizontal Boring Machine structure, which is specifically designed for machining large, heavy components in industrial settings.

What are the core technical specifications of the spindle?

The spindle features a diameter of 110mm with a Morse No6 (ISO7:24no50) taper. It provides a maximum torque of 1225 N.m, a maximum axial thrust of 12250 N, and includes 22 speed settings ranging from 8 to 1000 r/min.

What controlling mode and precision configuration does the machine have?

The machine uses CNC controlling mode combined with digital display positioning system. It operates at high precision with a linear measurement reading accuracy of 0.005mm on the X/Y/Z-axes and 0.001 degrees on the B-axis.

What is the worktable size and its maximum load capacity?

For the standard TPX6111B model, the worktable size is 1100x960mm (with up to 1250x1100mm for the TPX6111B/3 model). Across all models, the worktable is designed to hold a maximum load of 5000 kg.

What quality standards and safety certifications does the machine support?

The machine is built and certified according to international standard CE and ISO 9001 quality systems to ensure stability, durability, and safe operations in heavy manufacturing industries.

What is the lead time for product packaging and delivery?

The lead time is 100 days for a single machine order (1 Piece). For bulk orders exceeding 1 piece, the exact delivery timeline is open to negotiation.
