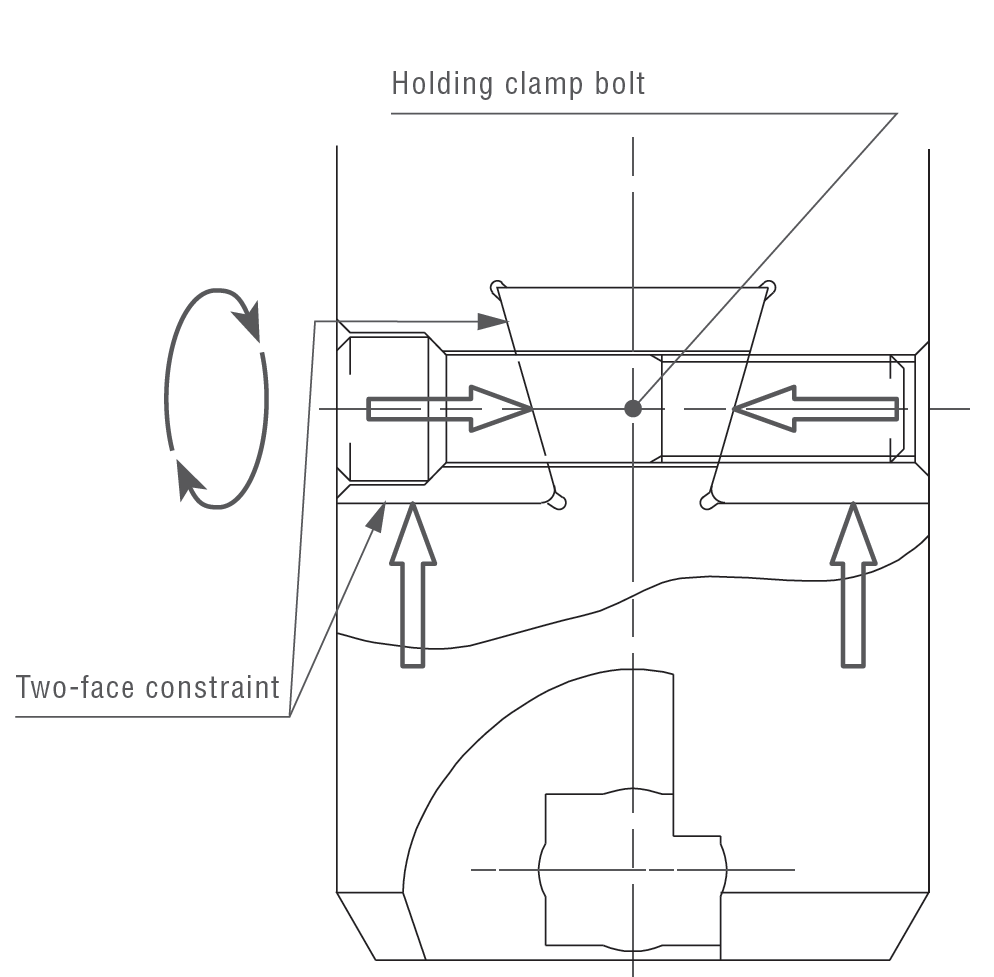

The body and slide part are integrated with a hand-finished dovetail that is aligned to the actual workpiece and held fixed with clamp bolts. Since it is constrained in two places (the taper area of the dovetail and the bottom surface), a highly rigid assembly is ensured.
ABHs 18 to 50 employ polished micro adjustment screws that allow fine-tuning with a precision of 0.05 dia. by direct reading, and of 0.01 dia. using a vernier scale. ABHs 63 to 83/BHBs 125 to 180/BTMs 320 to 420 use polished worms/worm wheels, allowing fine-tuning with a precision of 0.01 dia. by direct reading.

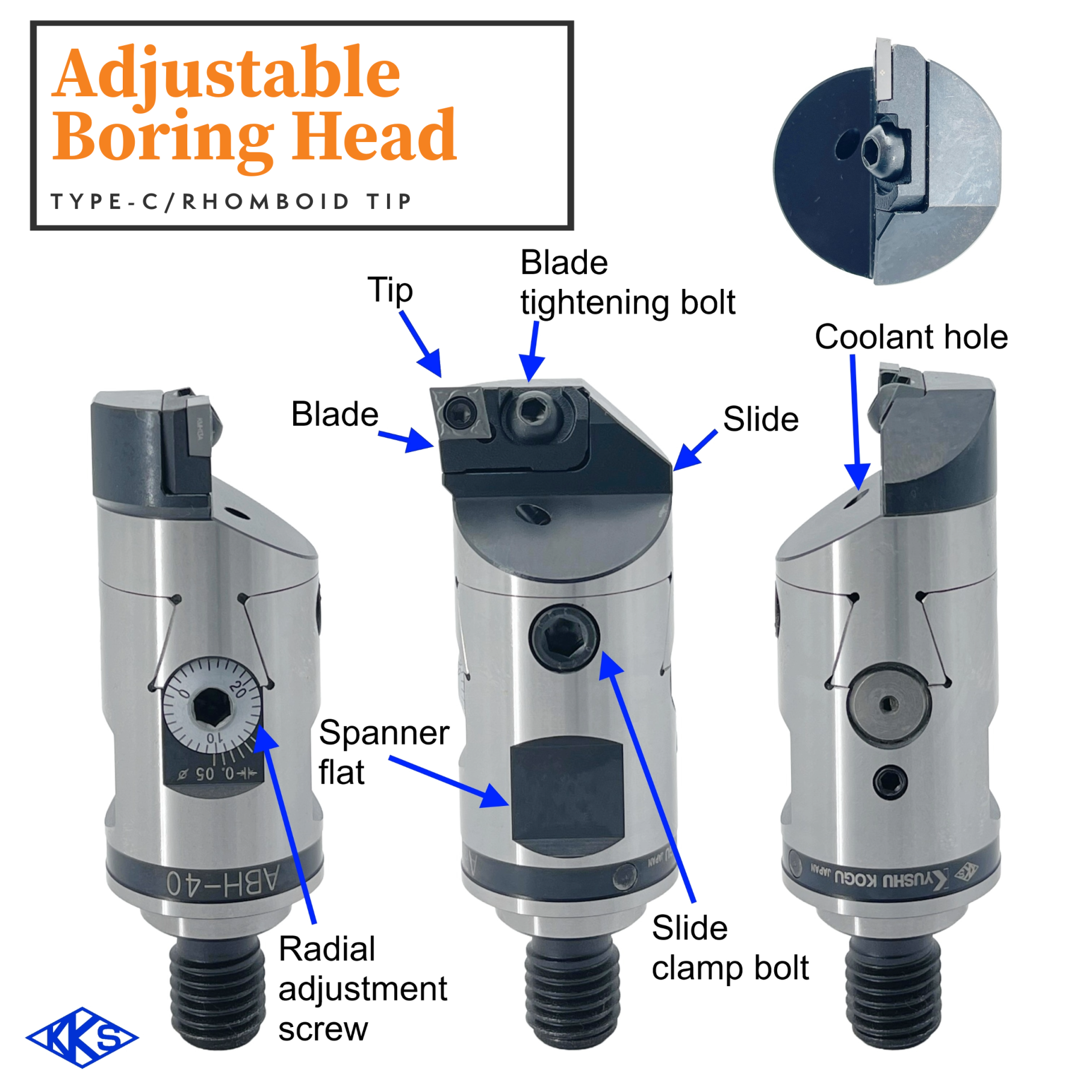

These blades are designed so that blade edge damage will not immediately lead to body damage. ISO tips are used for all the products, allowing you to select the tips of any blade manufacturer for a specific workpiece.

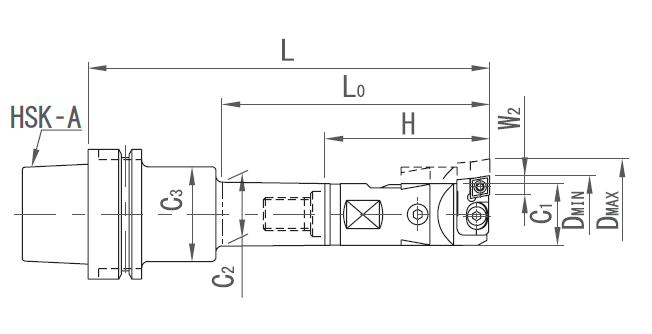

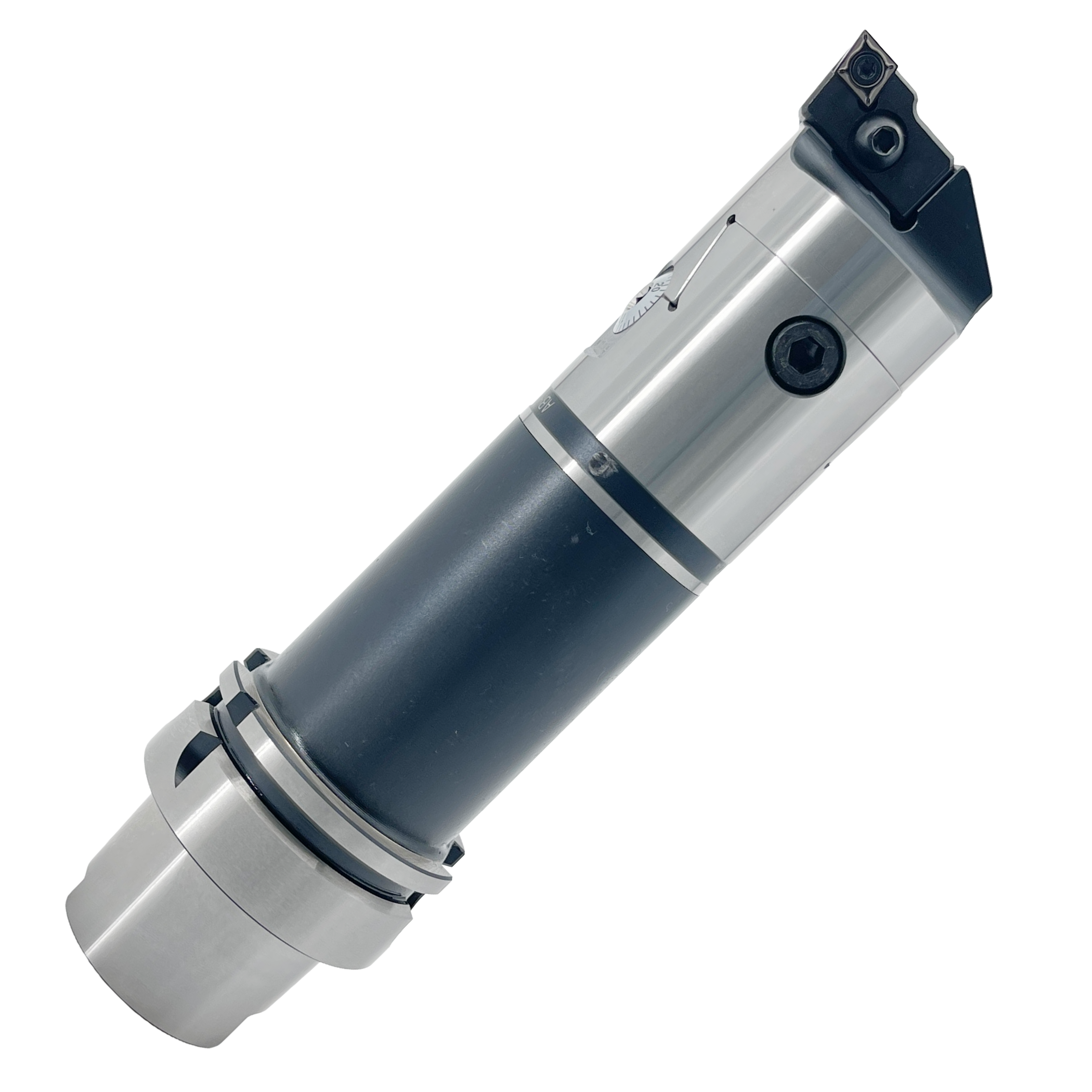

| Parameter | Details / Values | |
|---|---|---|
| Set Code | A63-ABH50C-165-OH | A63-ABH50C-195-OH |
| φD Machining Diameter | 60 - 86 | |
| L0 Effective Machining Depth | 135 | 165 |
| L | 165 | 195 |
| C1 | 50 | |
| C2 | 50 | |
| C3 | 50 | |
| H | 97 | |
| W2 | 9.525 | |
| Weight | 2.5 | 3.0 |

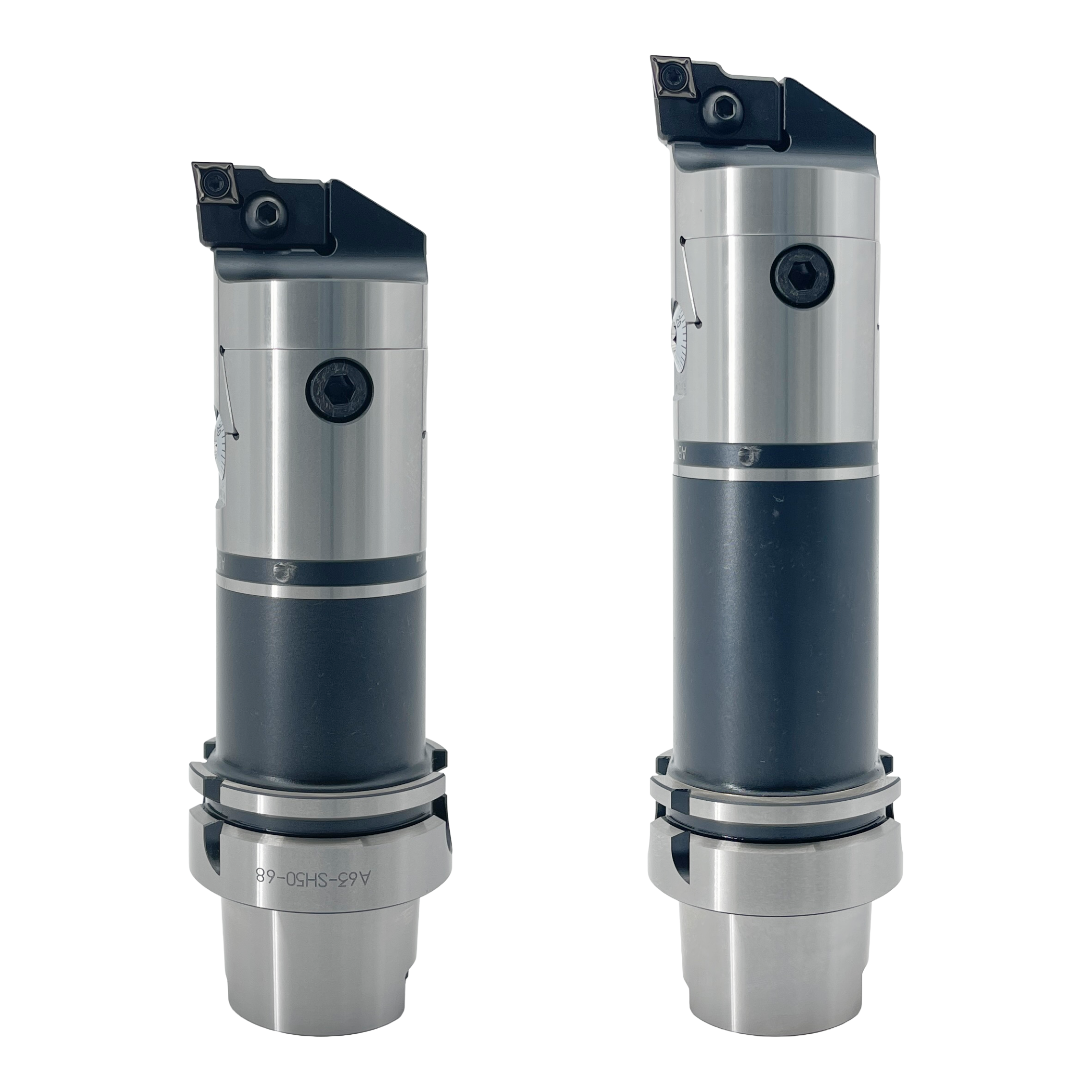

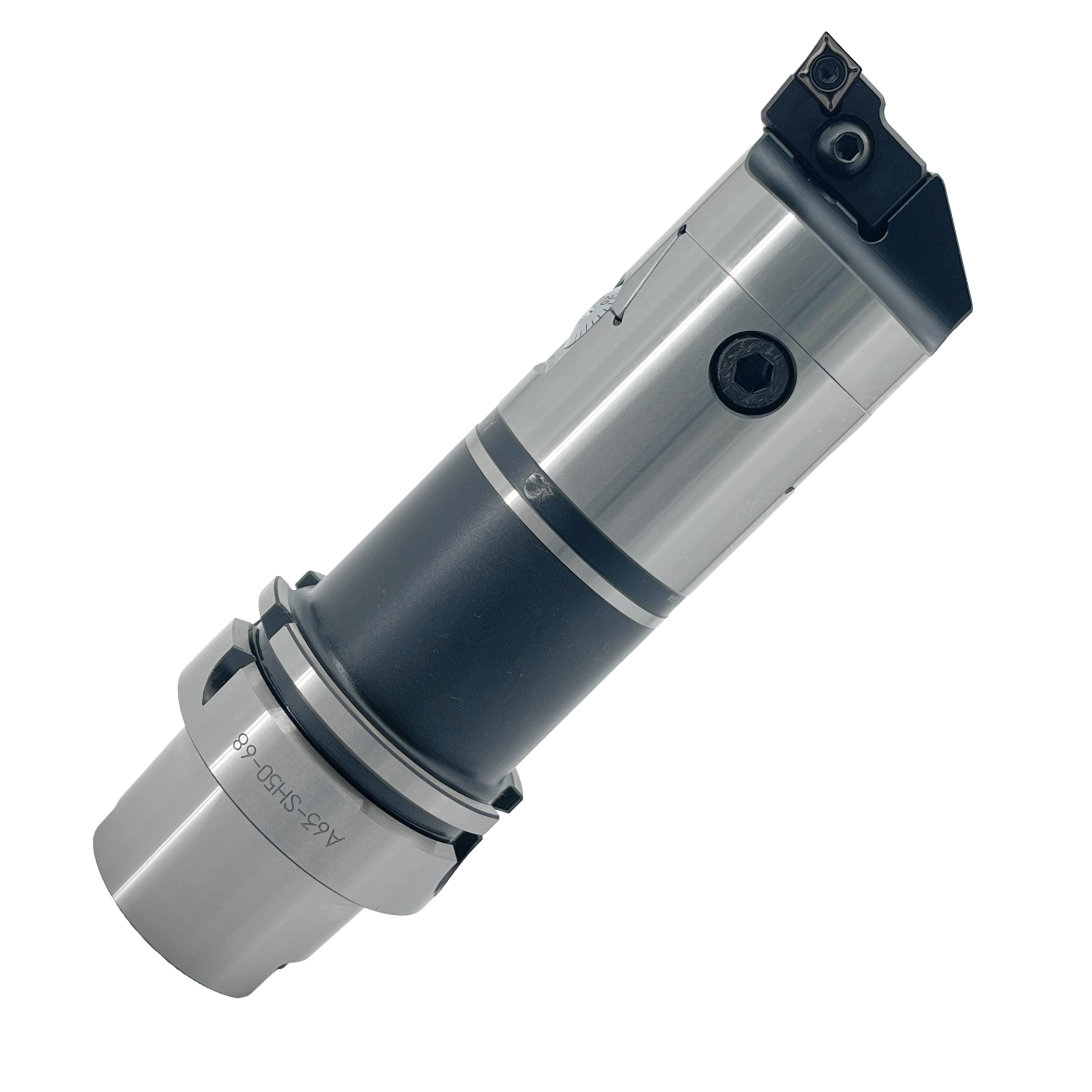

| Set Items / Shank | A63-SH50-68 | A63-SH50-98 |
| Set Items / Head | ABH-50C-OH | |
| Dial Calibration | φ 0.05 (Vernier calibration φ 0.01) | |
