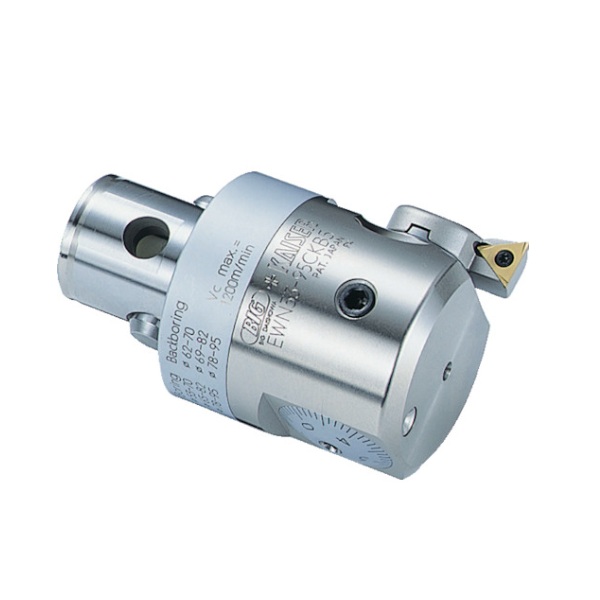

New Reliable Big Daishowa Kaiser CK Boring System EWN Boring Head and Finishing Head EWN41-74CKB4 for CNC Machine Center

Product Description

Product Description
EWN41-74CKB4

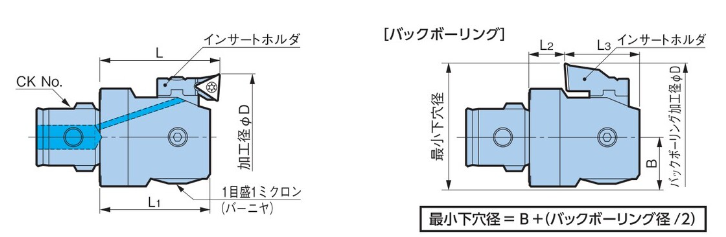

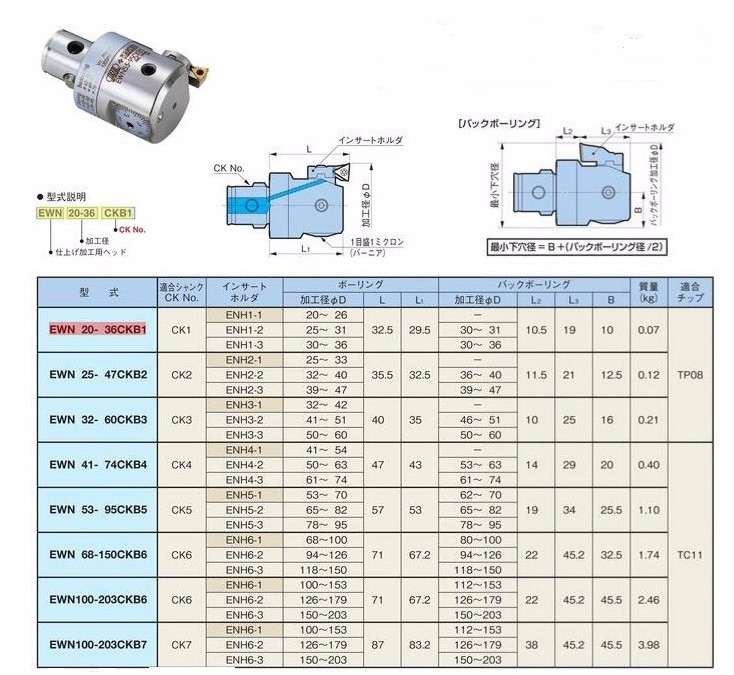

EWN41-74CKB4 Spec Diagram
Product Number Insert Holder Boring   Back Boring
Machining Diameter ΦD L L1 Machining Diameter ΦD L2 L3 B
EWN41-74CKB4 ENH4-1 41~54 47 43 - - - -
ENH4-2 50~63 53~63 14 29 20
ENH4-3 61~74 61~74
MEGA CHUCK SERIES EWN Boring Head

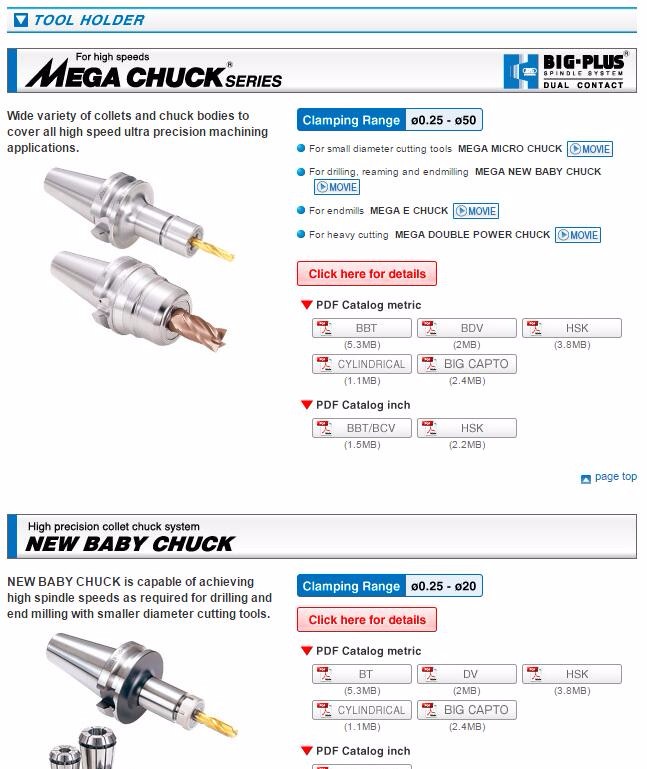

MEGA CHUCK SERIES:

Wide variety of collets and chuck bodies to cover all high speed ultra precision machining applications.

NEW BABY CHUCK:

NEW BABY CHUCK is capable of achieving high spindle speeds as required for drilling and end milling with smaller diameter cutting tools.

MEGA ER GRIP:

High precision collet, nut and body that outperforms standard ER systems.

HYDRAULIC CHUCK:

For high precision machining in automobile parts, die & mold, etc.

NEW Hi-POWER MILLING CHUCK:

NEW Hi-POWER MILLING CHUCK combines the high accuracy with high torque capability and rigidity.

RA HOLDER:

Compensates decreased runout accuracy of machine tool spindle. Simple design & easy adjustment. Uniform hole diameter, improved surface roughness & extended tool life.

SHRINK CHUCK:

Slim design avoids interference with the side wall and draft of the mold.

MOLD CHUCK:

Precision side lock holder to satisfy the requirements for minimum interference, accuracy and high speed.

GOLD STUB HOLDER:

Easy quick change with just one action. It is suitable for every type of process such drilling, tapping, etc., due to a large assortment of quick change holders.

Other Products

Other products display:

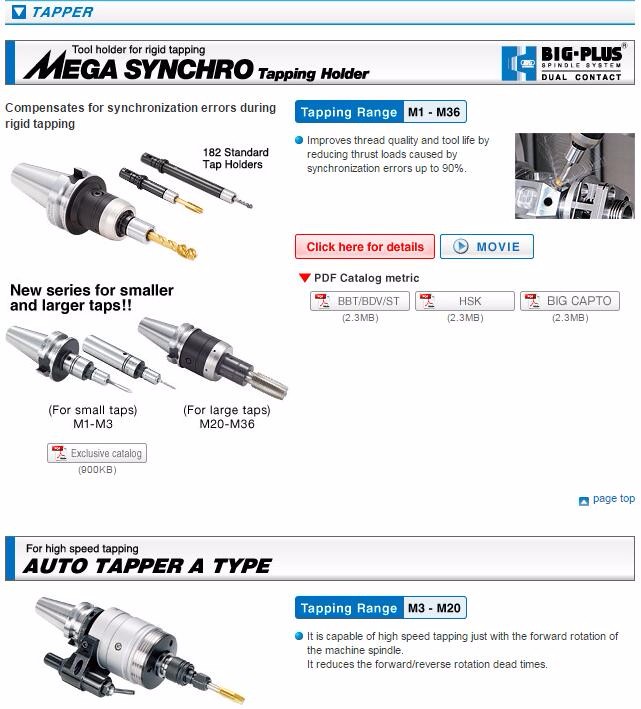

Precision Tooling Product 1 Precision Tooling Product 2 Precision Tooling Product 3 Precision Tooling Product 4 Precision Tooling Product 5 Precision Tooling Product 6
Precision Tooling Product 7
Our Services

Established on March.27th 1963, we have been growing up over 50 years. As a trading company, we sell steel, tools and machines in Japan. And as the agency of top brands, we provide the needs to society and customers and grow up together. The world is changing everyday, advance and diversification of needs are developing. In addition to quality, function, speed and price, the obligation of environmental problem and social responsibility becomes an important role of the enterprise. With providing the needs to society and customers, our company is evolving for a better future.

Business Scope:
  • Sale of cutting tools, measuring tools, electric pneumatic tools, hydraulic tools, hydraulic machine, and hand tools etc.
  • Sale of machine tools, apparatus, and FA system etc.
  • Development, design, manufacture and sale of automatic apparatus and robot system.
  • Sale of general steel, special steel and processed goods of them.
  • Design and construction of scene industrial products.
Services and Operations
Company Information

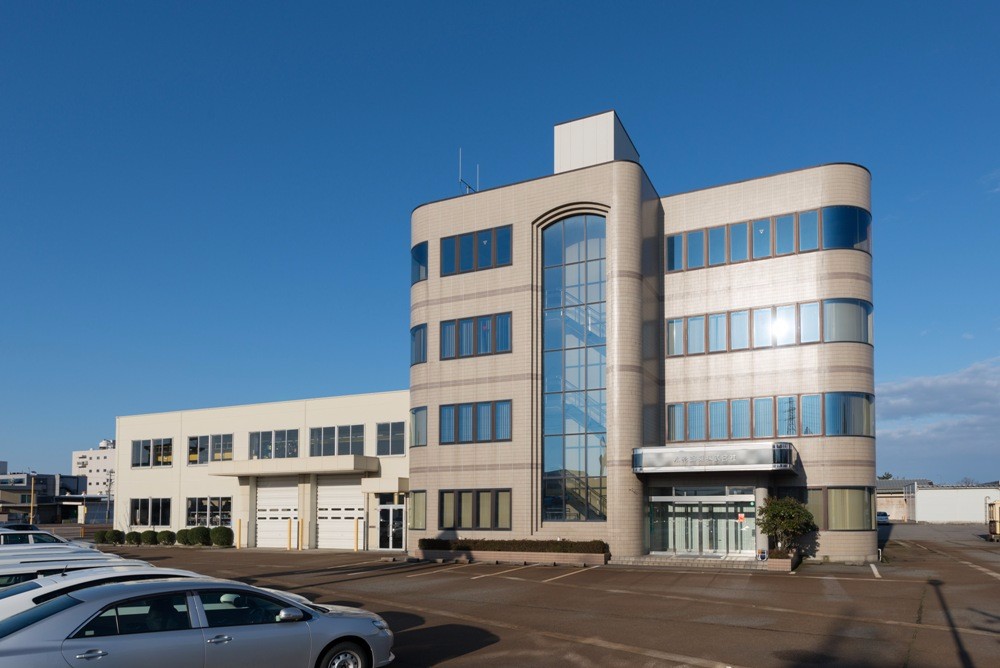

Company Facility and Warehouse
