Product Description

Specifications

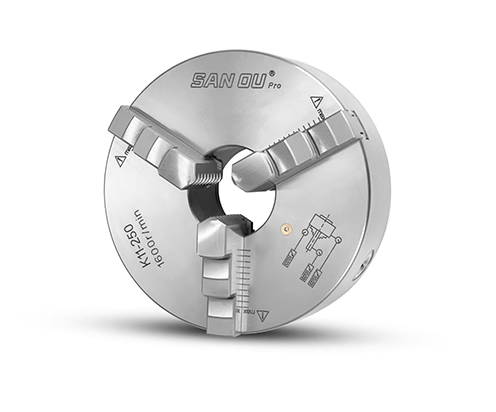

Model K11-250 Pro
Jaws Material Hardened Steel
Max RPM 1600 r/min
Jaw Count 3 Jaw
Power Type Manual

Key Features

  • Short cylindrical center mounting.
  • Model K11 chucks are provided with one-piece jaws (which include a set of internal jaws and a set of external ones).
  • Model K11 chucks are supplied with traditional two-piece jaws.

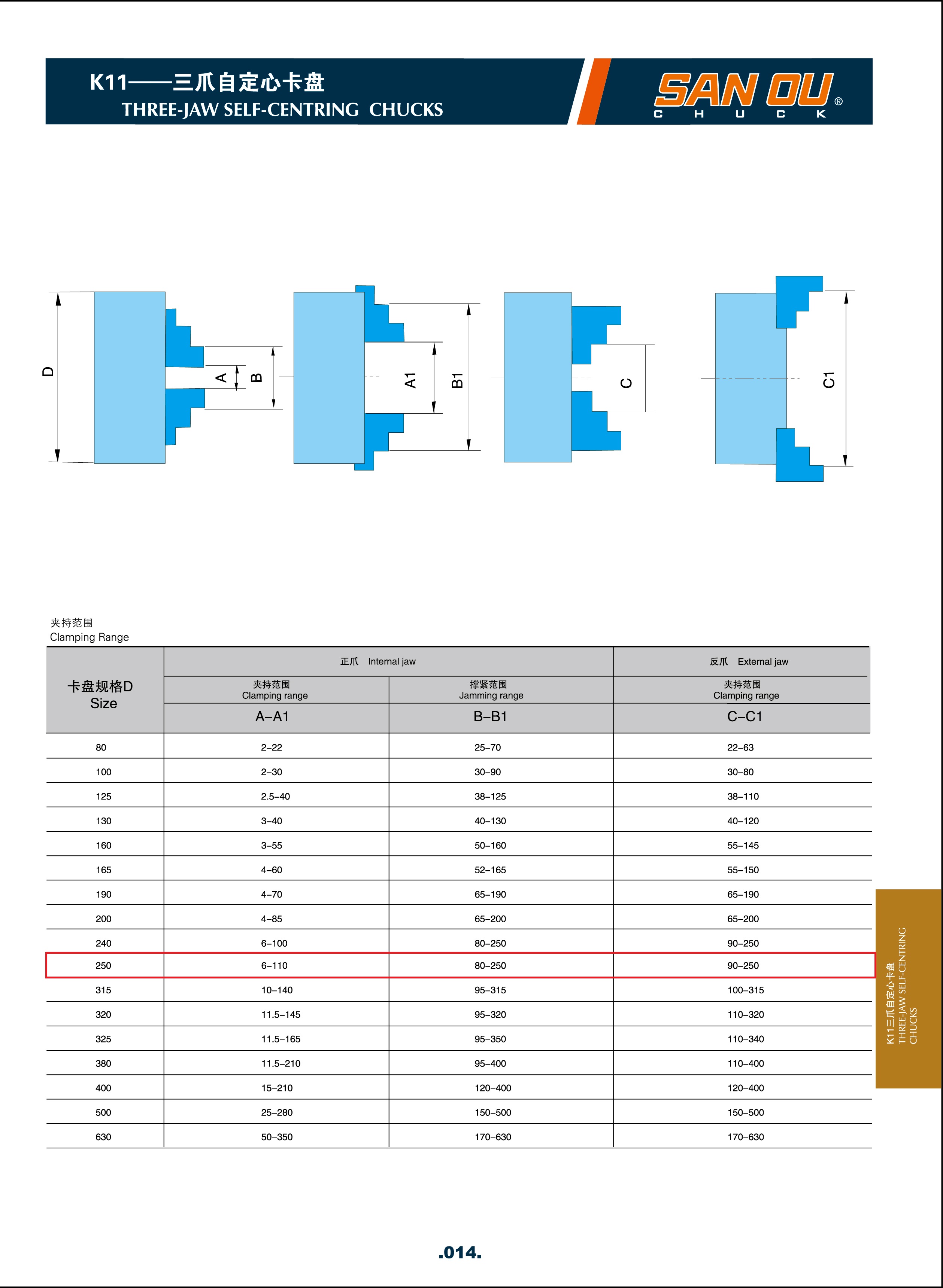

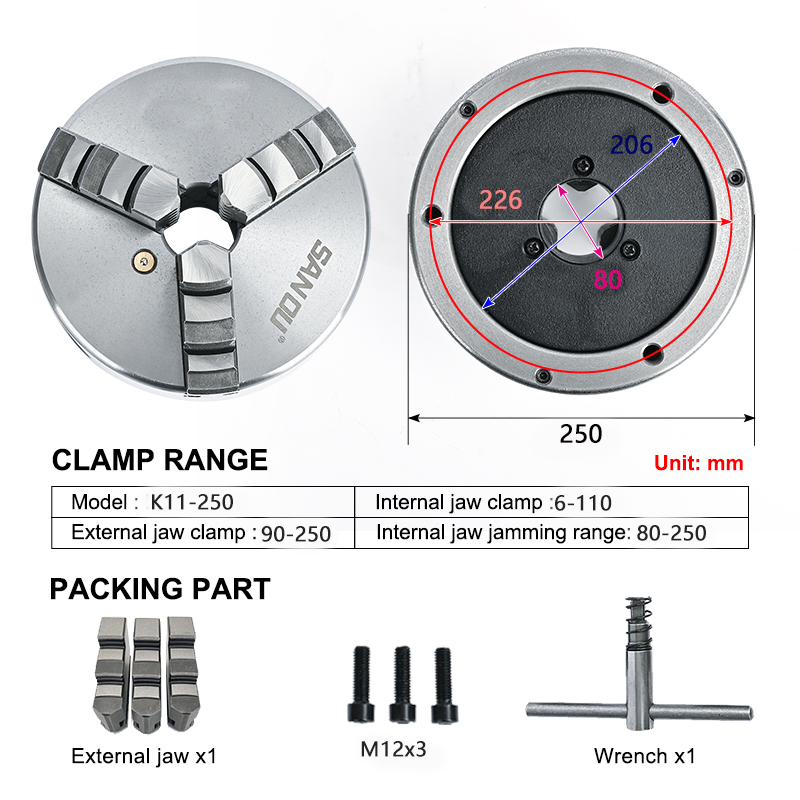

Clamping Range

Internal Jaw

Clamping Range A-A1: 6 - 110 mm

Jamming Range B-B1: 80 - 250 mm

External Jaw

Clamping Range C-C1: 90 - 250 mm

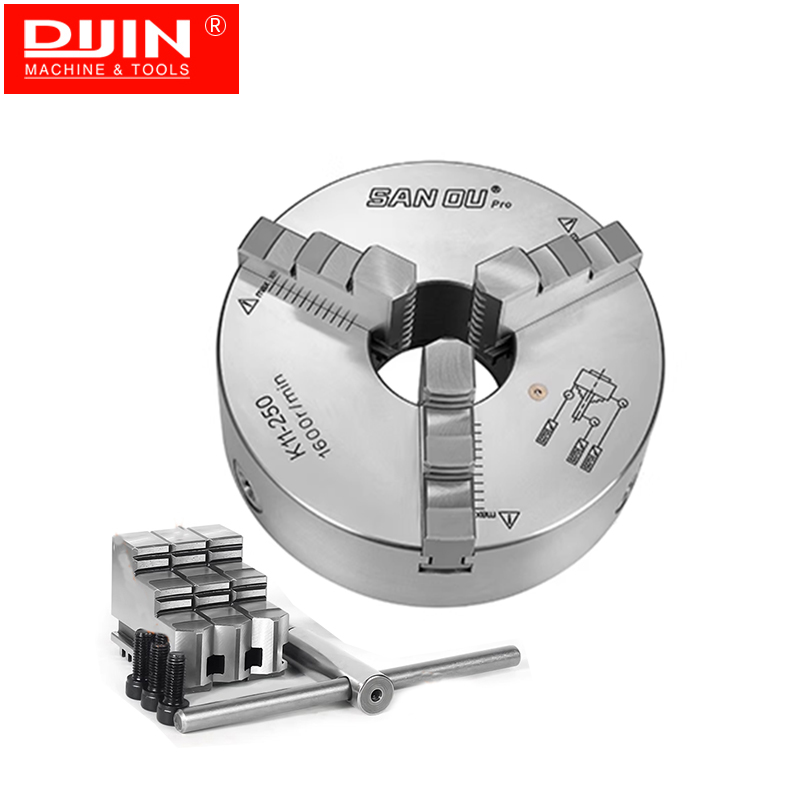

Package Included

  • Self-Centering chuck body x 1
  • Inside jaws x 3
  • Outside jaws large x 3
  • Safety chuck key x 1
  • Mounting bolts x 3

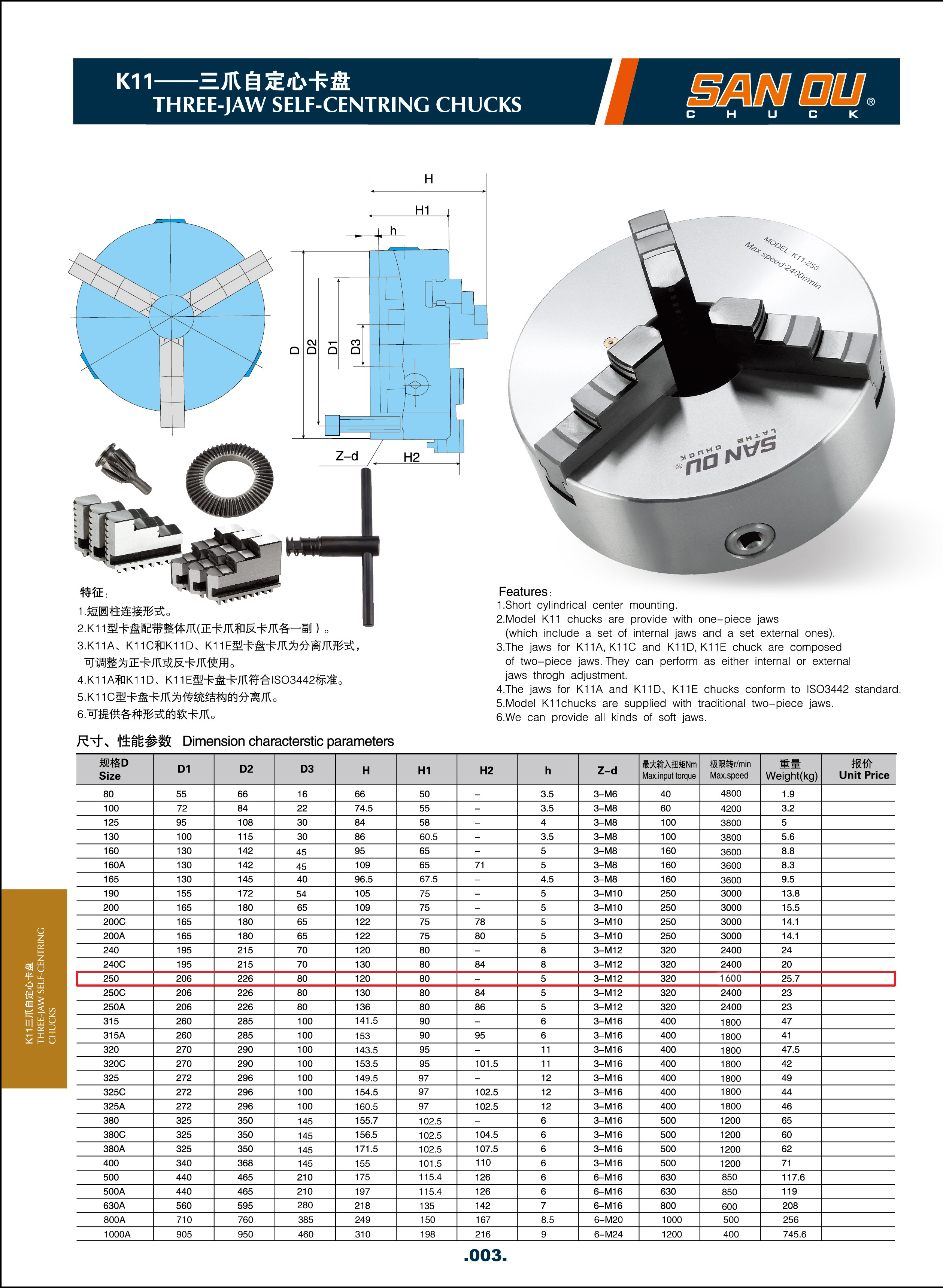

Self-centering chuck K11-250 Pro Dimensions and Layout
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe
High Precision 3 Jaw Self-centering Chuck K11-250 Pro With 0.03mm Sanou Brand Metal Lathe Chuck 250mm Scroll Chuck for Lathe

Frequently Asked Questions

What are the main specifications of the K11-250 Pro chuck?
The K11-250 Pro is a 3-jaw manual self-centering chuck featuring jaws made from high-grade hardened steel, and operates at a maximum speed of 1600 r/min.
What is the internal jaw clamping range?
The internal jaws support a clamping range (A-A1) of 6 to 110 mm and a jamming range (B-B1) of 80 to 250 mm.
What is the external jaw clamping range?
The external jaws support a clamping range (C-C1) of 90 to 250 mm.
What components are included in the packaged set?
The package contains 1 self-centering chuck body, 3 inside jaws, 3 large outside jaws, 1 safety chuck key, and 3 mounting bolts.
Is this lathe chuck manually operated or powered?
The K11-250 Pro is a manually powered scroll chuck designed for self-centering setups on lathes.
