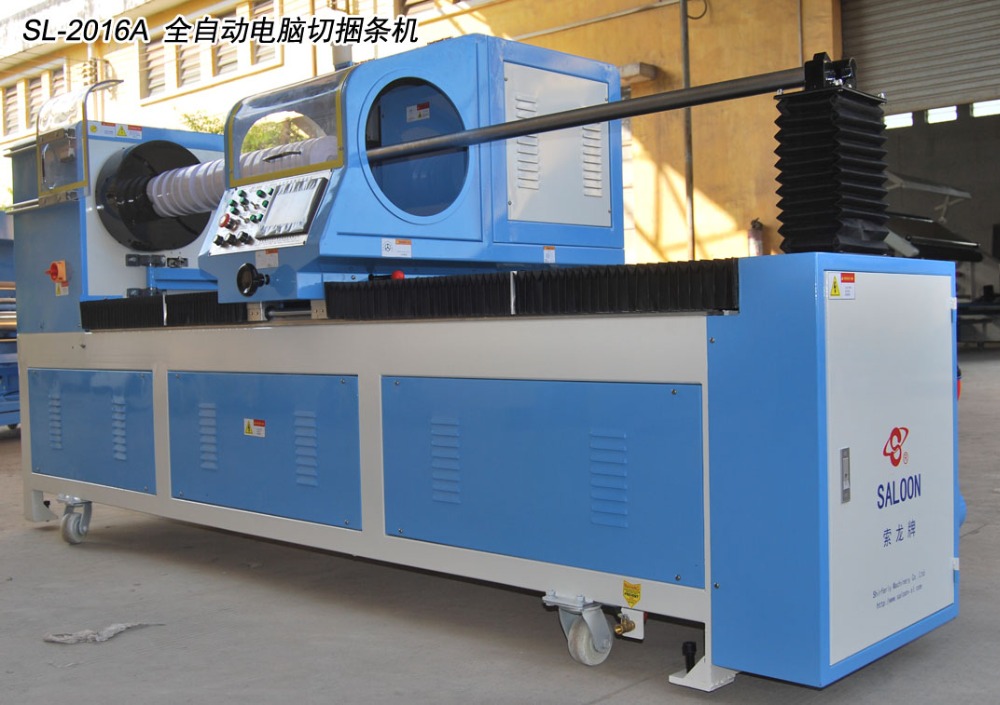

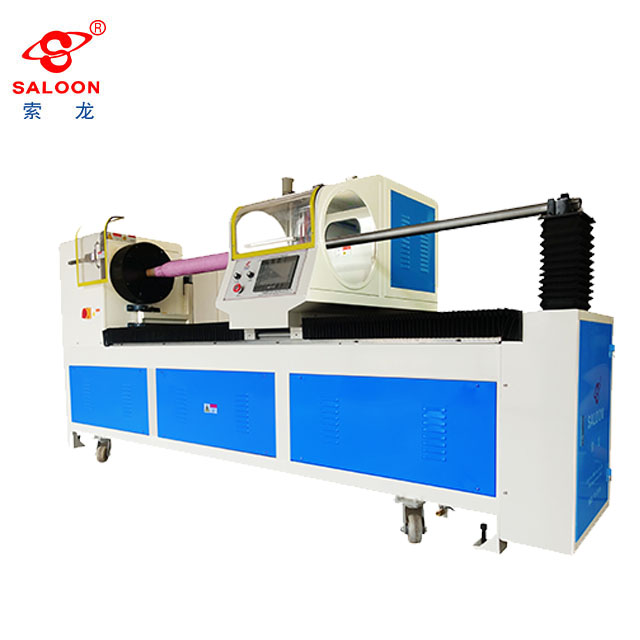

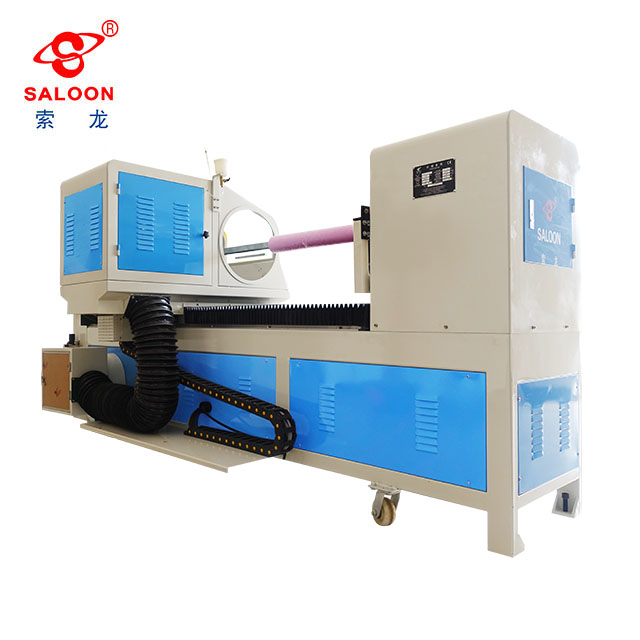

The machine equipped Microcomputer programmed data, visual interface for operation and easy & comfortable start up.
✓
Controlled by programmed data and driven by servo motor for accurate sizing needs. Five different sizes (toggle between English and metric units) can be cut on the same cloth beam once started.
✓
Magic eye monitoring for cutting, electronically tuned cutting rate, and electronic transduction for the principal axis of cutter.
✓
Magic eye for manual or automatic knife sharpener monitoring; pause time can be set, and sharpeners can work simultaneously.
✓
Integrated vacuum unit to remove excess trimmed material and sharpening dust.
✓
Automatic chuck system raising overall work efficiency by up to 35%.
✓
Automatic shaft resetting system that automatically returns to position after loading fabric.
✓
Auto-sensing capability for the fabric roll diameter and auto-control of the feeding speed.
✓
Automatic detection of fabric roll edge and precise auto cutting.
✓
Auto checks blade diameter and automatically adjusts the relative cutting distance.
✓
Equipped with an automatic main shaft supporting device.
✓
Completely enclosed blade design ensuring high safety factor for operators.
✓
Built-in cooling function to ensure consistent operations.
✓
Safety lock system: the machine can only be started after lifting.
✓
Interactive "Feed" button displays real-time feeding speed.
✓
Parameters and data settings can be reserved after emergency shutdown.
✓
Feeding speeds can be controlled and adjusted separately.
Frequently Asked Questions
What are the width and roll diameter limits for fabric loading?
The machine handles cutting widths from 3mm to 1680mm. The maximum loading width for the fabric roll is 1950mm, and the maximum roll diameter it supports is 280mm.
How does the automatic blade adjustment and sensing system function?
The system features intelligent auto-sensing of the fabric roll diameter and automatically checks the blade diameter to set the ideal distance and control the feeding speed continuously.
What safety mechanisms are built into this fabric cutter?
Safety features include a completely enclosed blade structure and an interlock system where the machine can only start after lifting. Additionally, system parameters are safely reserved in the event of an emergency shutdown.
How does the automatic knife sharpener work?
A specialized magic eye monitors the knife sharpener. It can operate manually or automatically, pause times can be pre-configured, and the sharpening units work simultaneously to prevent processing downtime.
What utility connections are required for installation?
The machine operates on a 220V/380V/50Hz power supply with a power rating of 3.0KW. It also requires connection to an air compressor with a pressure range of 0.4~0.8Mpa.
