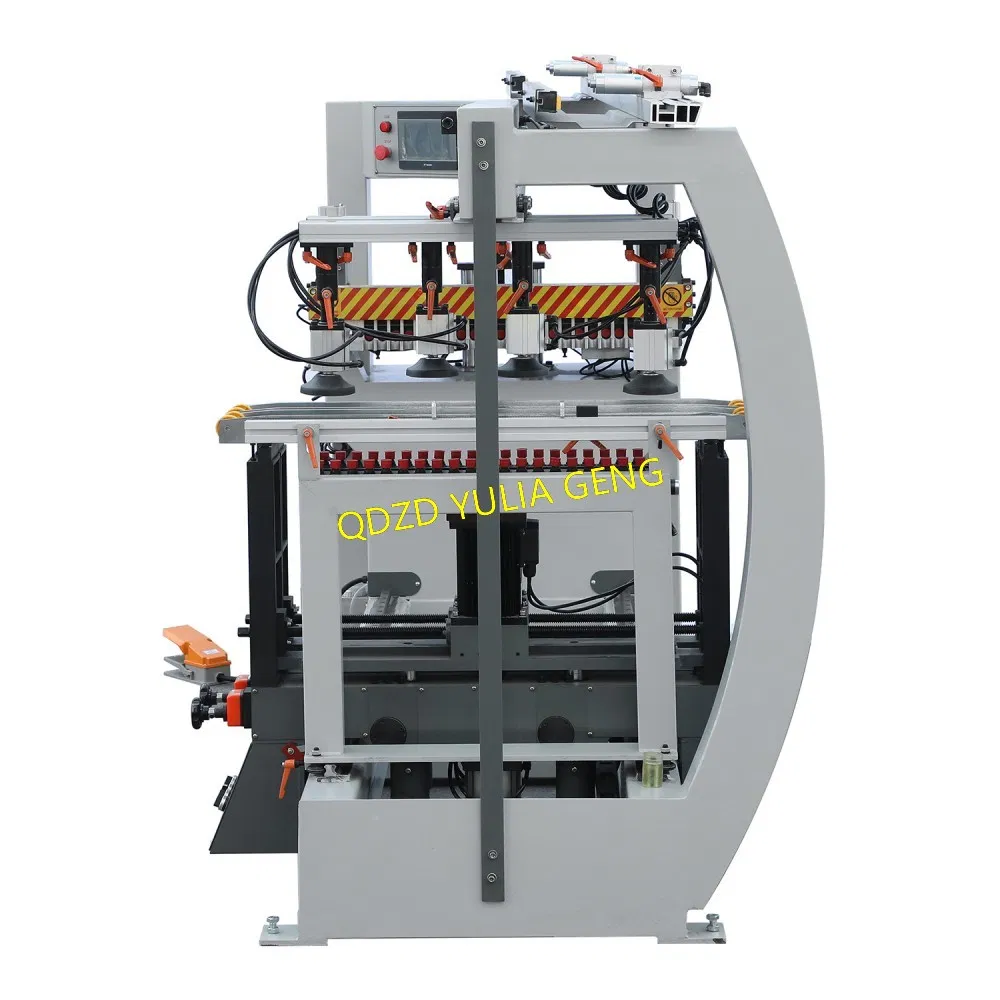

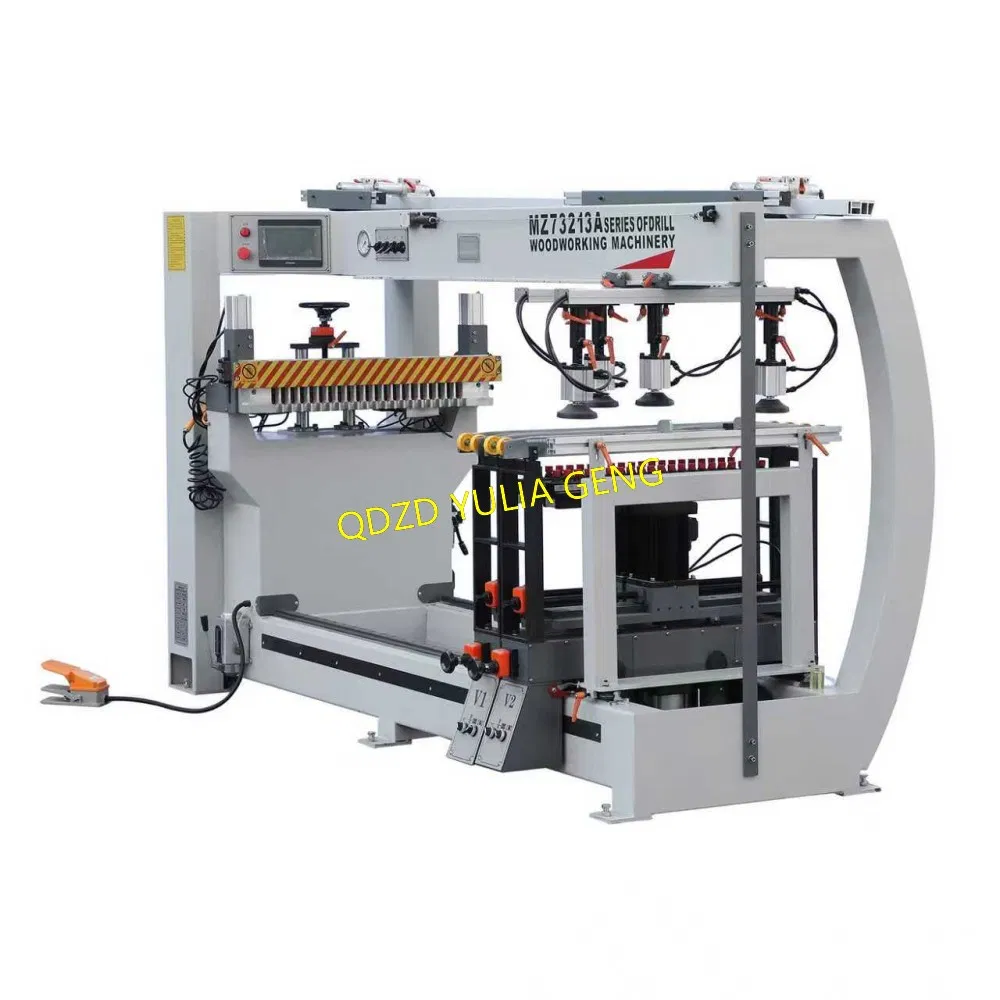

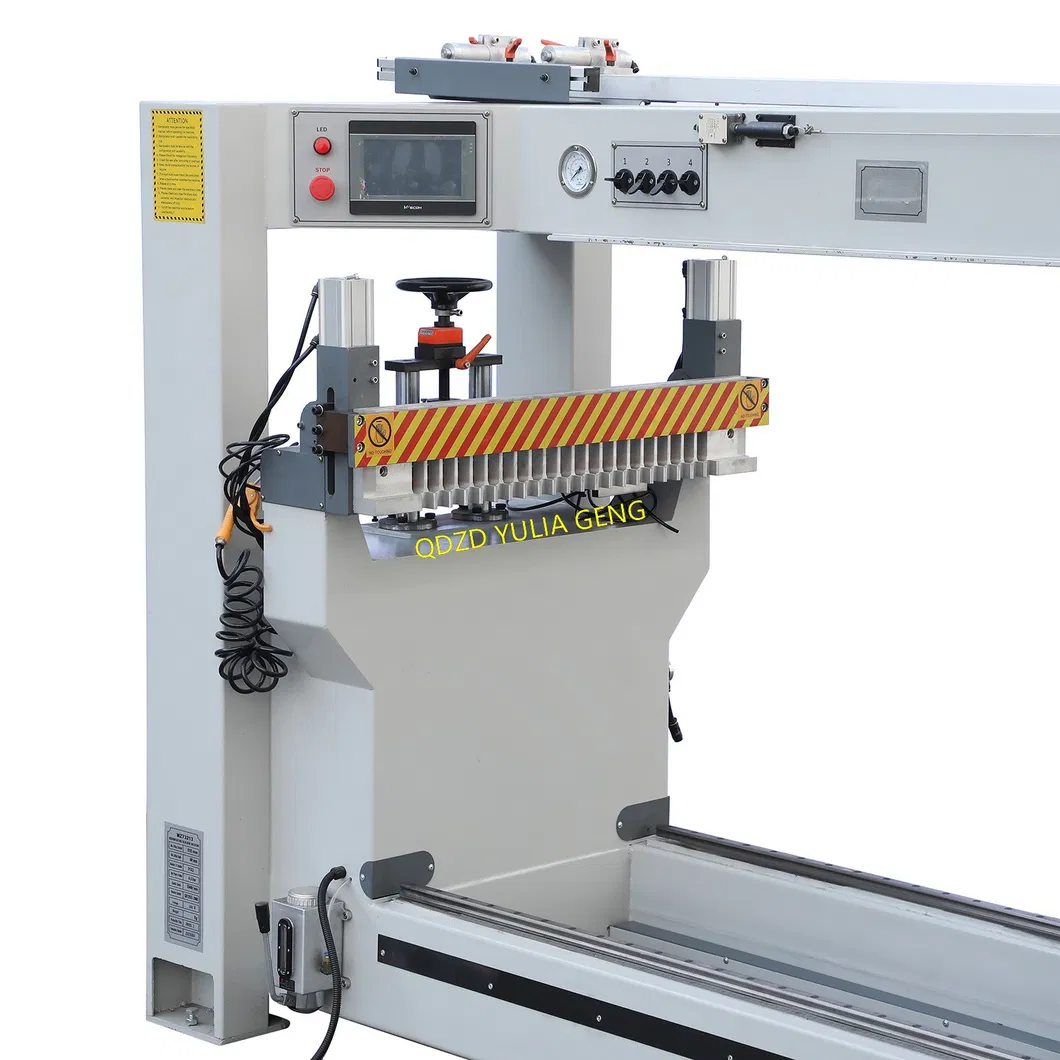

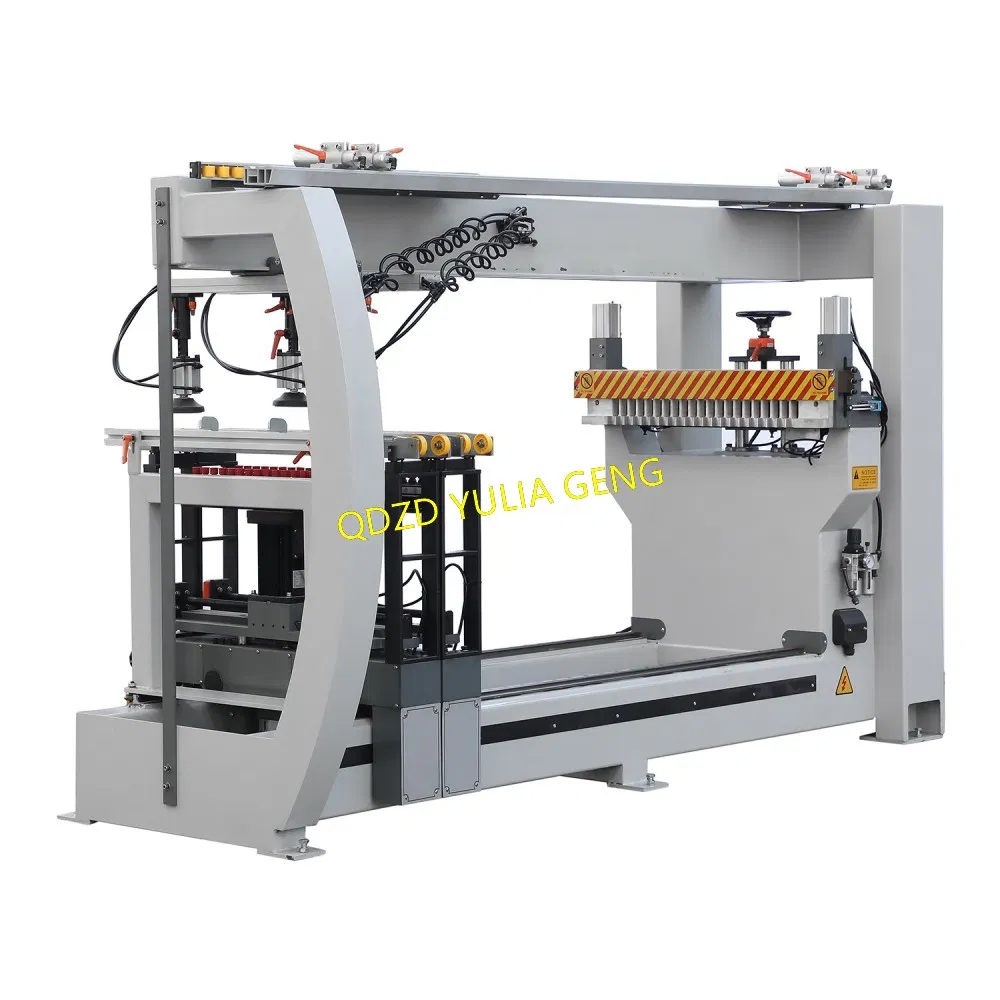

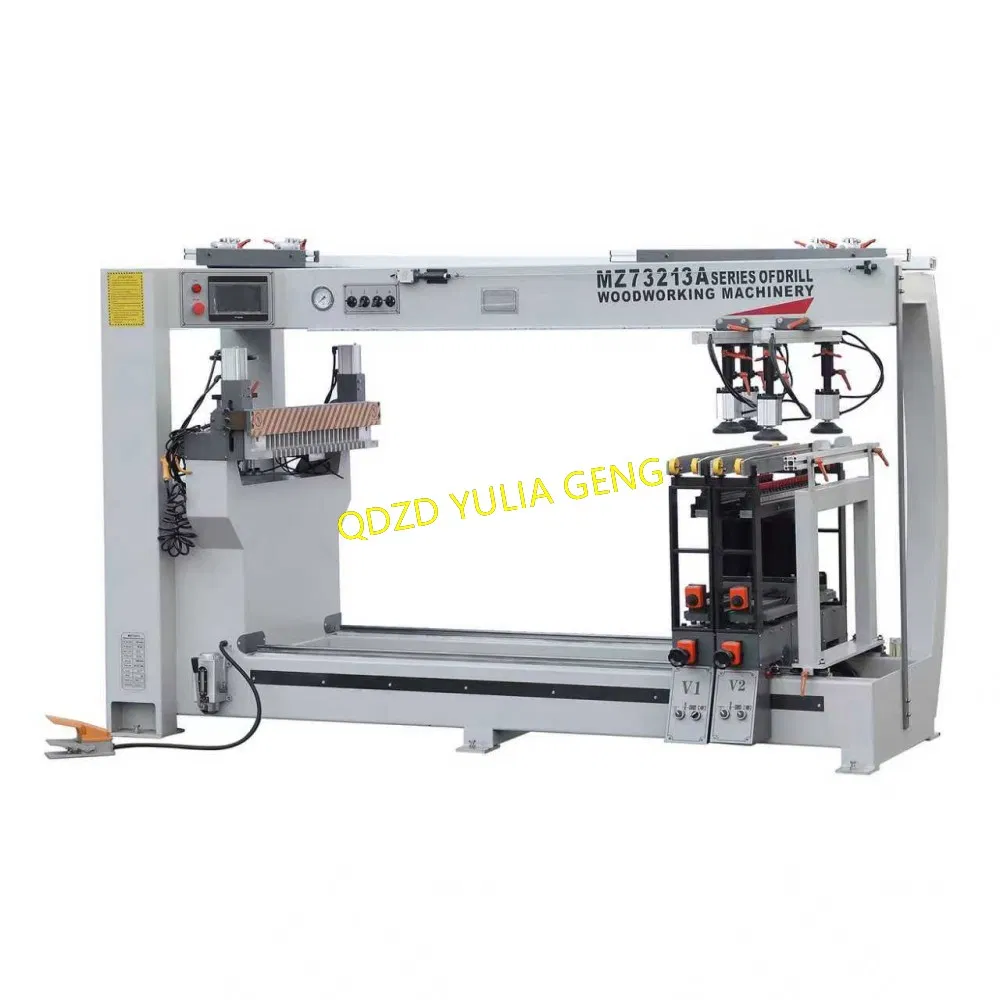

MZ73213A Triple Row Drilling Machine Automatic Woodworking Multi-Spindle Drill for Panel Furniture Cabinet Production Line High Efficiency
Suitable for mortising processing of various wood materials including particle board, medium-density fiberboard, and engineered wood. Maximum drilling diameter is 35mm, maximum processing depth is 60mm, maximum processing length can reach 2500mm, and processing thickness range is 10-80mm. It can meet drilling requirements for panel furniture, doors and windows, decorative materials, and various other industries. Multi-function capability ensures high return on investment.

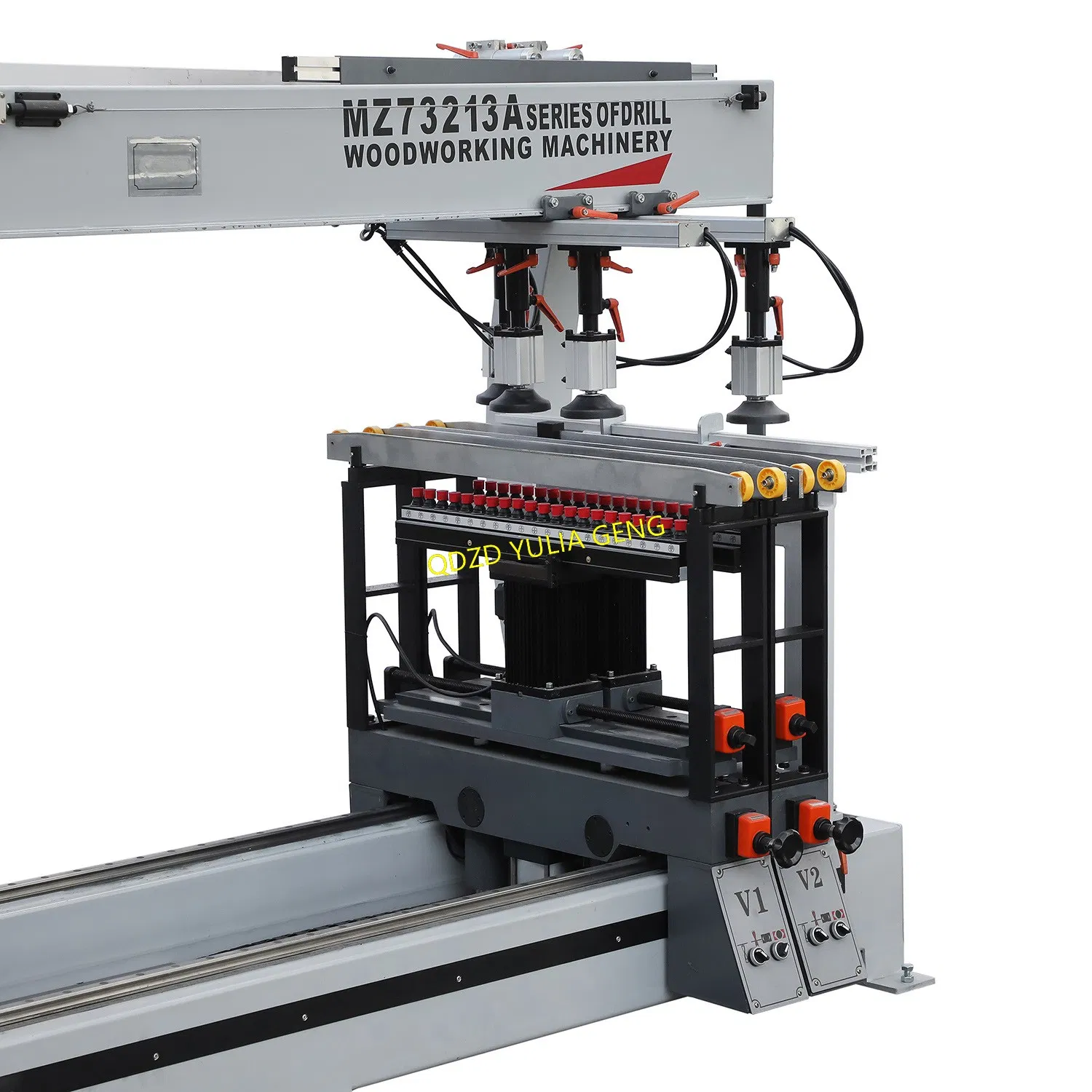

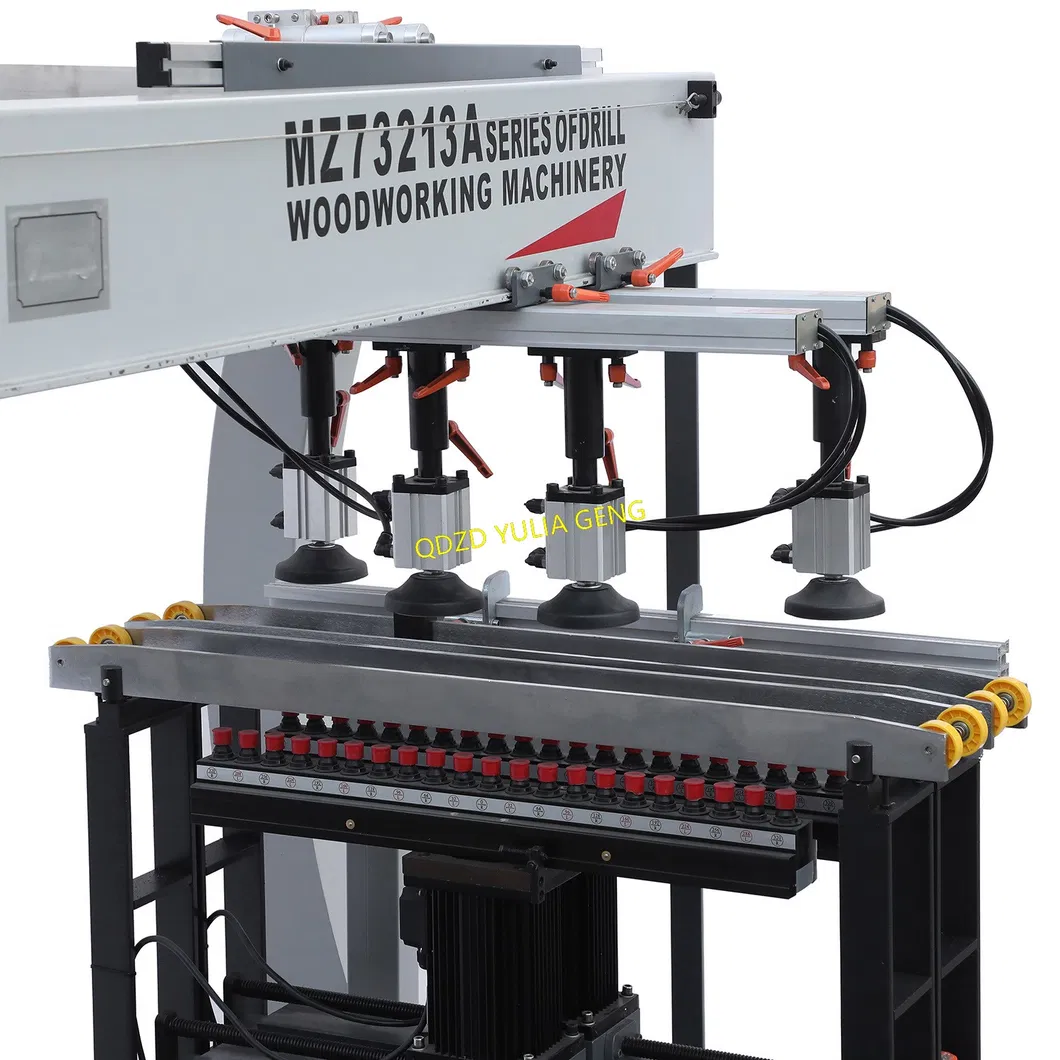

The MZ73213A features a triple-row multi-spindle drilling system, capable of completing multiple hole positions across three rows in a single operation, with spindle speeds reaching 2840r/min. Compared to single-row drilling machines, work efficiency is improved by 2-3 times. It is especially suitable for batch drilling production of panel furniture components (such as cabinets, wardrobes, and custom furniture), significantly reducing processing cycles and increasing production capacity.
All drill bits adopt quick-connector design, enabling fast and convenient bit changes to reduce downtime. Equipped with digital dimension calculator for intuitive display of processing parameters, improving work efficiency. The drill row has a large drilling range (vertical drill processing hole distance 130mm-1800mm), allowing flexible adjustment of drill seat quantity and layout to adapt to different processing requirements.

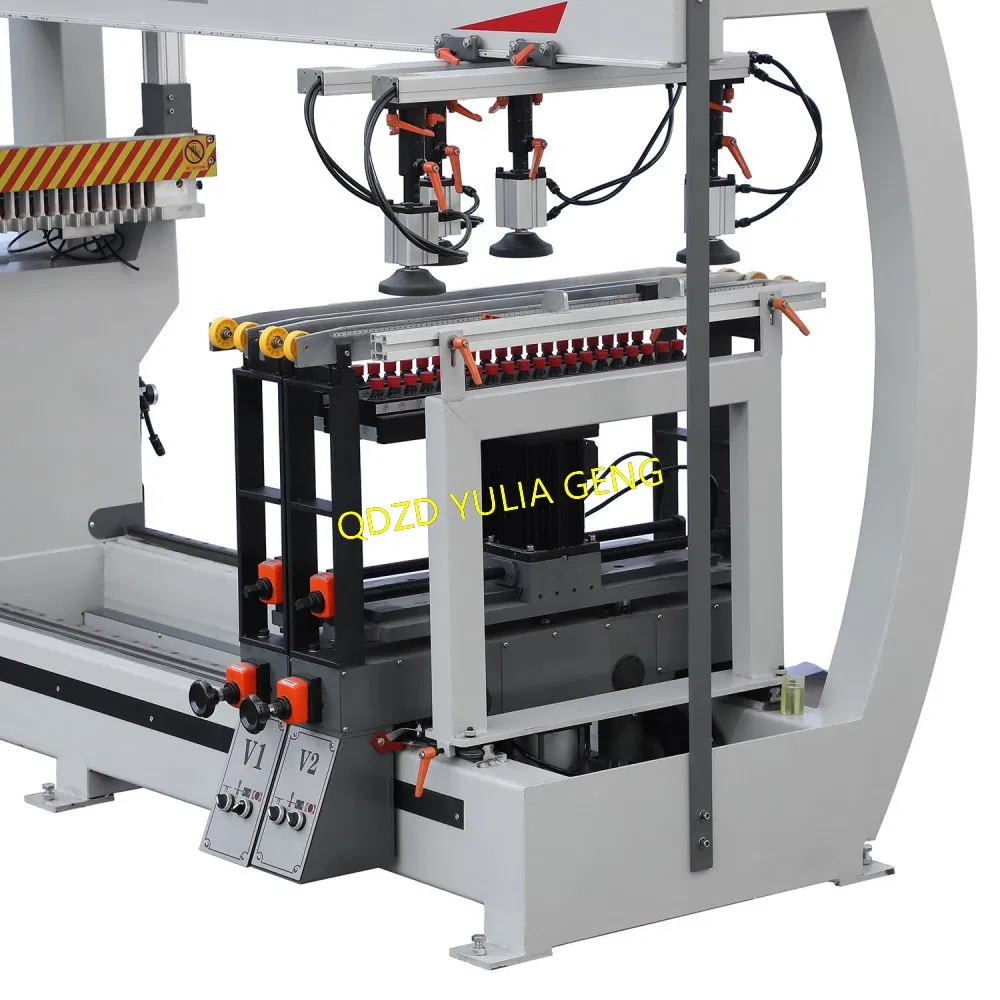

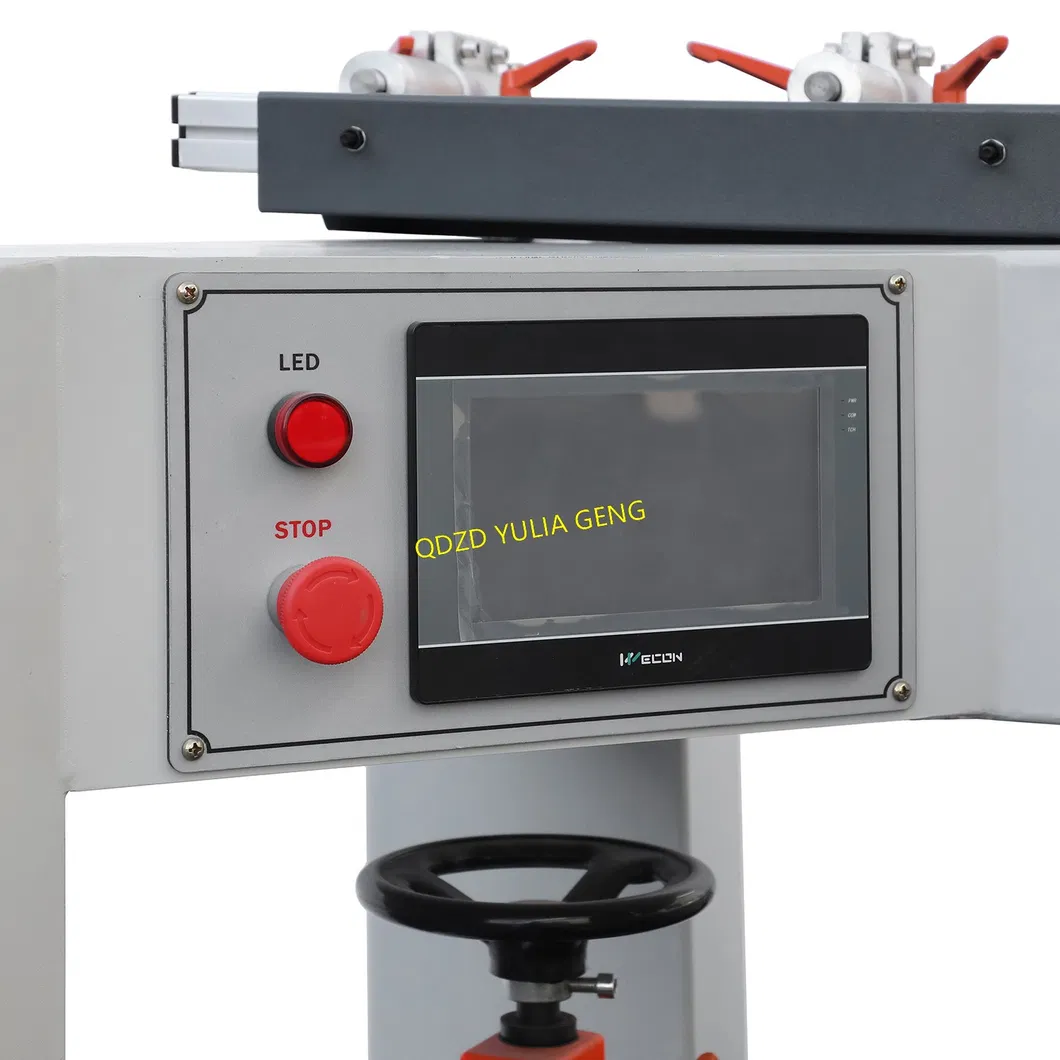

Equipped with brand-name touch screen and PLC industrial control system (optional), enabling automated control. The working process adopts pneumatic workpiece clamping and pneumatic tool feed, allowing continuous multiple operations with a single setting. The control panel can display total processing counts. The system offers powerful functionality with low failure rates, reducing dependence on operator skill levels and minimizing human errors.
Machine components are made from high-quality steel, undergoing high-temperature annealing and high-strength heat treatment to eliminate internal stresses, ensuring no deformation during long-term use. Features imported original drill rows, linear guides, sliders, and motors for durability. Drilling depth and distance are positioned using photoelectric induction switches (optional). Optional magnetic scale/ruler configuration provides higher positioning accuracy and repeatability, ensuring superior processing precision and consistency.
| Parameter Item | Specification Details |
|---|---|
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 63 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Total motor size | 4.5 kw |
| Suitable voltage | 380 v |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption for drilling ten panels per minutes approximately | 20L/min Approximately |
| Max. distance of the two longitudinal heads | 1850 mm |
| Height of working platform off the ground | 800 mm |
| Over size | 2600x2600x1600 mm |
| Packing size | 2700x1350x1650 mm |
| Weight | 1260 kg |

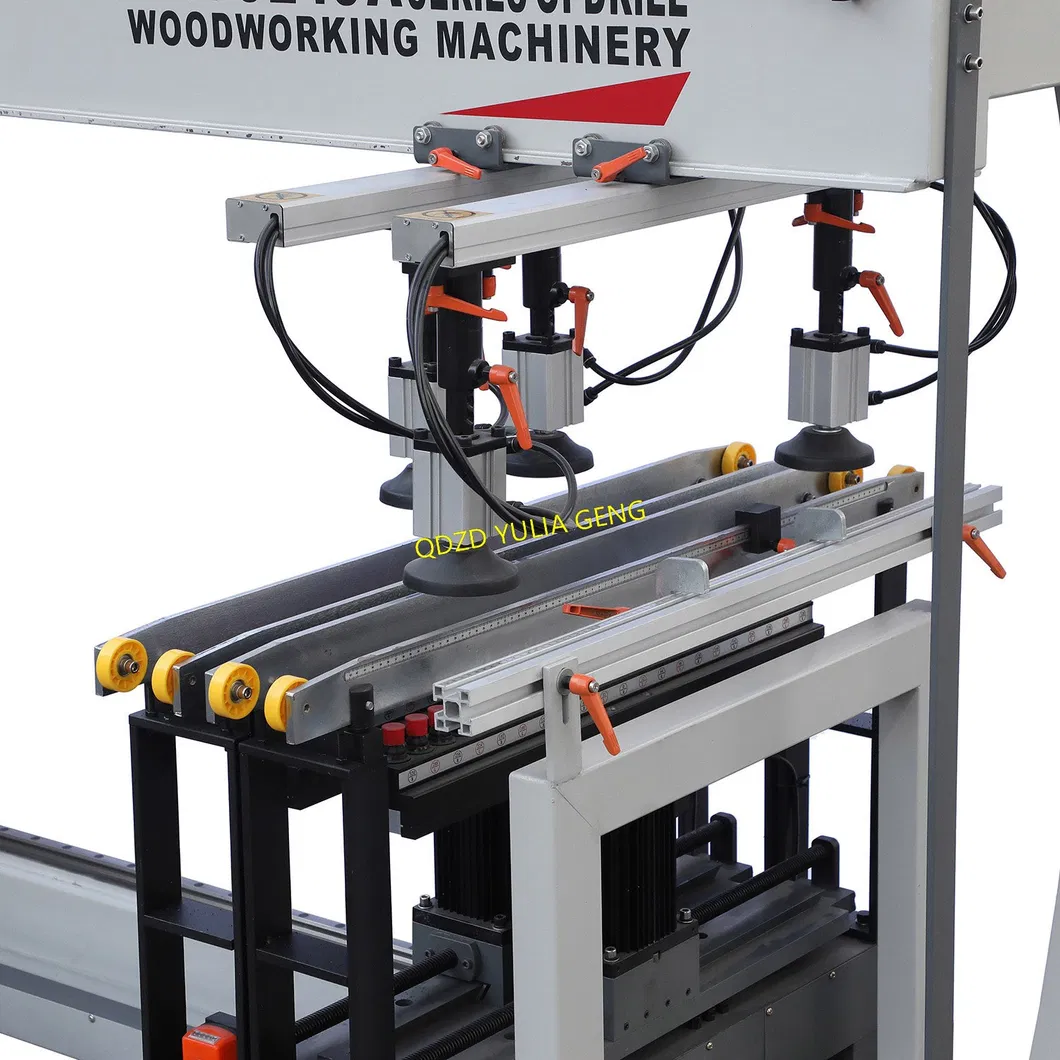

Simultaneously drills multiple holes across three parallel rows in a single operation, significantly improving production efficiency for panel furniture manufacturing.

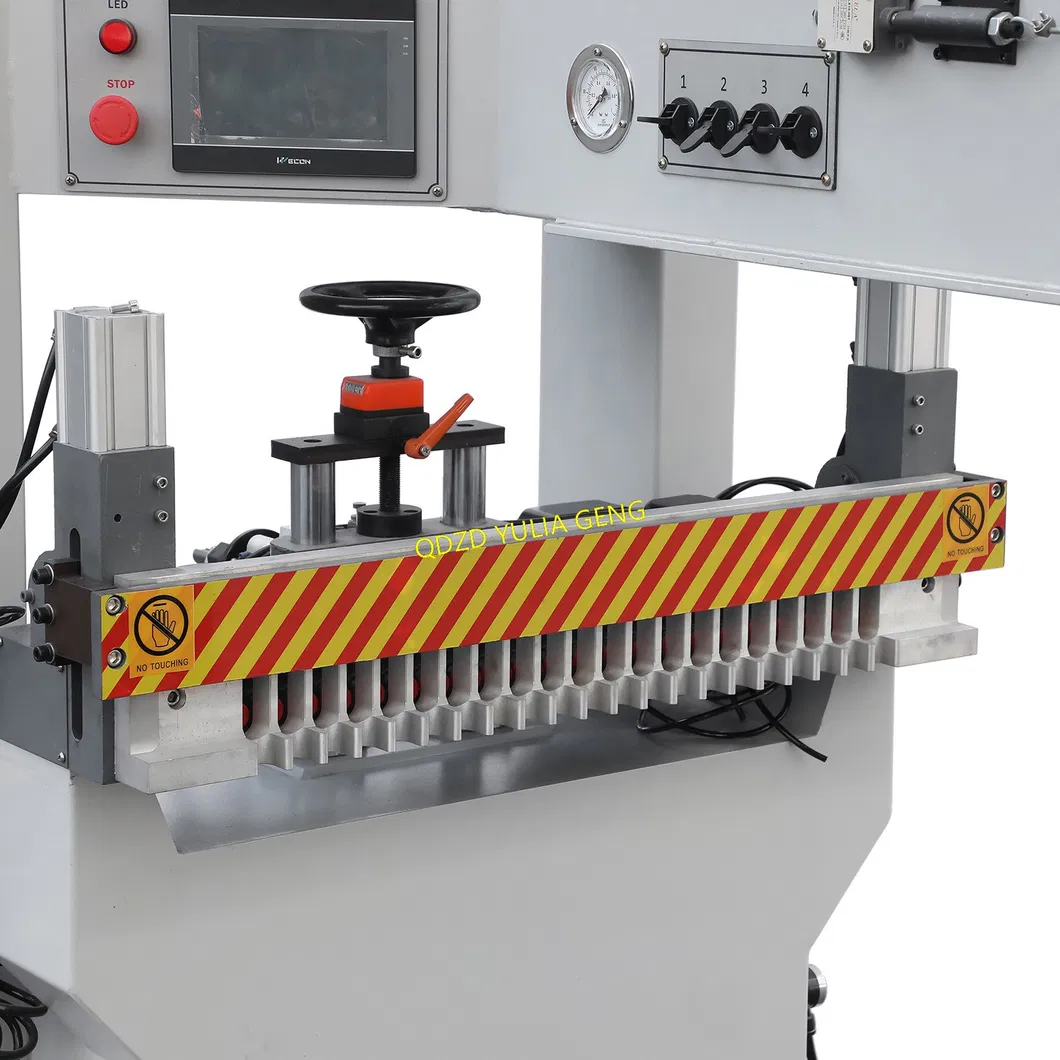

Flexible adjustment of drill bit positions along each row to accommodate various hole patterns and workpiece dimensions.

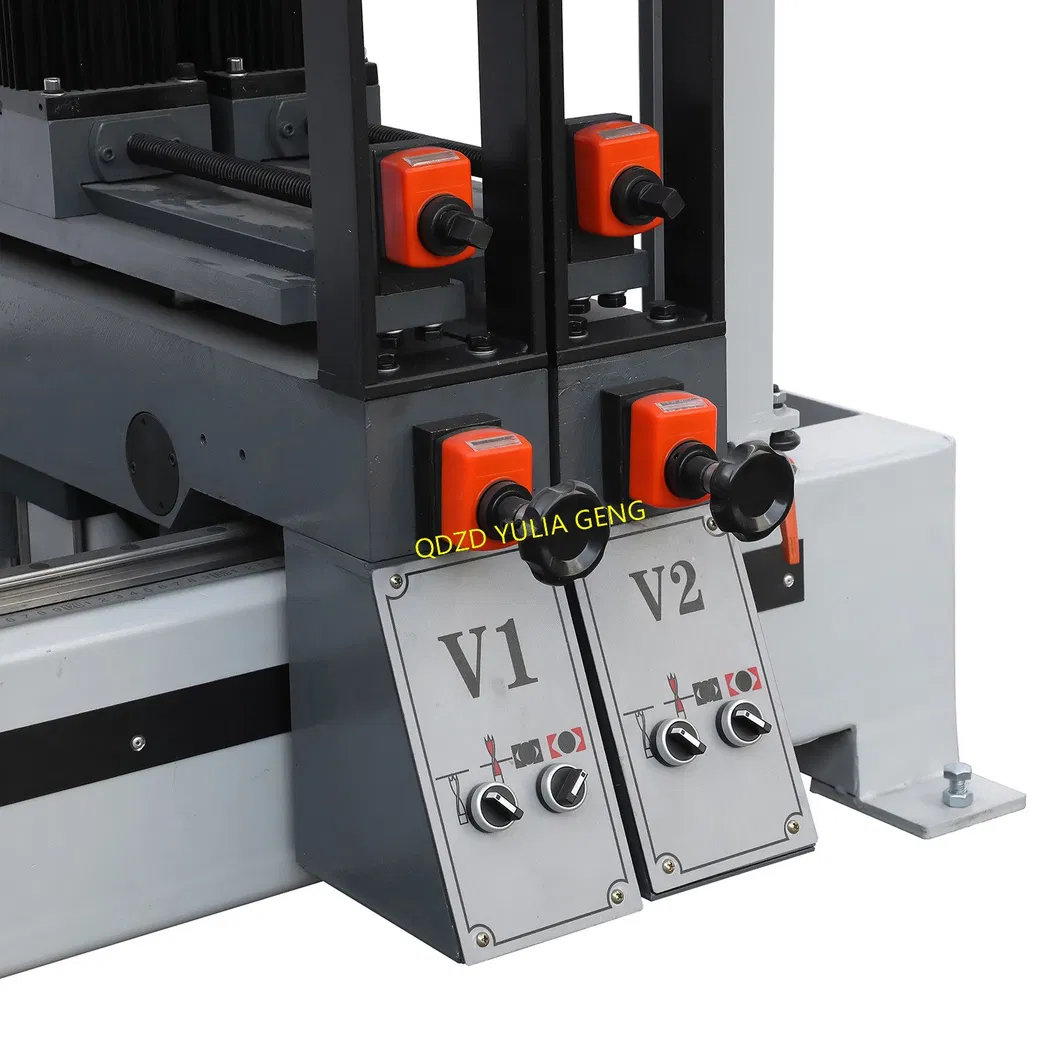

Precise control of drilling depth for consistent hole quality across different material thicknesses.
Capable of drilling holes on both the edges and surfaces of workpieces for dowel joints, hardware installation, and assembly connections.
Designed for high-volume manufacturing with quick setup, pneumatic clamping, and automated feed systems for continuous operation.
In today's competitive furniture manufacturing industry, equipment reliability equals productivity-and stability means profit.
As a National High-Tech Enterprise and officially recognized "Specialized, Refined, Distinctive, and Innovative" (SREDI) company, we have spent over a decade delivering high-quality, high-performance woodworking machinery backed by world-class service, precision engineering, and end-to-end support for furniture factories worldwide.
Uncompromising Quality You Can Trust
Every machine is built with premium-grade steel frames and globally trusted components-including German-style linear guides, Japanese servo systems, and Taiwanese precision gearboxes. Our production strictly adheres to ISO 9001 quality standards, and key models are CE-certified. We don't chase low prices-we engineer durability, consistency, and long-term value. Our machines boast industry-leading mean time between failures (MTBF), ensuring uninterrupted, high-efficiency production.
Expert Installation & Fast Commissioning - Ready to Run from Day One
Our field engineers average 10+ years of hands-on installation experience across automatic edge banders, CNC panel saws, multi-bore drilling units, and integrated production lines. Whether you're building a new factory or upgrading existing capacity, we provide free on-site layout planning, precision alignment, and turnkey installation-so your equipment runs smoothly, accurately, and at full capacity the moment it's powered on.
Advanced Technology to Solve Real Production Challenges
From complex curved panels and small-batch customization to retrofitting legacy machines, we thrive on tough challenges. With 18 national patents and 11 software copyrights, we offer rapid custom-engineering solutions. Our proprietary intelligent control system features parameter memory, self-diagnosis, remote assistance, and intuitive operation-making advanced automation accessible even to smaller workshops.
True One-Stop Procurement - Simplify Your Supply Chain

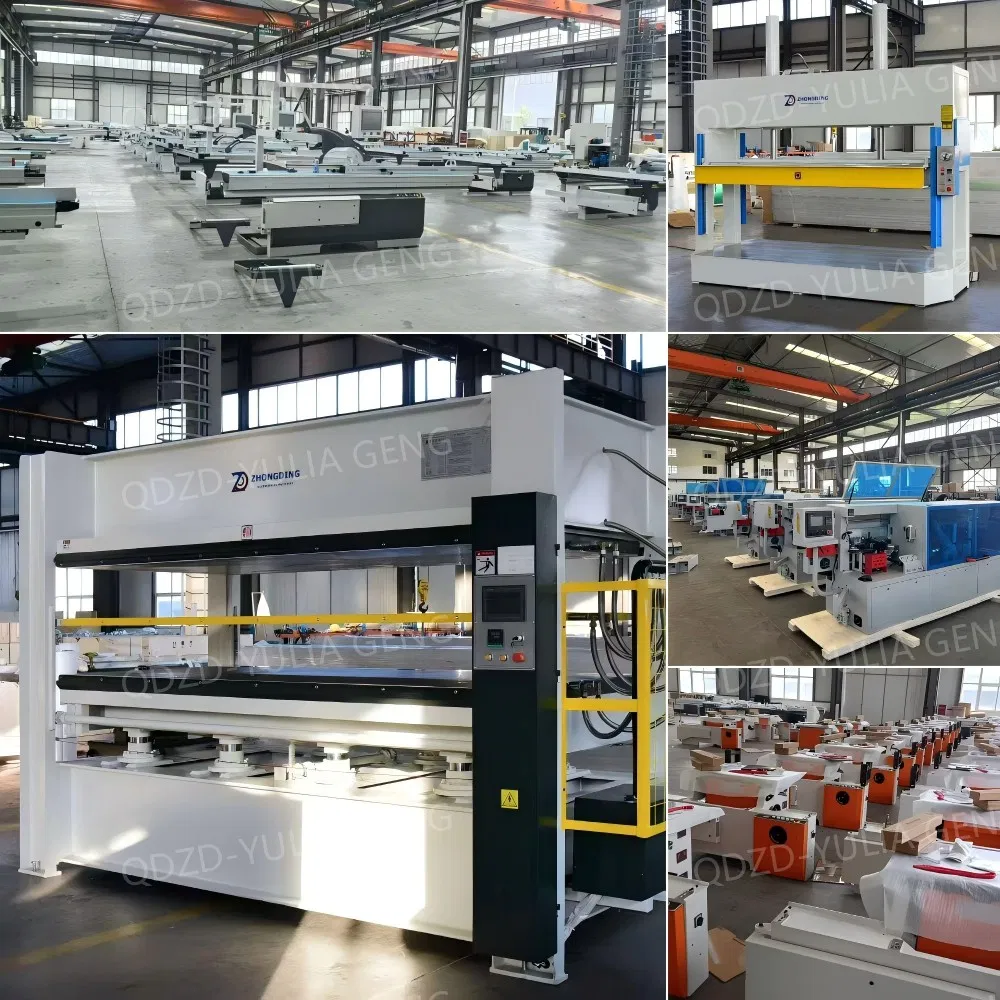

Why source from multiple vendors? We supply a complete range of woodworking machinery: cutting, edge banding, drilling, sanding, and packaging-all from one reliable source. We also offer professionally refurbished pre-owned machines at exceptional value, giving you flexibility without compromising performance. One partner. One solution. Full factory coverage.
Global After-Sales Support - Always Within Reach
We stand by our promise: 24-hour response, 48-hour solution proposal. For international clients, we provide real-time video support, remote diagnostics, and direct spare parts shipping. Plus, lifetime technical assistance ensures you're never left stranded-no matter where you operate.
Choosing our solutions isn't just buying a machine-it's partnering with a team that understands your production needs, respects your timeline, and delivers excellence at every step.
Whether you run a panel furniture factory, a custom cabinet shop, or an export-oriented woodcraft business-our machinery empowers your success through quality, intelligence, and unwavering support.
Let's build your smart workshop-together.
The machine supports a maximum drilling diameter of 35mm and a processing depth range of 0 to 60mm. It can process materials with a thickness range of 10 to 80mm.
It is suitable for processing various wood-based boards including particle board, medium-density fiberboard (MDF), solid wood panel, and engineered wood, making it highly versatile for cabinet and custom panel furniture manufacturing.
The triple-row multi-spindle system allows synchronous drilling of multiple hole lines in a single pass. This improves overall work efficiency by 2 to 3 times compared to single-row drilling machines.
No, all drill bits feature a quick-connector design. This allows operators to change drill bits quickly and easily, minimizing machine downtime and simplifying maintenance processes.
The system features a pneumatic workpiece clamping and tool feed mechanism. It can be equipped with an optional brand-name touch screen and a PLC industrial control system for advanced automated controls, remote diagnostics, and lower dependence on manual operator skill levels.
Accuracy is driven by linear guides, sliders, and high-quality heat-treated steel frames that prevent deformation. Optional photoelectric induction switches and magnetic scale/ruler configurations further elevate positioning accuracy and repeatability.
