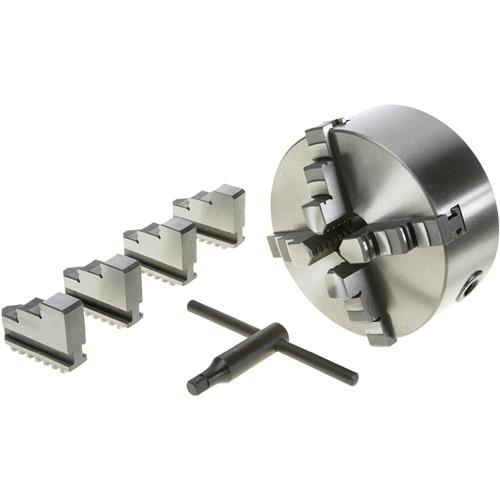

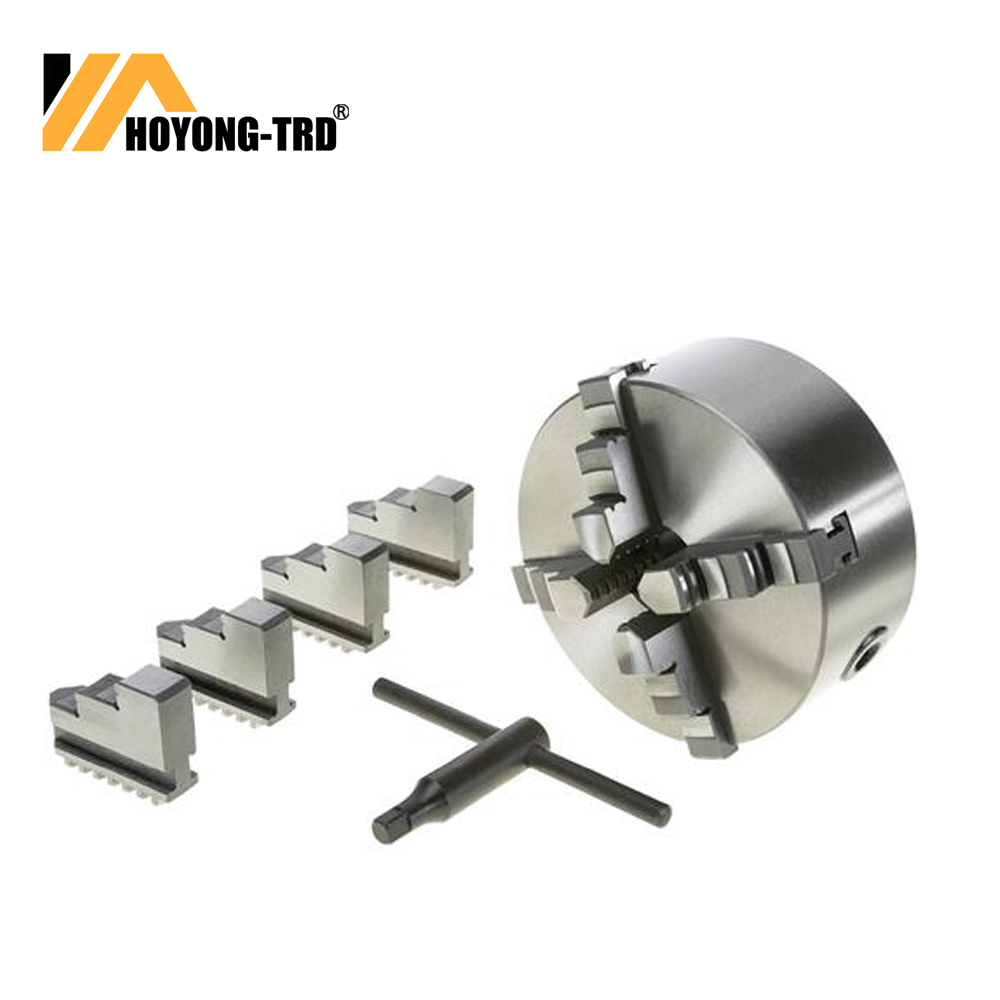

FOUR JAW SELF CENTRING CHUCK is suitable for batch process of square, eight-square prism accessories and features a high-precision self-centering mechanism.

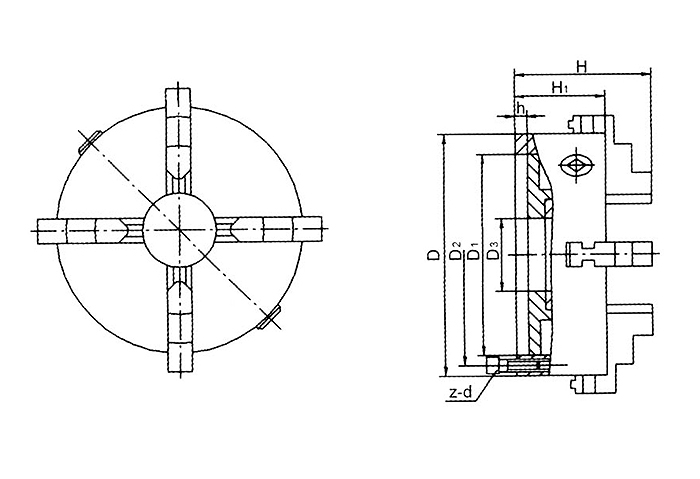

| Size D | D1 | D2 | D3 | H | H1 | h | Z-d |
|---|---|---|---|---|---|---|---|
| K1280 | 55 | 66 | 16 | 66 | 50 | 3.5 | 3-M6 |
| K12100 | 72 | 84 | 22 | 74.5 | 55 | 3.5 | 3-M8 |
| K12125 | 95 | 108 | 30 | 84 | 58 | 4 | 3-M8 |
| K12130 | 100 | 115 | 30 | 86 | 60 | 3.5 | 3-M8 |
| K12160 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 |
| K12160A | 142 | 40 | 109 | 65 | 5 | 3-M8 | |
| K12165 | 130 | 145 | 40 | 96.5 | 66.5 | 4.5 | 3-M8 |
| K12165A | 145 | 40 | 110.5 | 66.5 | 4.5 | 3-M8 | |
| K12190 | 155 | 172 | 55 | 109 | 75 | 5 | 3-M10 |
| K12190A | 172 | 55 | 122 | 75 | 5 | 3-M10 | |
| K12200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
| K12200A | 65 | 122 | 75 | ||||
| K12250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
| K12250A | 226 | 80 | 136 | 80 | 5 | 3-M12 | |
| K12315 | 260 | 285 | 100 | 142.5 | 90 | 6 | 3-M16 |
| K12315A | 285 | 100 | 155.5 | 90 | 6 | 3-M16 | |
| K12320 | 270 | 290 | 100 | 142.5 | 90 | 6 | 3-M16 |
| K12320A | 290 | 100 | 155.5 | 90 | 6 | 3-M16 | |
| K12325 | 272 | 296 | 100 | 142.5 | 90 | 6 | 3-M16 |
| K12325A | 296 | 100 | 155.5 | 90 | 6 | 3-M16 | |
| K12380 | 325 | 350 | 130 | 155.5 | 100 | 6 | 3-M16 |
| K12380A | 350 | 130 | 171.5 | 100 | 6 | 3-M16 | |
| K12400 | 340 | 368 | 130 | 155.5 | 100 | 6 | 3-M16 |
| K12400A | 368 | 130 | 171.5 | 100 | 6 | 3-M16 | |
| K12500A | 440 | 465 | 200 | 203 | 115 | 6 | 6-M16 |
| K12630A | 560 | 595 | 260 | 218 | 130 | 7 | 6-M16 |
| K12800A | 710 | 760 | 385 | 249 | 148 | 8 | 6-M20 |
| K121000A | 910 | 950 | 460 | 266 | 165 | 8 | 6-M24 |
