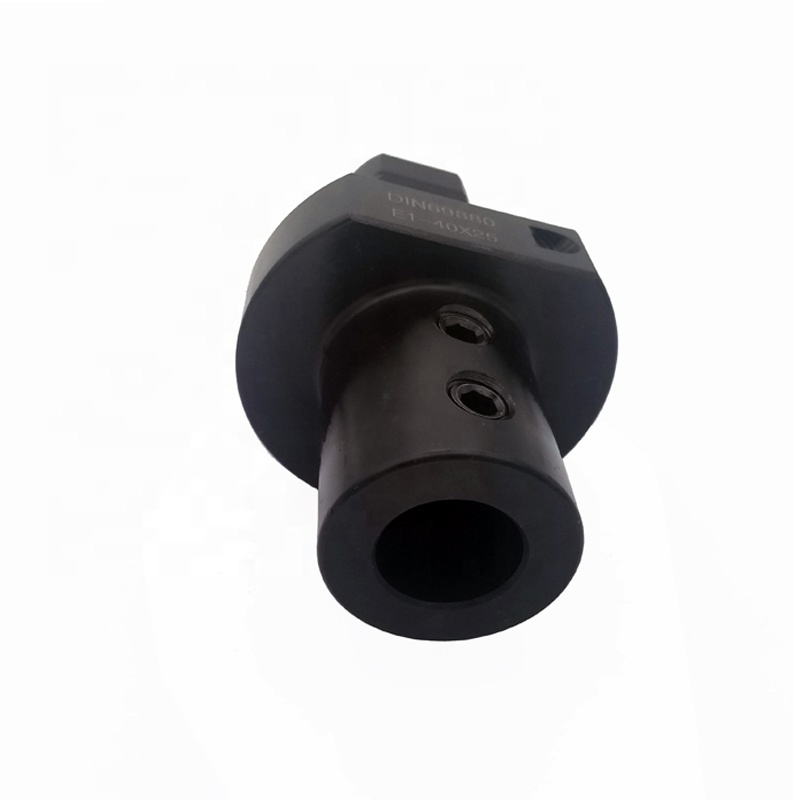

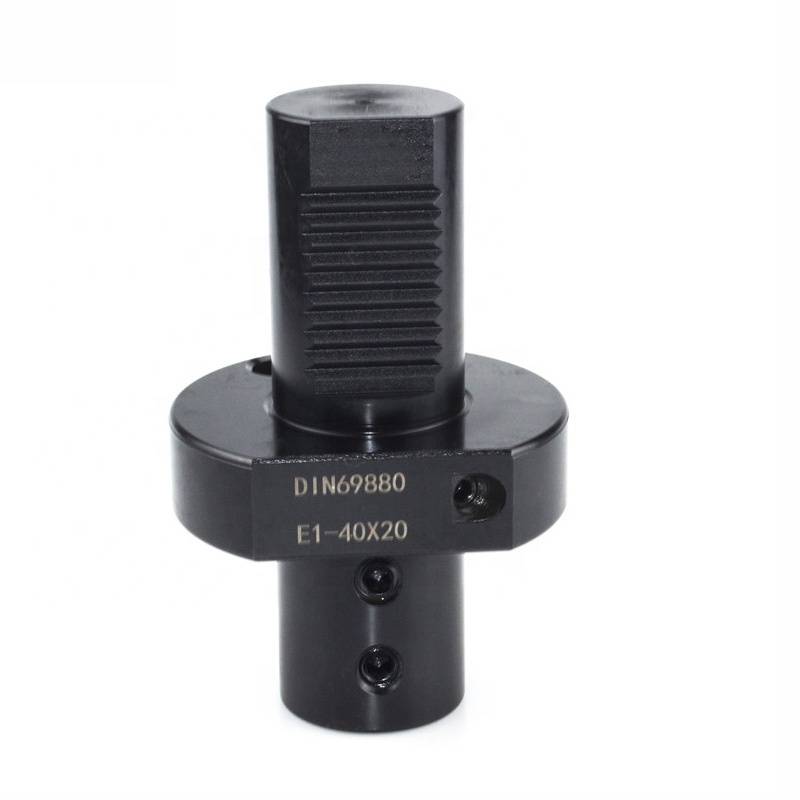

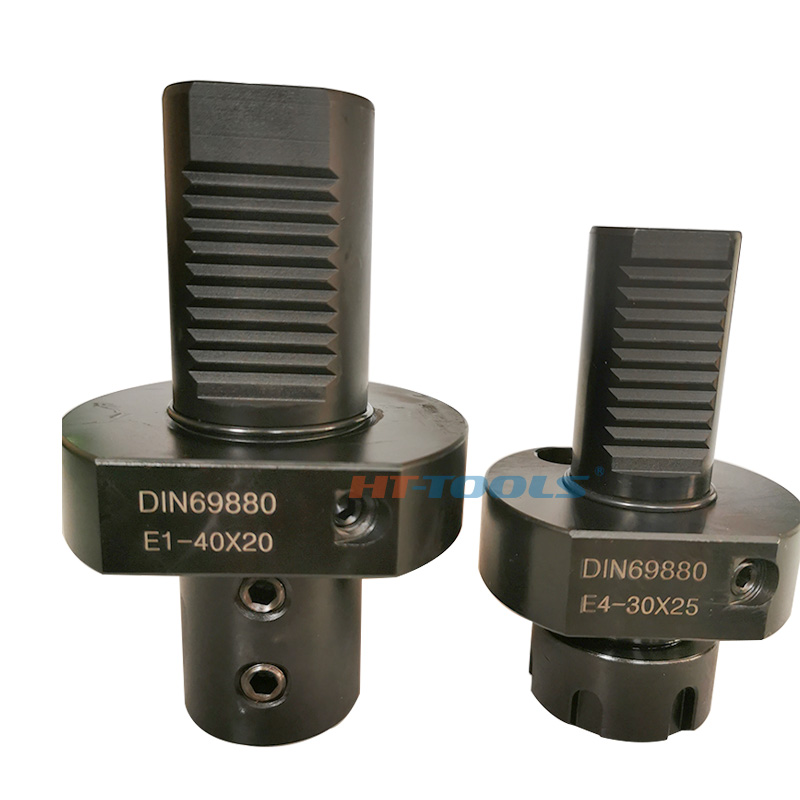

It is an essential machine tool accessory for working centers of CNC machines. We produce according to the German DIN69880 standard, featuring a highly developed structure, convenient configuration, and alternative options. It can satisfy various machining requirements including turning, drilling, boring, and milling. With a wide range of tool holders, you can easily allocate different types of tools and accessories.

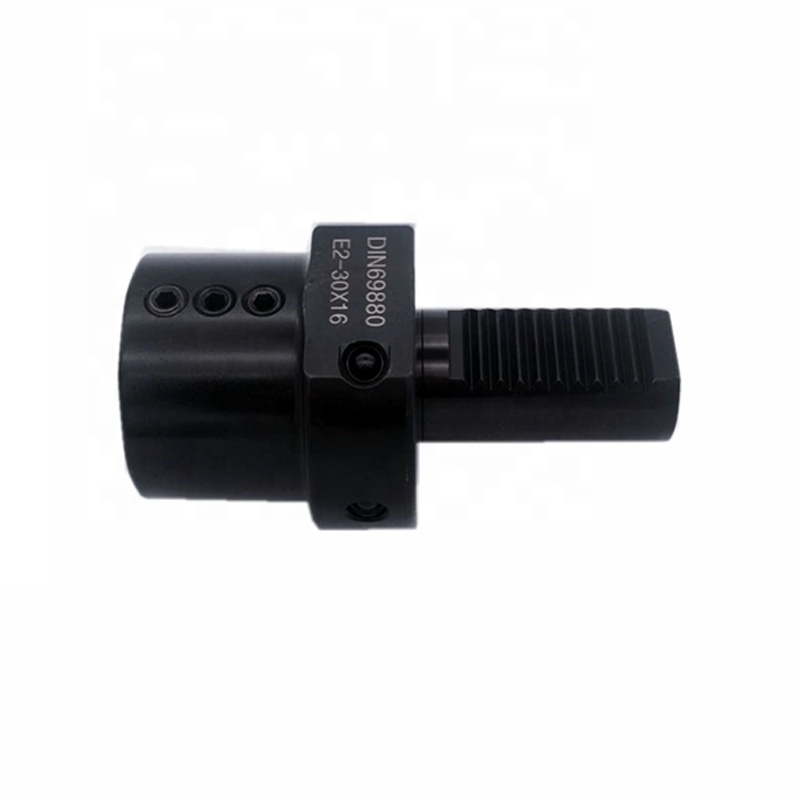

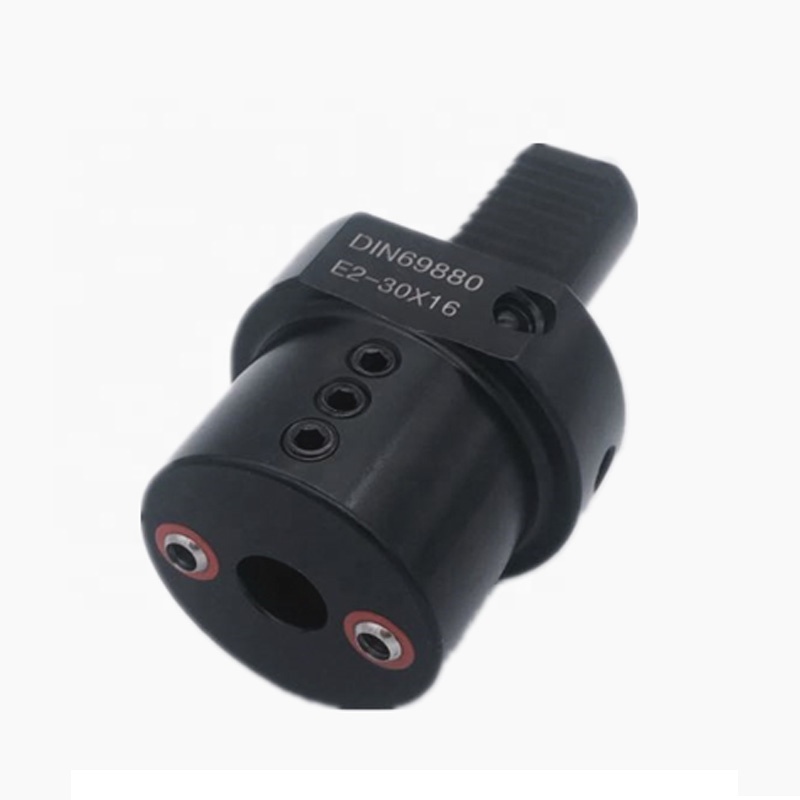

Designed specifically for boring bars with cylindrical shanks.
| Order No. | d1 | d2 | d3 | d4 | d5 | h1 | h2 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|---|
| E2-16X6 | 16 | 6 | 40 | 32 | M6 | 18 | 18 | 13 | 44 | 34 |
| E2-16X8 | 16 | 8 | 40 | 32 | M6 | 18 | 18 | 13 | 44 | 34 |
| E2-16X10 | 16 | 10 | 40 | 32 | M6 | 18 | 18 | 13 | 44 | 34 |
| E2-20X8 | 20 | 8 | 50 | 40 | M6 | - | 23 | 18 | 50 | 41 |
| E2-20X10 | 20 | 10 | 50 | 40 | M6 | - | 23 | 18 | 50 | 41 |
| E2-20X12 | 20 | 12 | 50 | 40 | M8 | - | 23 | 18 | 50 | 41 |
| E2-20X16 | 20 | 16 | 50 | 40 | M8 | - | 23 | 18 | 50 | 41 |
| E2-20X20 | 20 | 20 | 50 | 50 | M8 | - | 23 | 18 | 50 | 41 |
| E2-20X25 | 20 | 25 | 50 | 50 | M8 | - | 23 | 18 | 60 | 51 |
| E2-30X6 | 30 | 6 | 68 | 55 | M6 | 28 | 30 | 22 | 60 | 41 |
| E2-30X8 | 30 | 8 | 68 | 55 | M6 | 28 | 30 | 22 | 60 | 51 |
| E2-30X10 | 30 | 10 | 68 | 55 | M6 | 28 | 30 | 22 | 60 | 51 |
| E2-30X12 | 30 | 12 | 68 | 55 | M8 | 28 | 30 | 22 | 60 | 51 |
| E2-30X16 | 30 | 16 | 68 | 55 | M8 | 28 | 30 | 22 | 60 | 51 |
| E2-30X20 | 30 | 20 | 68 | 55 | M8 | 28 | 30 | 22 | 60 | 51 |
| E2-30X25 | 30 | 25 | 68 | 55 | M8 | 28 | 30 | 22 | 60 | 51 |
We mainly produce comprehensive machinery accessories:
Please send us an inquiry with your technical requirements!
We are located in the largest production base of machine tool accessories in China. We specialize in researching, producing, and developing a wide variety of high-quality machine accessories. All of our products are manufactured to rigorous specifications and are deeply trusted by global customers.
A: All of our VDI tool holders are manufactured strictly in accordance with the German DIN69880 standard to ensure high compatibility and standard fitment in CNC centers.
A: They are compatible with standard ER collets including ER16, ER20, ER25, ER32, and ER40. Please select the corresponding model according to your tooling requirements.
A: E2 Type VDI tool holders are engineered specifically to clamp boring bars and cylindrical shank tools securely for high-precision boring, internal turning, and drilling operations.
A: Yes. Because they are built to DIN69880 specifications, these VDI tool holders offer high rigidity, precise runout control, and alternate configurations to meet turning, milling, and heavy boring needs.
A: Yes, we offer comprehensive OEM customization services. We can produce machinery accessories based on your custom specifications, drawings, and technical parameters.
A: We maintain large capacities and fast manufacturing flows to guarantee short delivery times. Products are carefully packed in protective packaging and shipped safely to globally located buyers.
