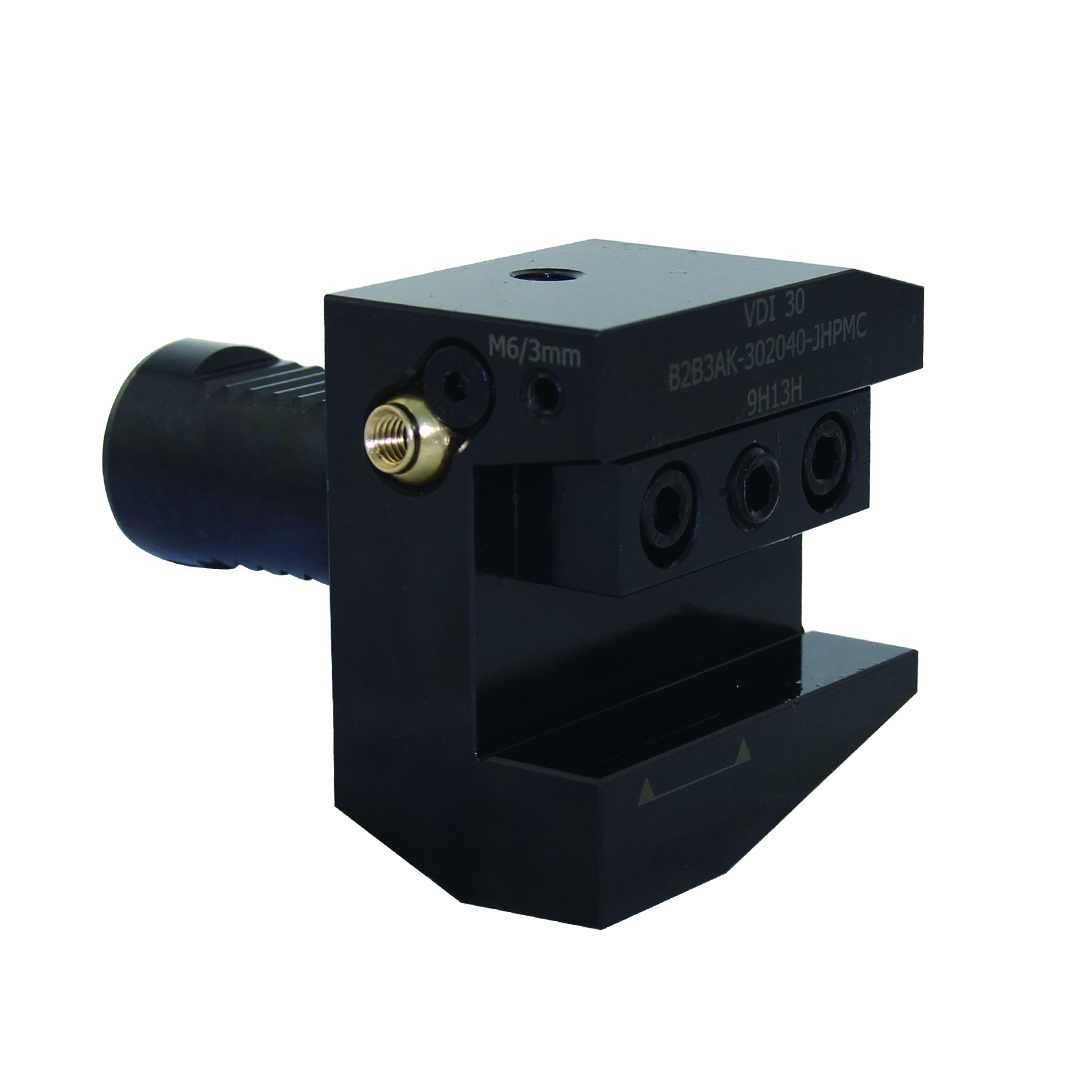

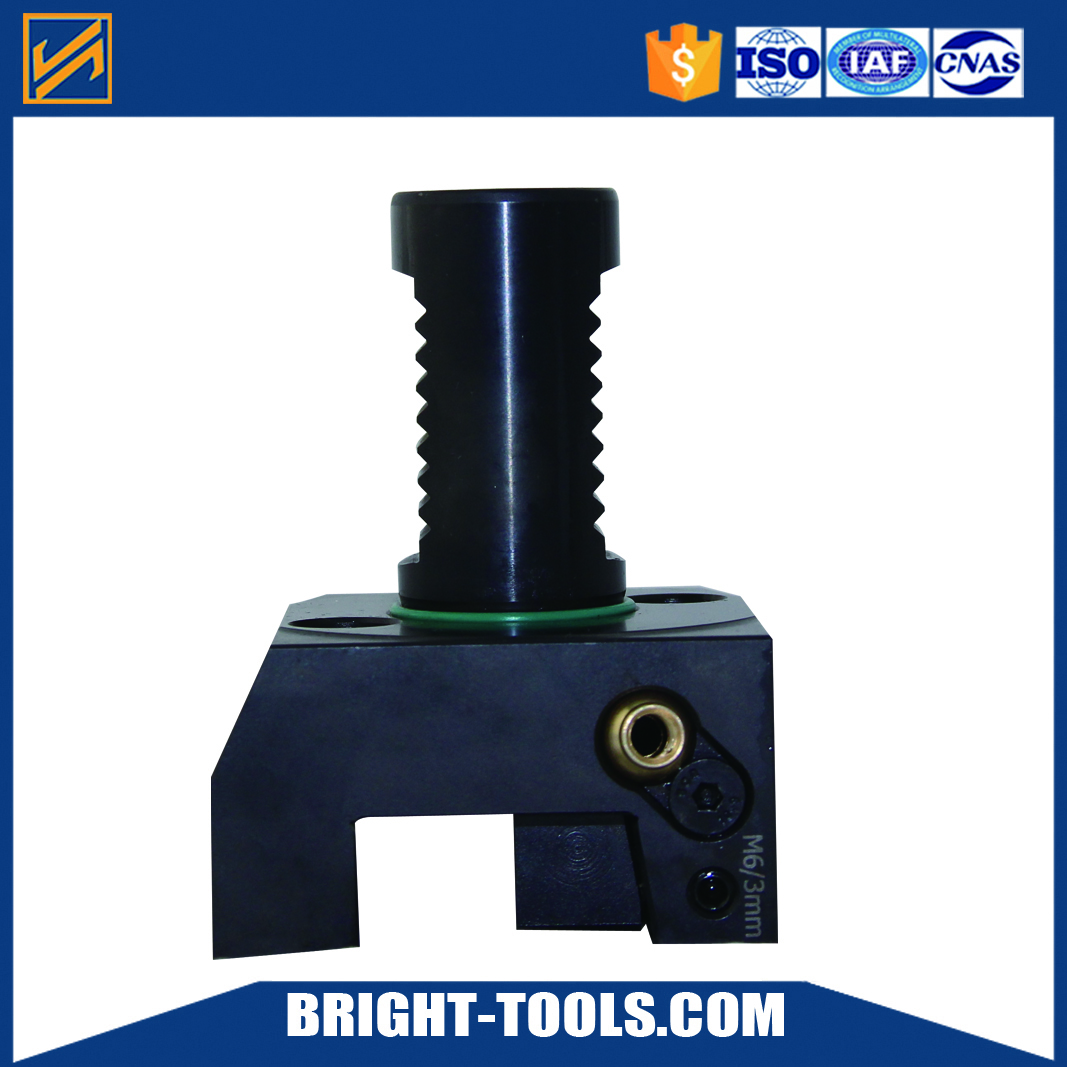

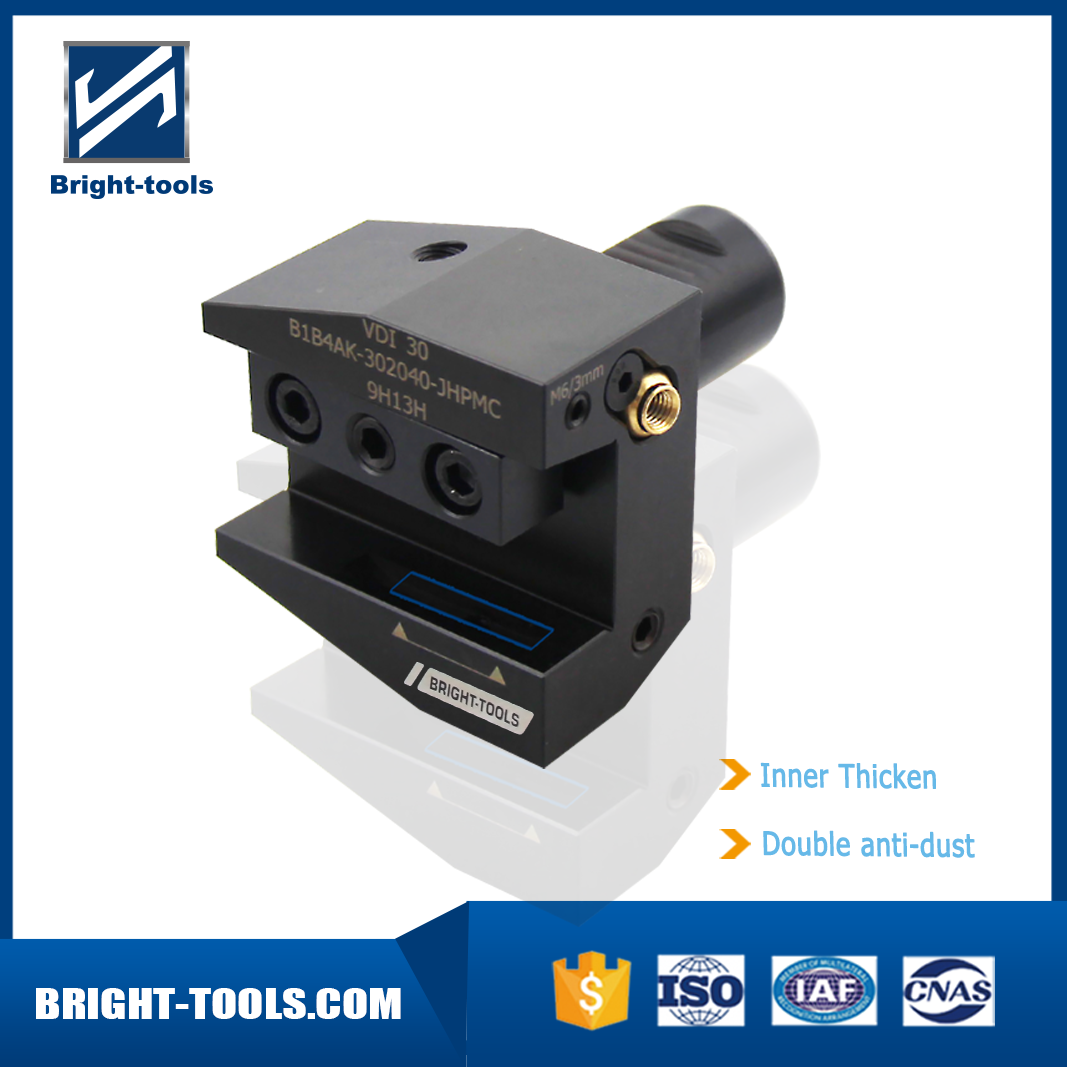

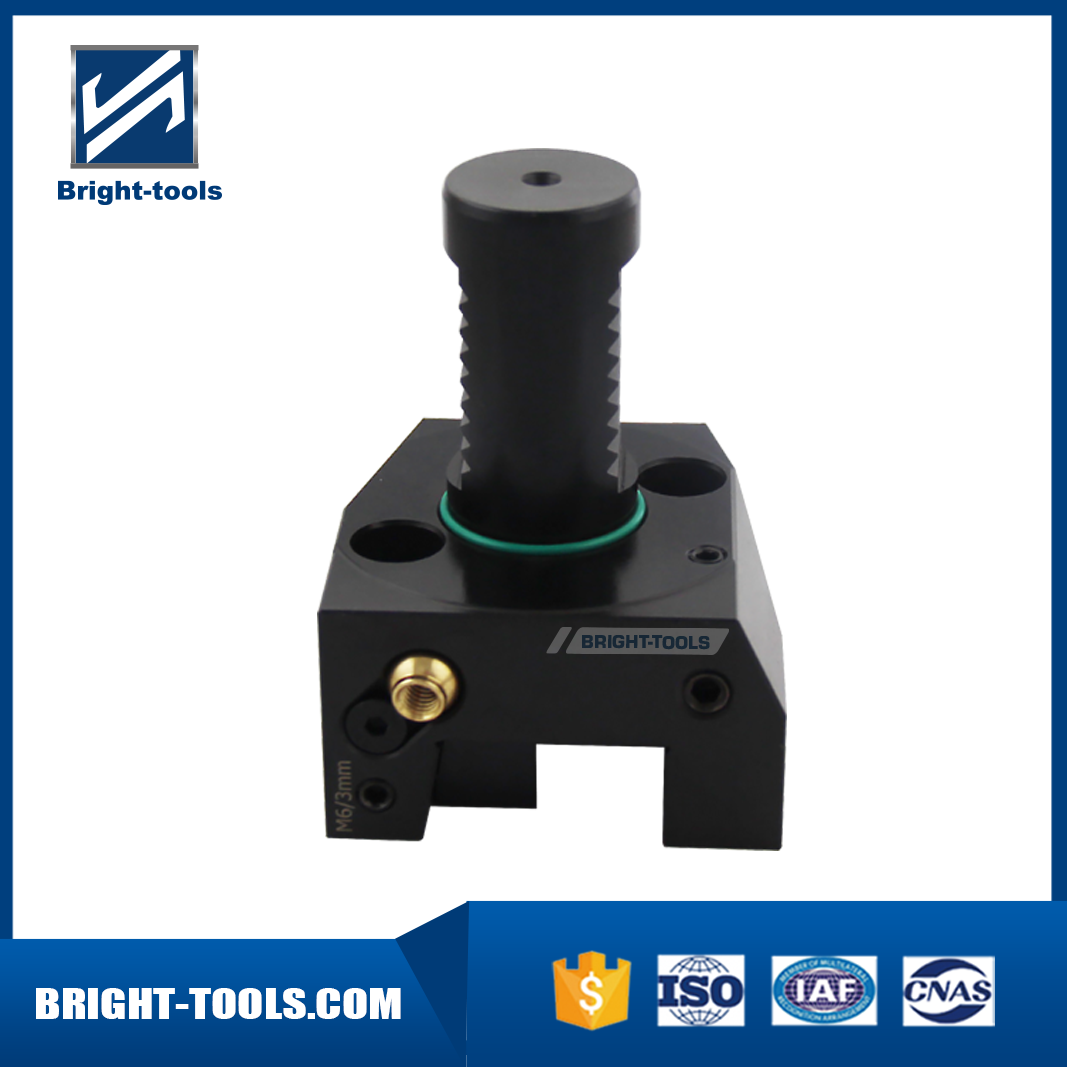

VDI Tool Holder B Type
Type B1/B3/B5/B7 VDI Tool Holders Static (DIN69880) Turret Face Mounting, Radial tool holder, inverted, right-hand.
We have the most complete range of tool holders as BT, DIN69871, CAT, HSK, etc. VDI Tool Holders are with DIN 69880 standard, common types are Form B1, B2, B3, B4, B5, B6, B7, B8, C1, C2, C3, C4, D1, D2, E1, E2, E3, E4 and Form F.
Our Radial VDI Tool Holders Static B1/B3/B5/B7 Types are cut from solid pretreated material. They are hardened up to HRC-55~60, and then precisely ground to the highest accuracy standards.
VDI Tool Holder B Type
VDI Tool Holder Specifications
Size d1 b1 b2 b3 h1 h5 h6 l1 l2
B1-16x12x24 16 42 23 5 12 20 22 13 24
B1-16x12x34 16 42 23 5 12 20 22 23 34
B1-20x16x30 20 55 30 7 12/16 25 30 16 30
B1-20x16x40 20 55 30 7 12/16 25 30 26 40
B1-25x16x30 25 55 30 7 12/16 25 30 16 30
B1-25x16x40 25 55 30 7 12/16 25 30 26 40
B1-30x20x40 30 70 35 10 20/16 28 38 22 40
B1-30x20x60 30 70 35 10 20/16 28 38 42 60
B1-40x25x44 40 85 42.5 12.5 25/20 32.5 48 22 44
B1-50x32x55 50 100 50 16 32/25 35 60 30 55
B1-60x32x60 60 125 62.5 16 32/25 42.5 62.5 30 60
B1-80x40x75 80 160 80 20 40/32 55 80 40 75
Product Details
VDI Tool Holder B Type Specifications
Taper Shank Standard: DIN 69880
Suitable Taper Shank: VDI
Outlet Water: Conventional Outlet Water
Outlet Way: Internal Water + Outlet Water
Hilt Hardness: HRC 50-55
Taper Shank Size: VDI16/20/25/32/40/50/60/80
Applicable Machine: Turning Milling Compound Machine, Turning Center, etc.
VDI Tool Holder Technical Specifications

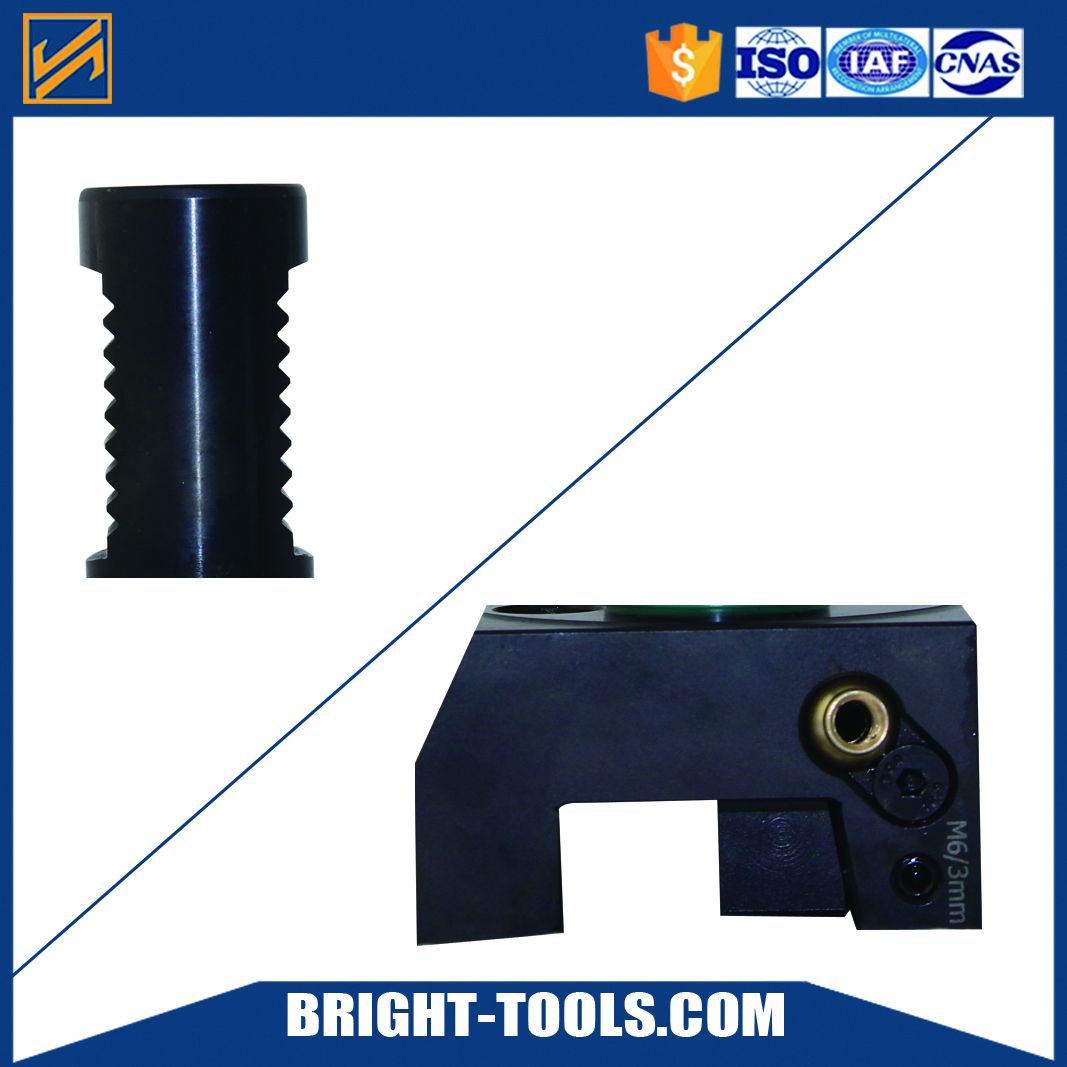

High Locking Strength Detail
High Locking Strength
Adjustable Cooling Tube
Adjustable, extra cooling tube can be added.
High Hardness
High hardness and wear resistance
Shim Separately
Shim can be ordered separately, used for small size tool holder.
Probe Holder Usage
Usage Diagram 1
Usage Diagram 2
VDI System Assembly
  • VDI Provides a fast and accurate way of affixing tools to the Turret.
  • Metric Available Upon Request.
  • Tool Changes are performed in seconds. Toolholders can be Preset by Cam Operated Clamping System.
  • Used for Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo Hardinge.
  • Toolholders are precision ground and Hardened.
  • Black-oxide finish for long lasting protection.
Packing and Shipping
Packaging Detail
Packing
The packaging of the product should be wrapped in plastic transparent packaging bags, and then packed into cylindrical plastic buckets or paper boxes. We can laser mark your logo and pack according to your requirement.
Shipping Options
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Frequently Asked Questions
Q Where is your factory located? Are you a manufacturer or trading company?
Our factory is located in China. We are a professional manufacturer of high-quality tool holders.
Q Can you provide a free sample?
Yes, we can offer a free sample if we have the item in stock. However, you will need to cover the freight costs yourself.
Q What is the delivery time?
Generally, it takes 7-10 days if the goods are in stock. If the goods are not in stock, it takes 15-30 days, depending on the quantity and delivery specifications.
Q What is your Minimum Order Quantity (MOQ)?
A minimum order of 1 set is acceptable if the product is currently in stock.
Q Do you provide after-sales service?
Yes! Please do not hesitate to contact us if you encounter any problems during the use of our products. We will do our best to help you resolve any issues as quickly as possible. Your feedback is vital to our improvement.
Q How can we trust your quality?
We maintain a strict quality control system. All products must be inspected and thoroughly tested prior to sale. Integrity is our company's core belief and dogma, ensuring a bright future for our partnership.
