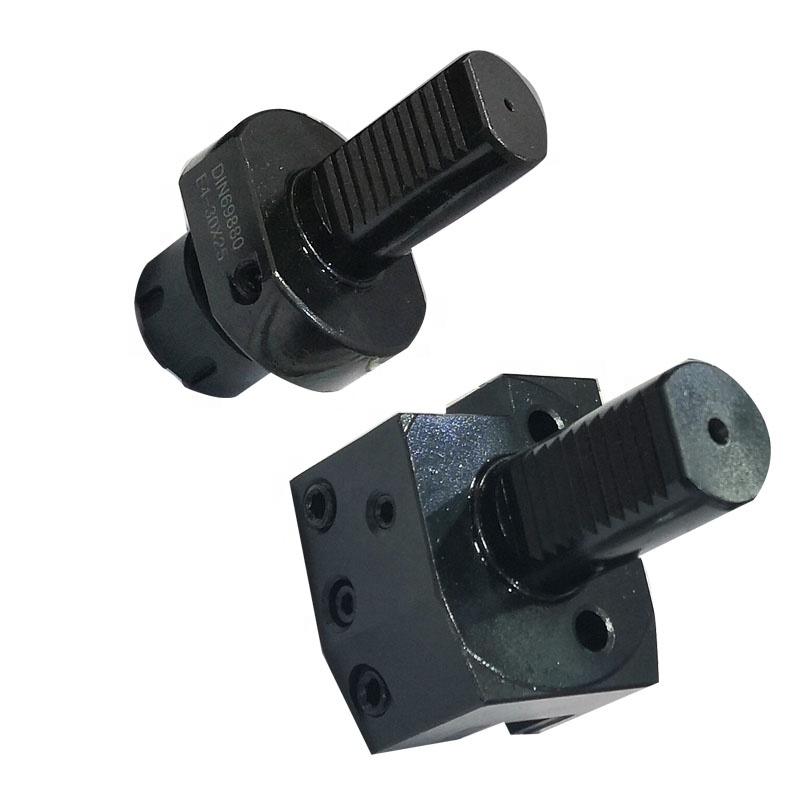

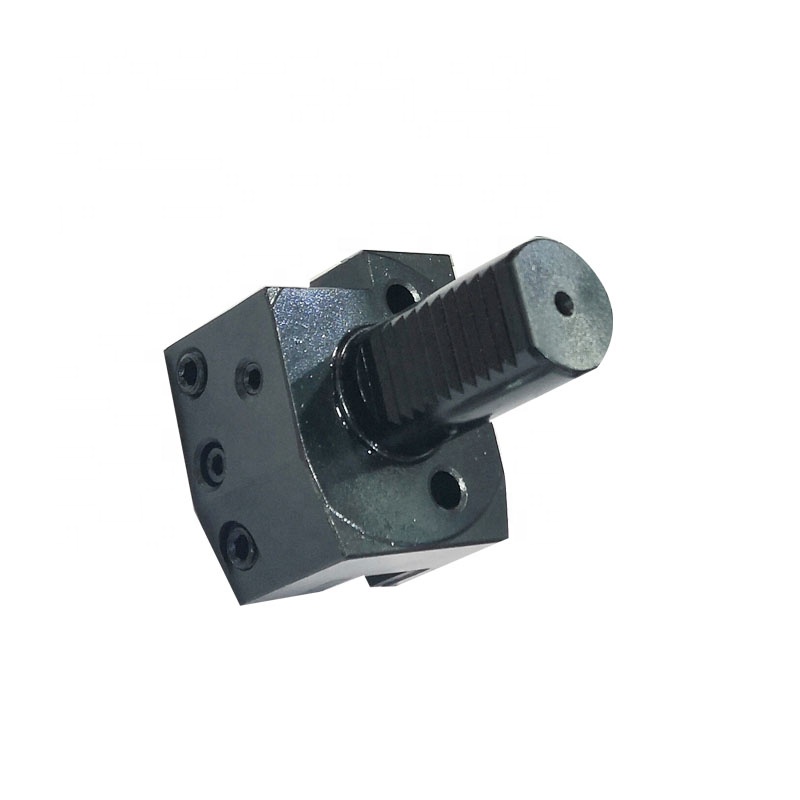

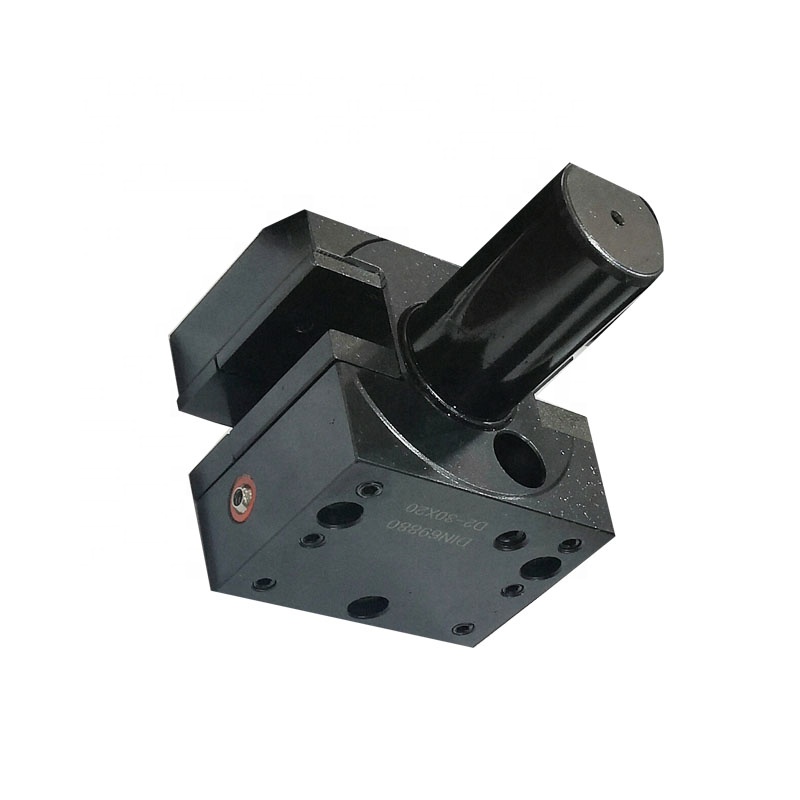

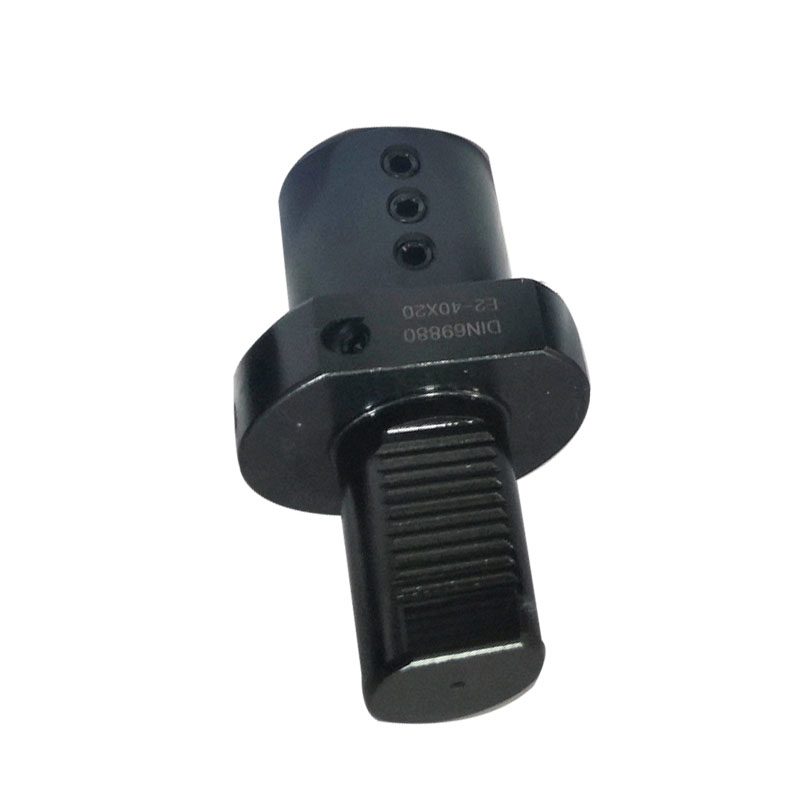

High Precision VDI Tool Holders B C D E Type Lathe Turning Tool Holders VDI30 VDI40 Axial Right Tool Holder

Product Description

Product Description
Product Name High precision VDI tool holders B C D E type lathe turning tool holders VDI30 VDI40 axial right tool holder
Product Model VDI30 VDI40
MOQ 1PC
Material Alloyed steel
Precision 0.005mm
VDI Tool holder
VDI Tool Holder
It is an essential machine tool accessory for the working center of CNC machines, manufactured according to the German DIN69880 standard. It features a developed structure, high accuracy, and convenient alternative setups.
It can satisfy various machining needs including turning, drilling, boring, and milling with different tool holders and accessories.

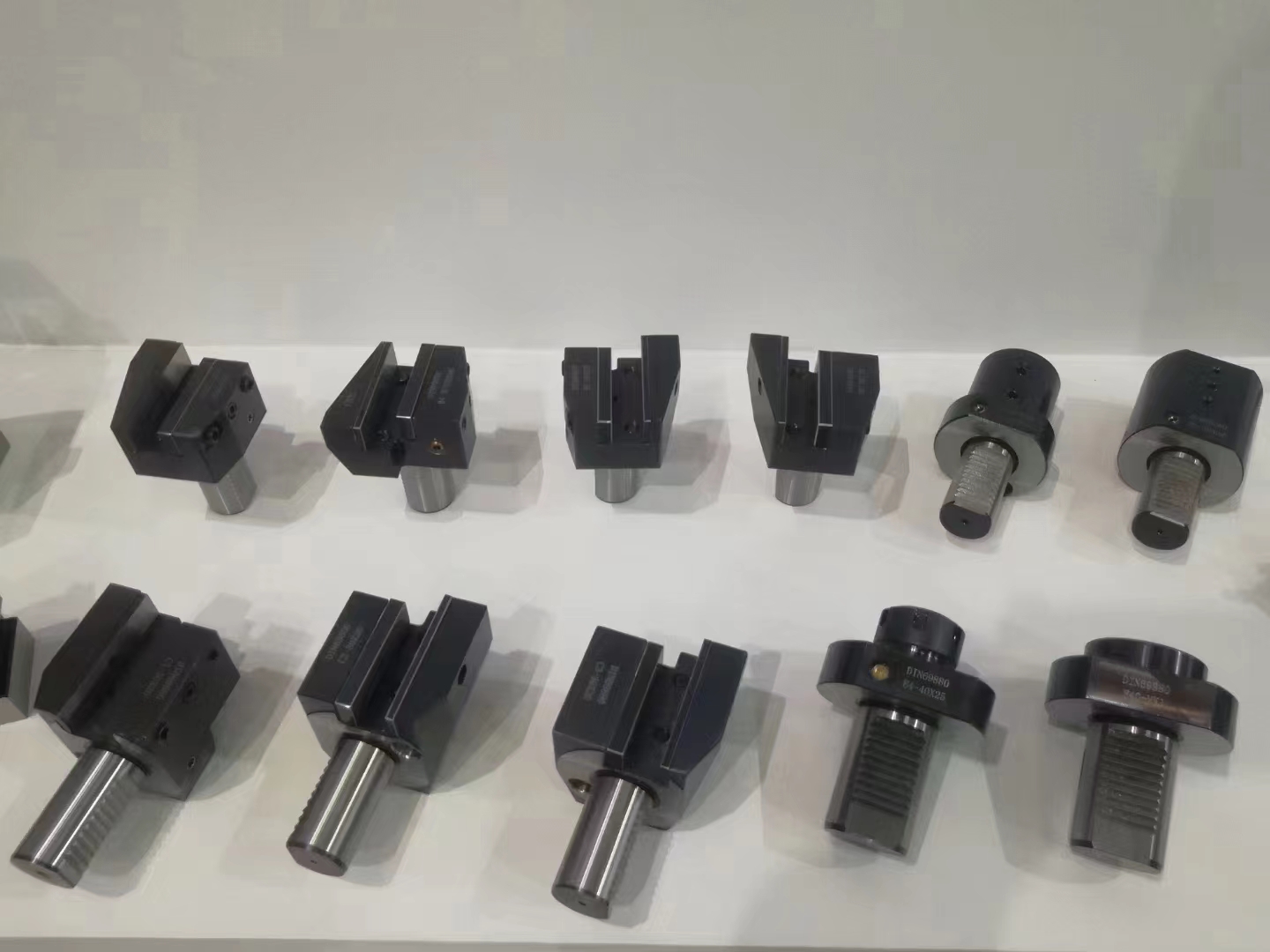

VDI Tool Holder Showcase 1

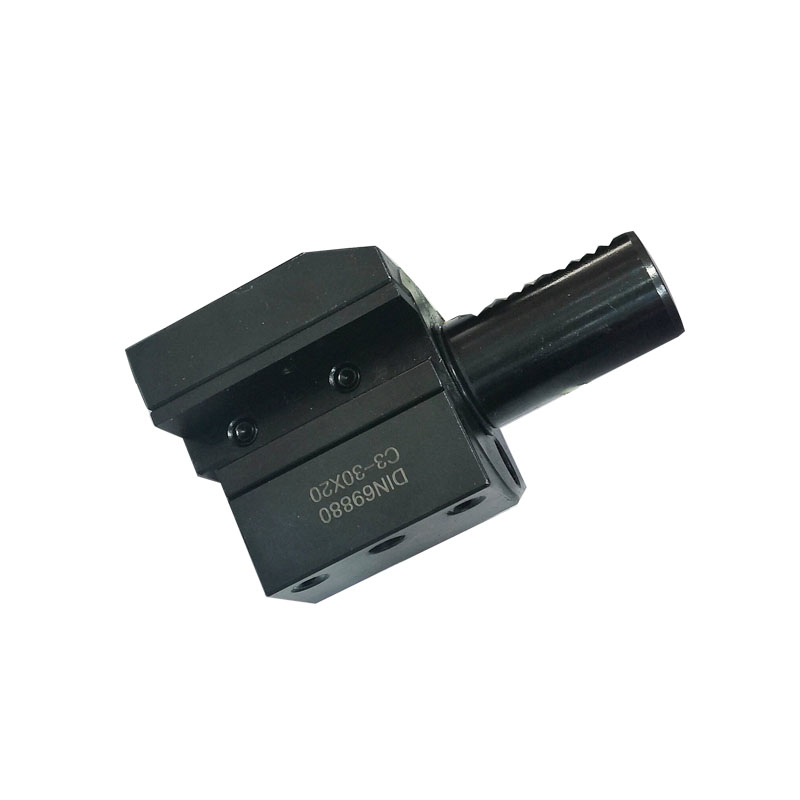

VDI Tool Holder Showcase 2

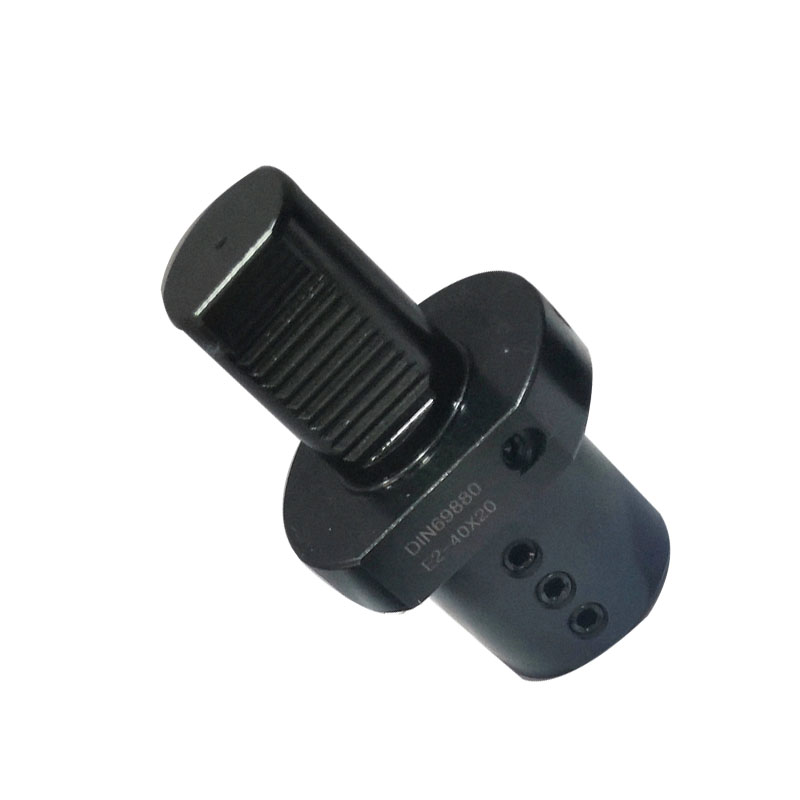

VDI Tool Holder Technical View 1
VDI Tool Holder Technical View 2
Specification

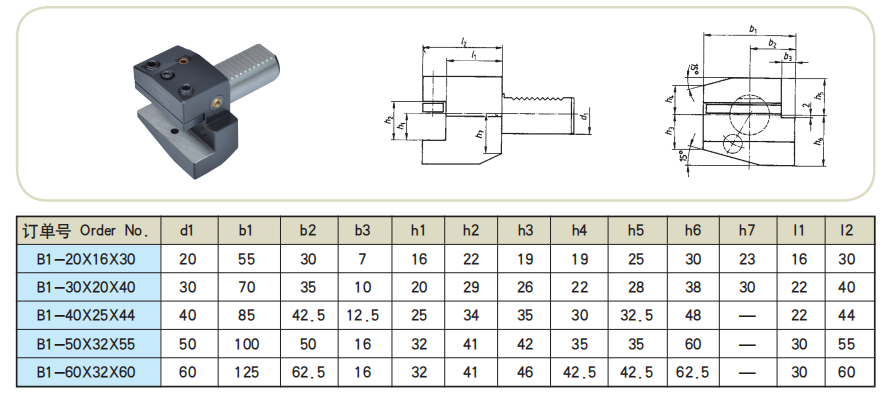

Main Specification Drawing

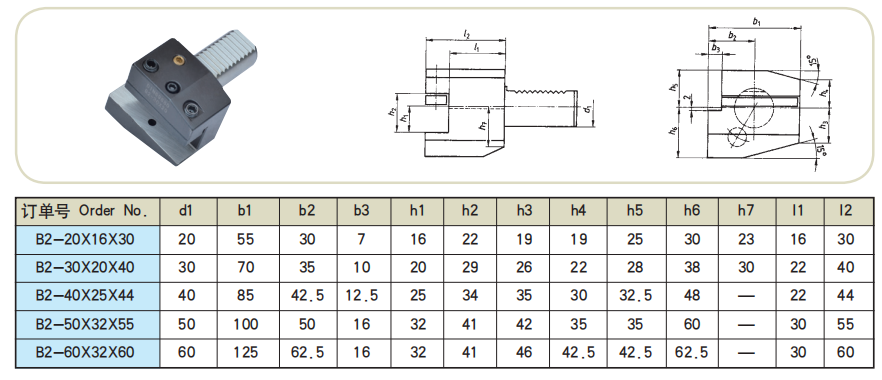

Spec Sheet 1

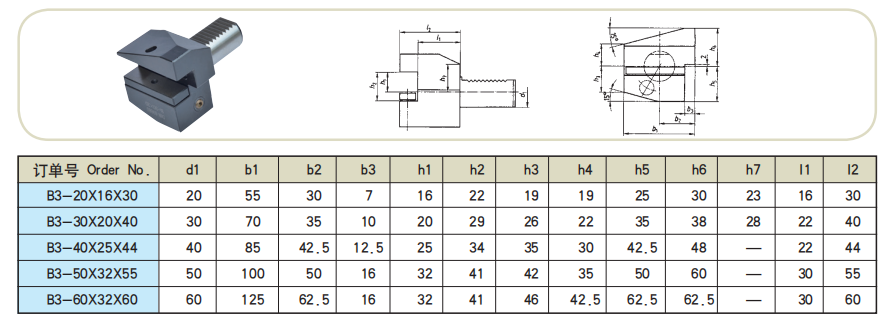

Spec Sheet 2

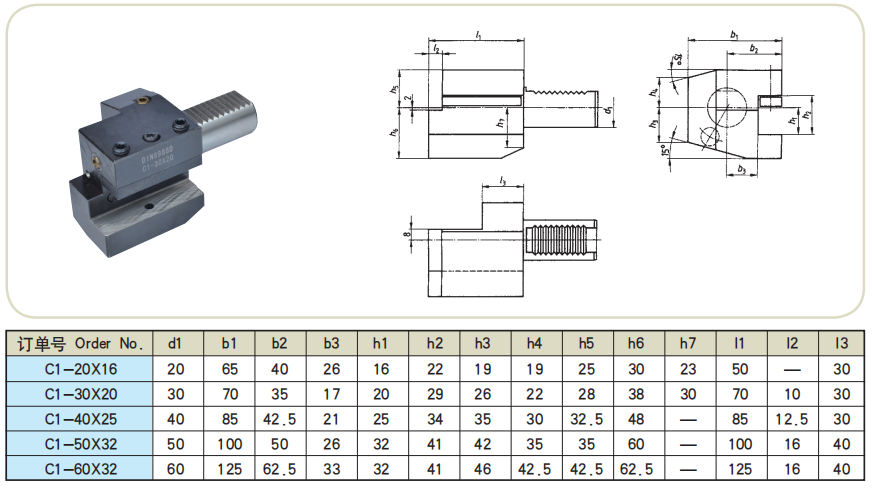

Spec Sheet 3

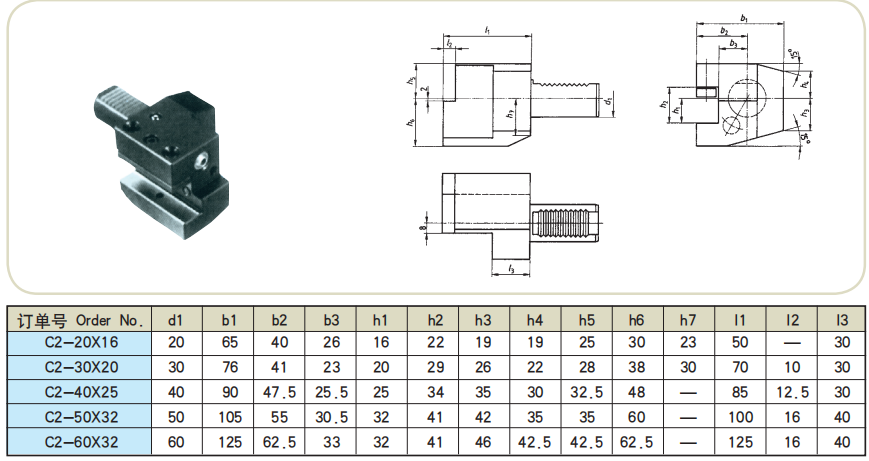

Spec Sheet 4

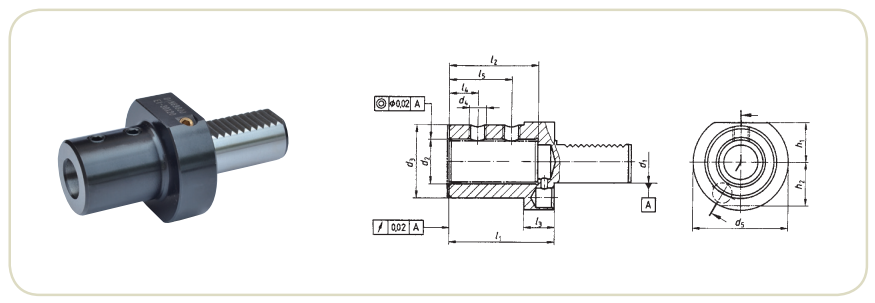

Spec Sheet 5

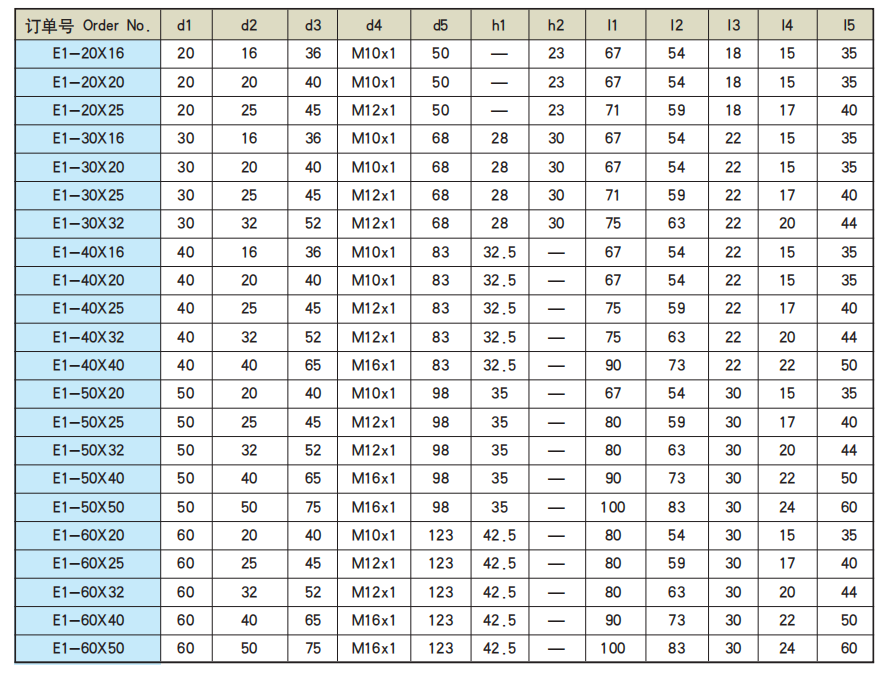

Spec Sheet 6

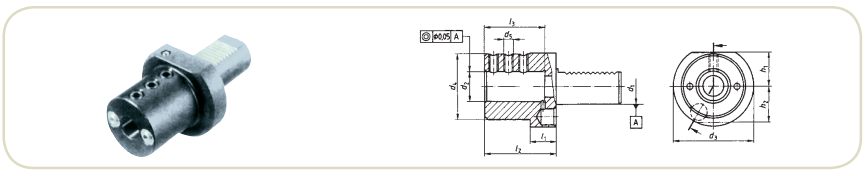

Spec Sheet 7

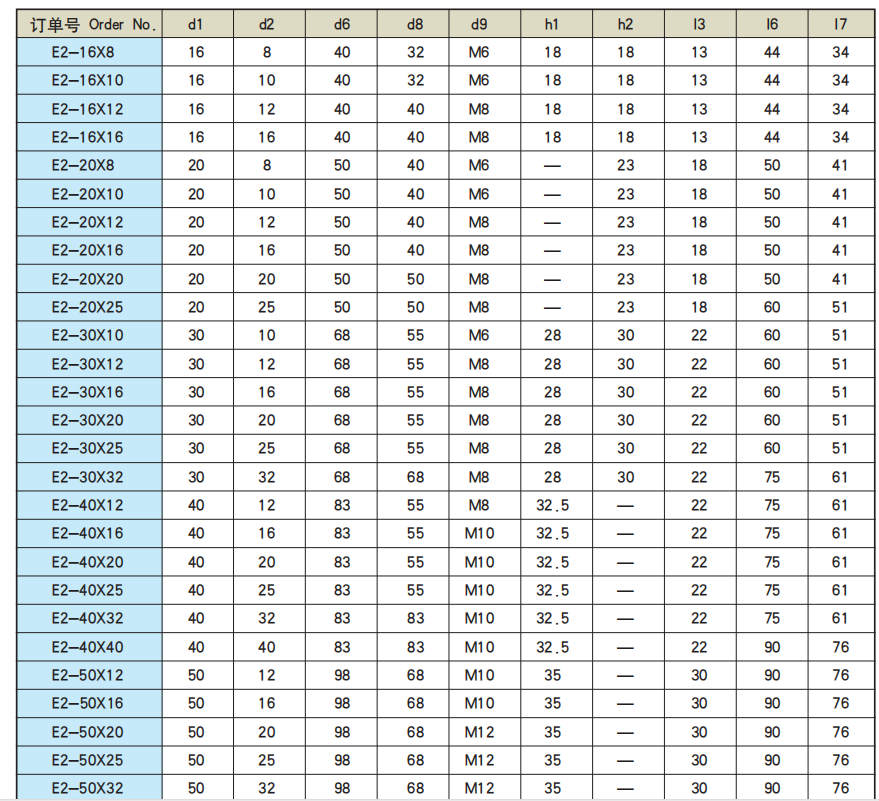

Spec Sheet 8

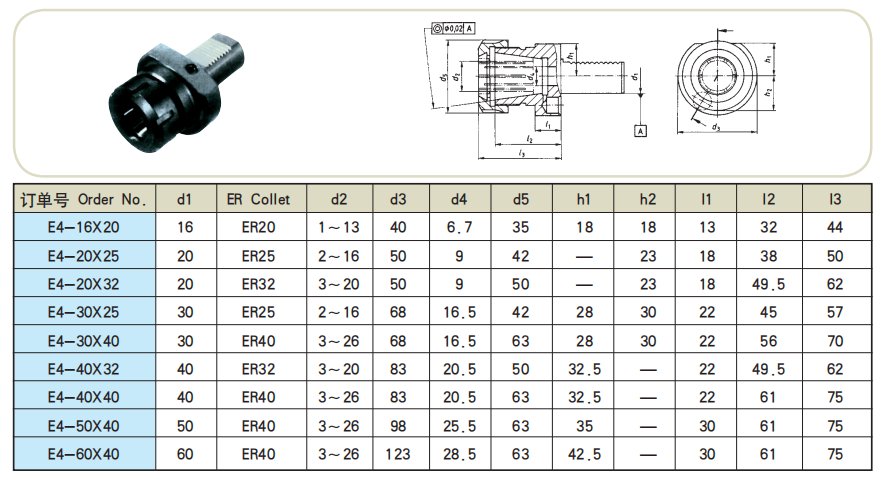

Spec Sheet 9
Our Main Product
We are a factory mainly producing collets and collet chucks. Our product range also includes vises, live centers, VDI tool holders, reduction sleeves, and more.
  • Collets: ER collets, ER sealed collets, ER tapping collets, 5C collets, DIN6343 collets, ER coolant collets with cooling channels. Precision options include 0.015mm, 0.008mm, and 0.005mm.
  • Collet Chucks: BT, DIN69871 (SK), NT, CAT, ISO, HSK ER types, side lock tool holders, face mill tool holders, etc.
  • Custom Manufacturing: We produce non-standard products based on customer samples or drawings.

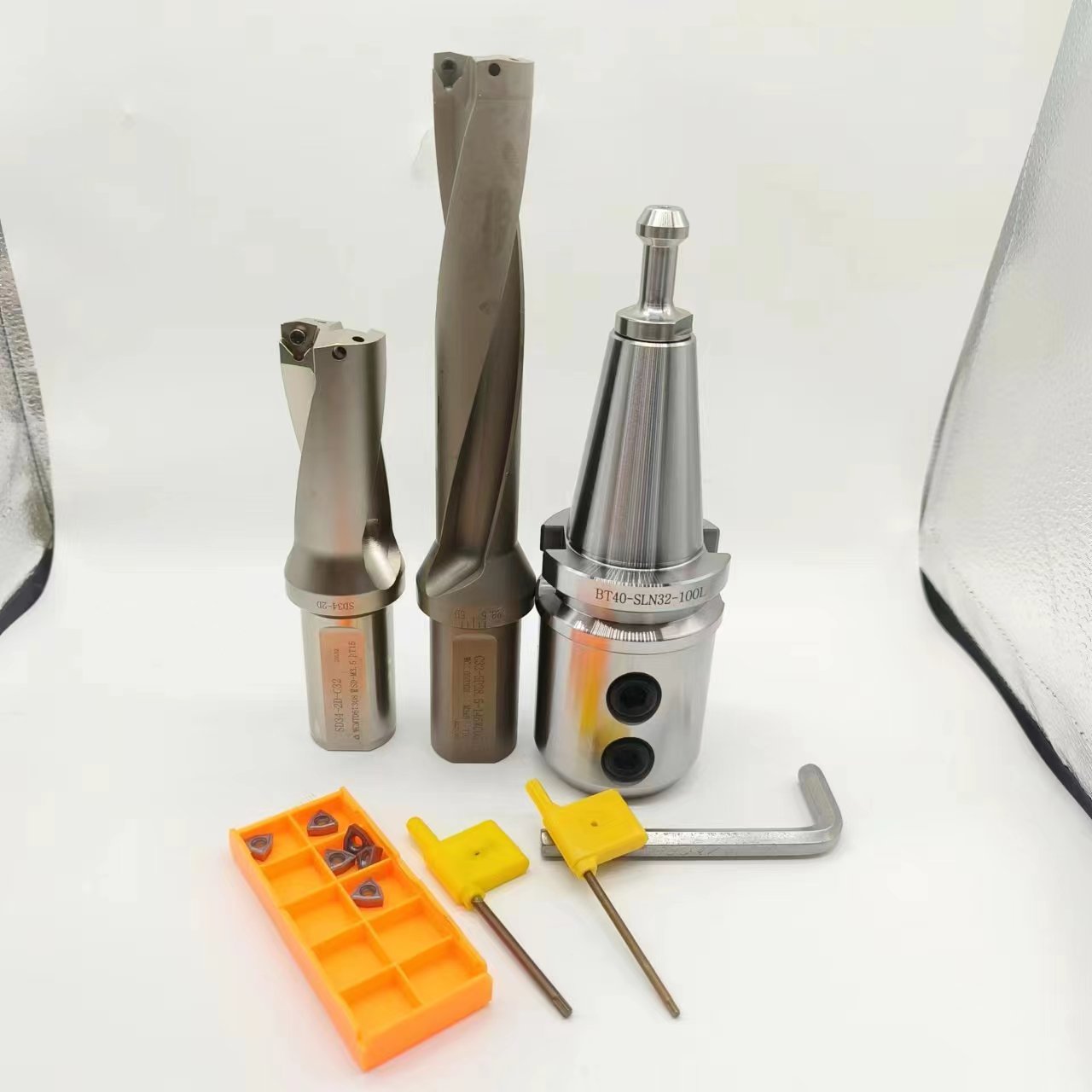

Collet Series

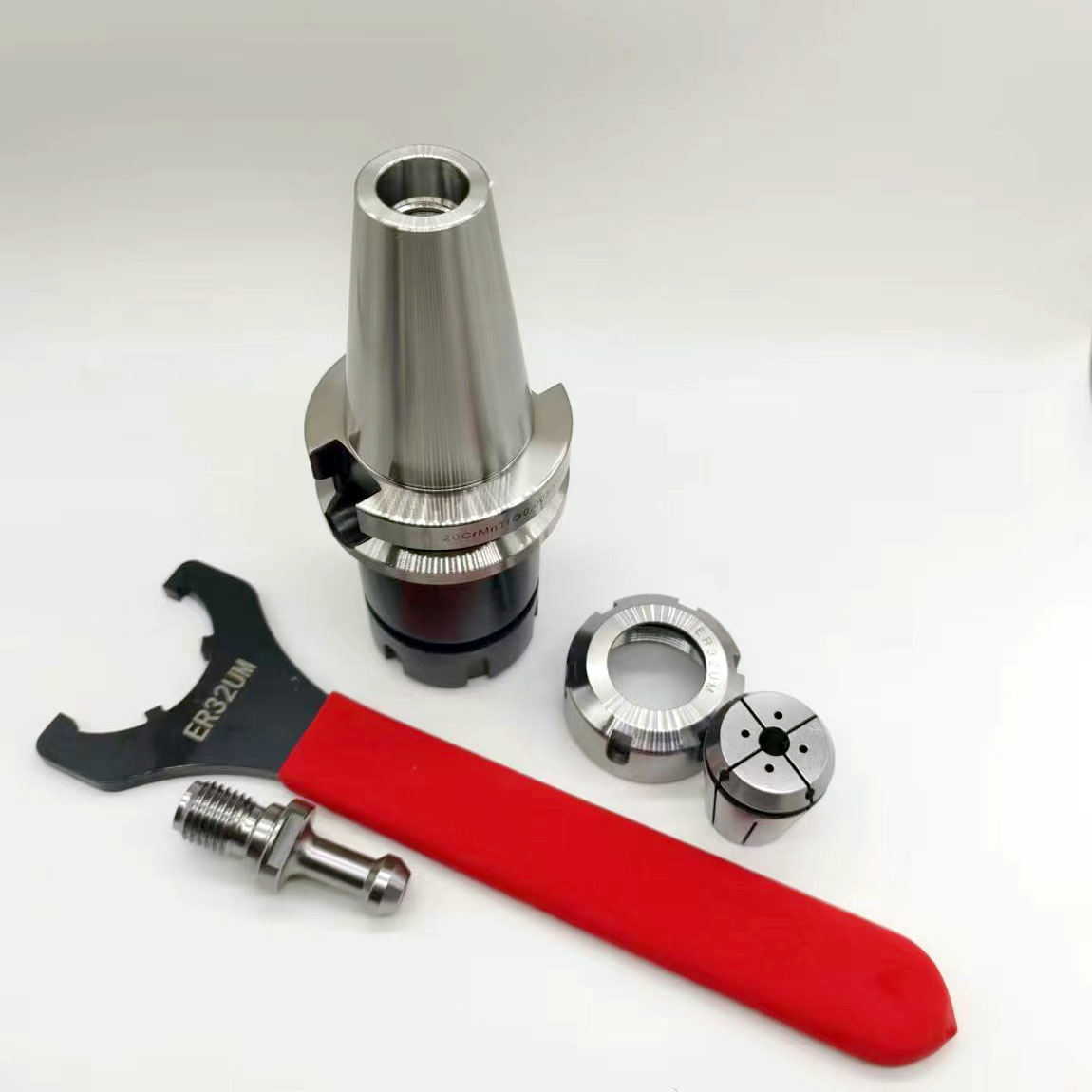

Collet Chuck Holder

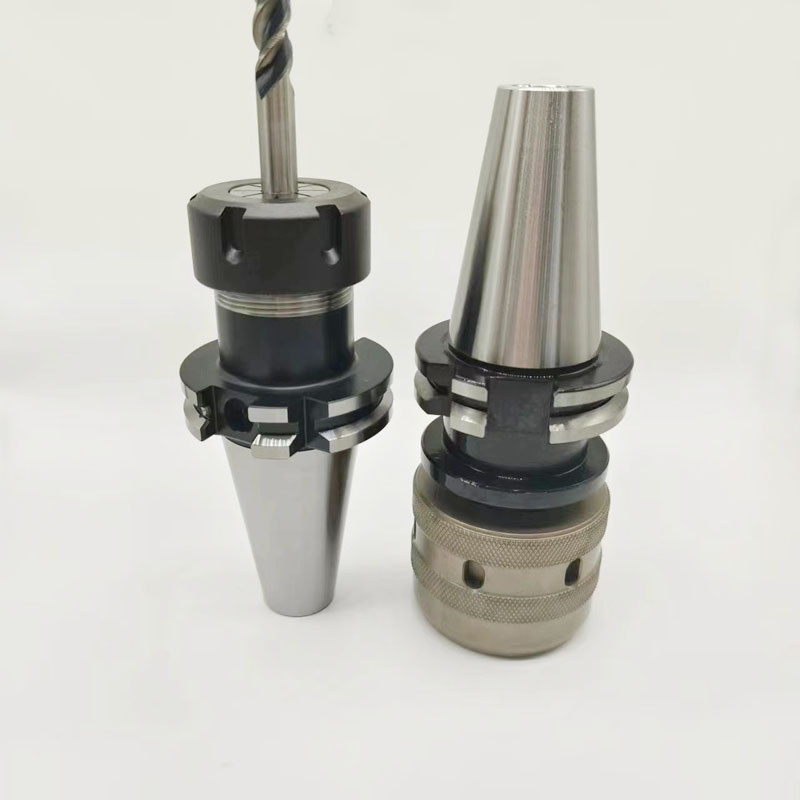

CNC Accessories

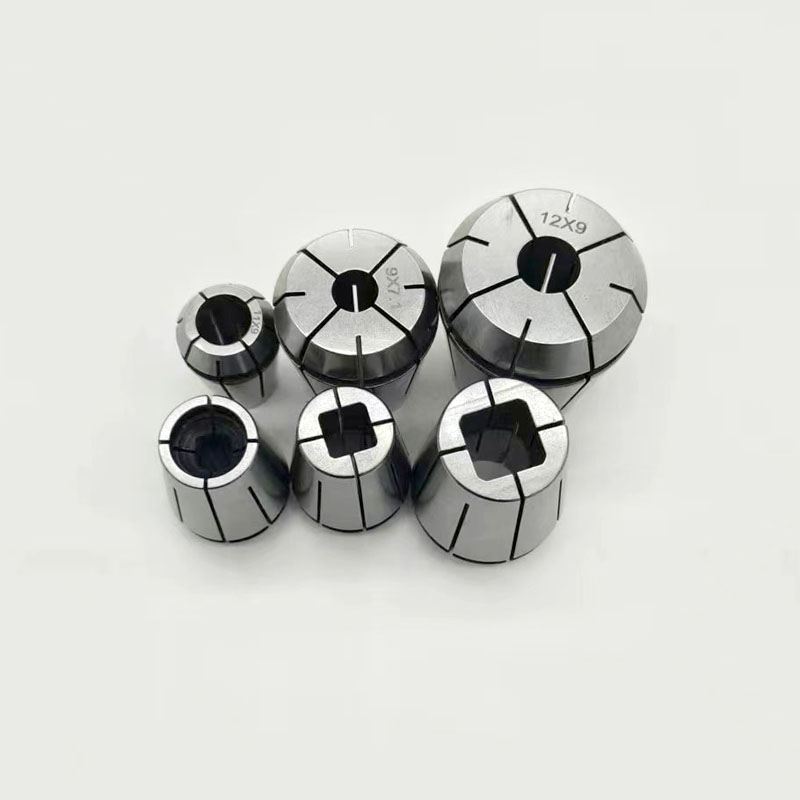

Tooling System 1

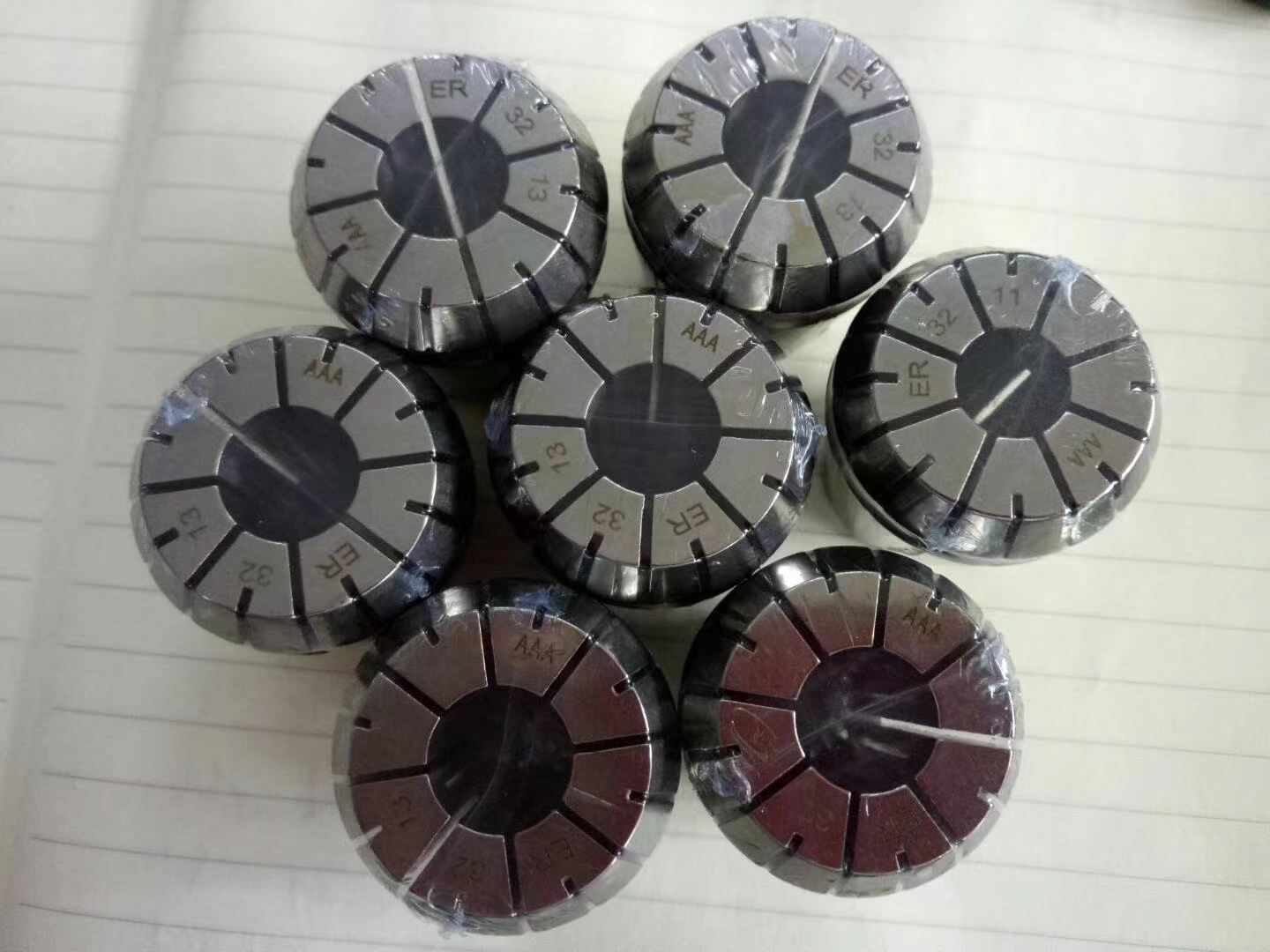

Tooling System 2

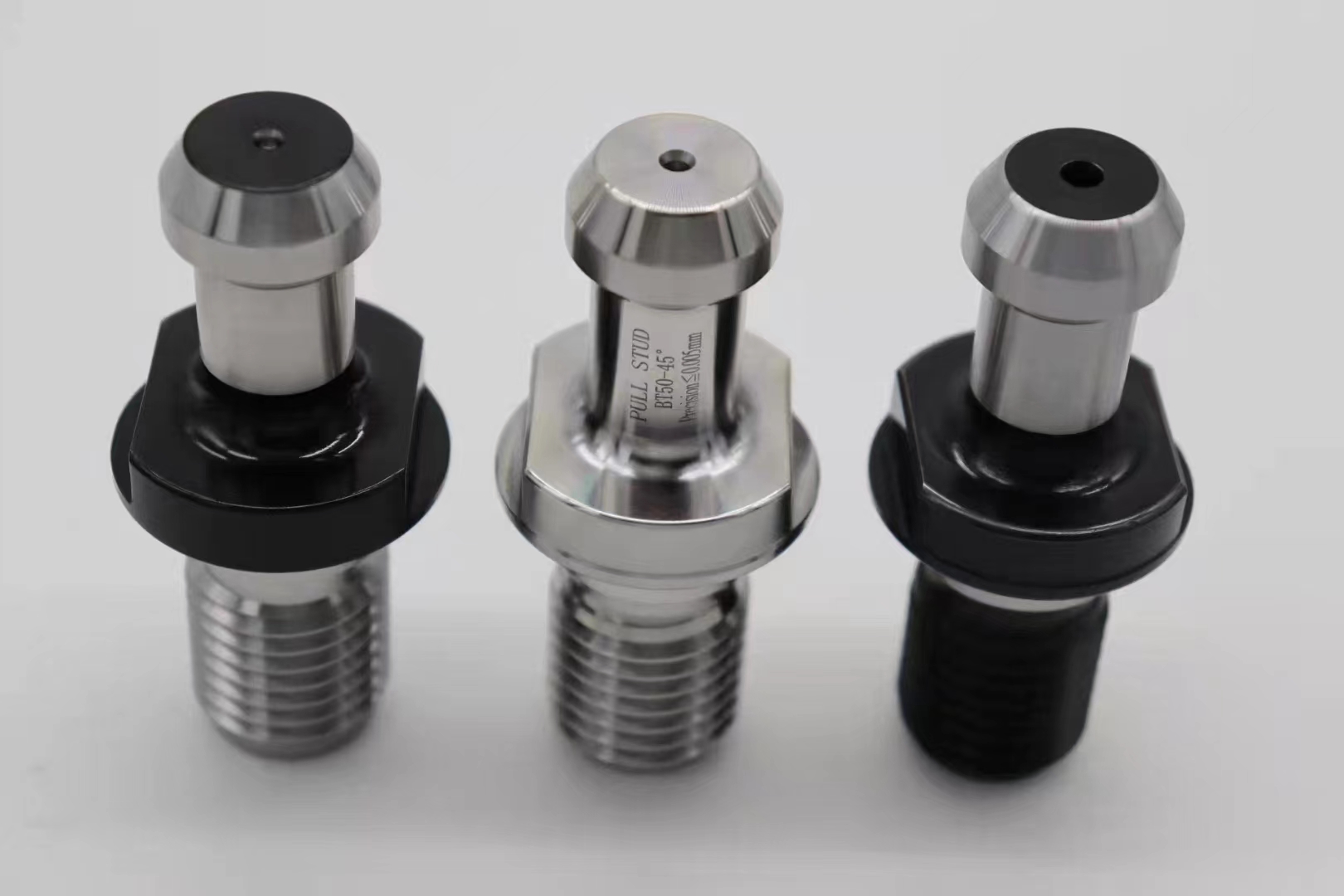

Tooling System 3

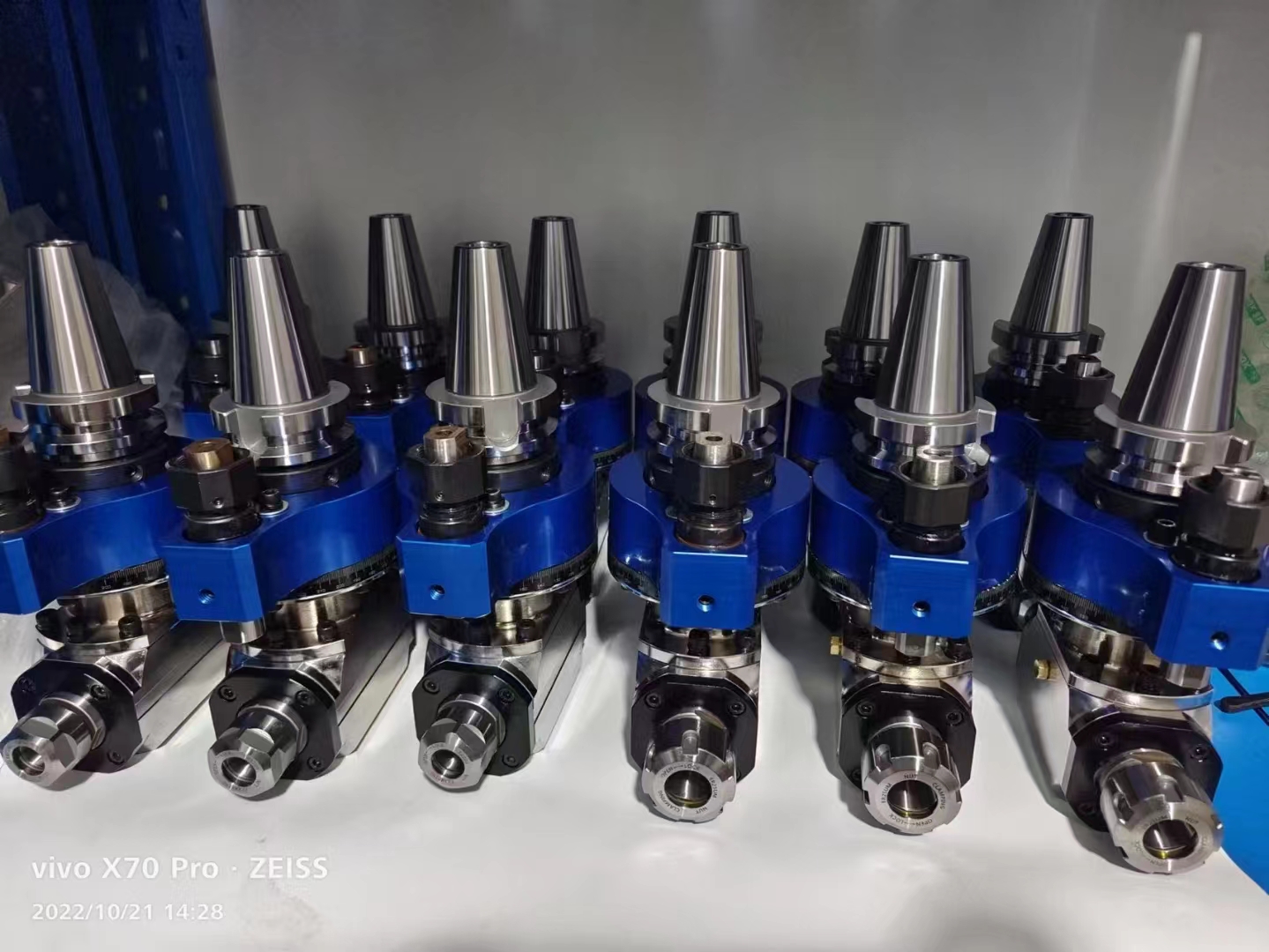

Lathe Tooling 1

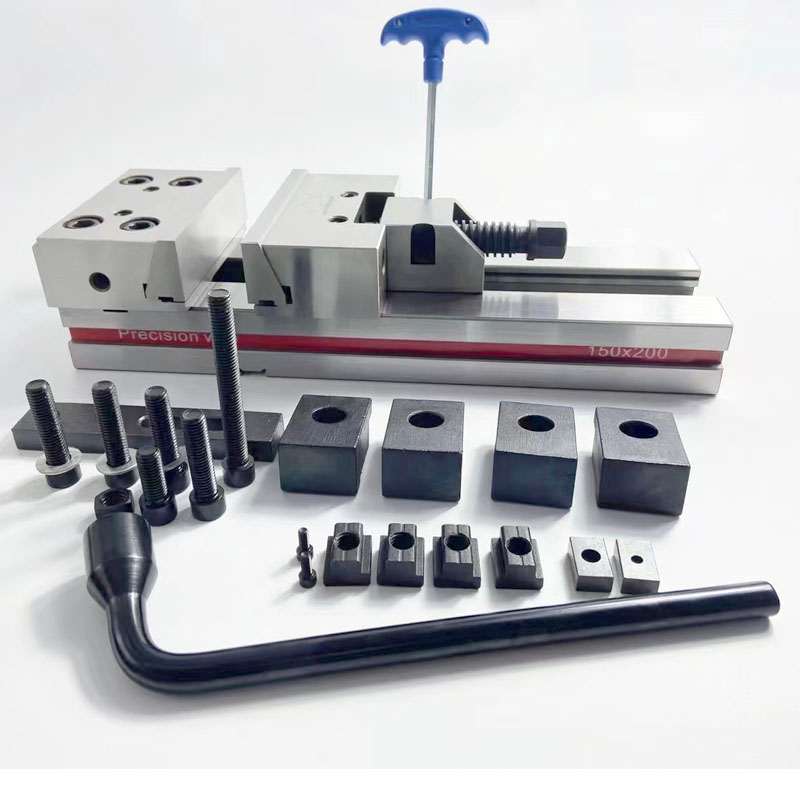

Lathe Tooling 2

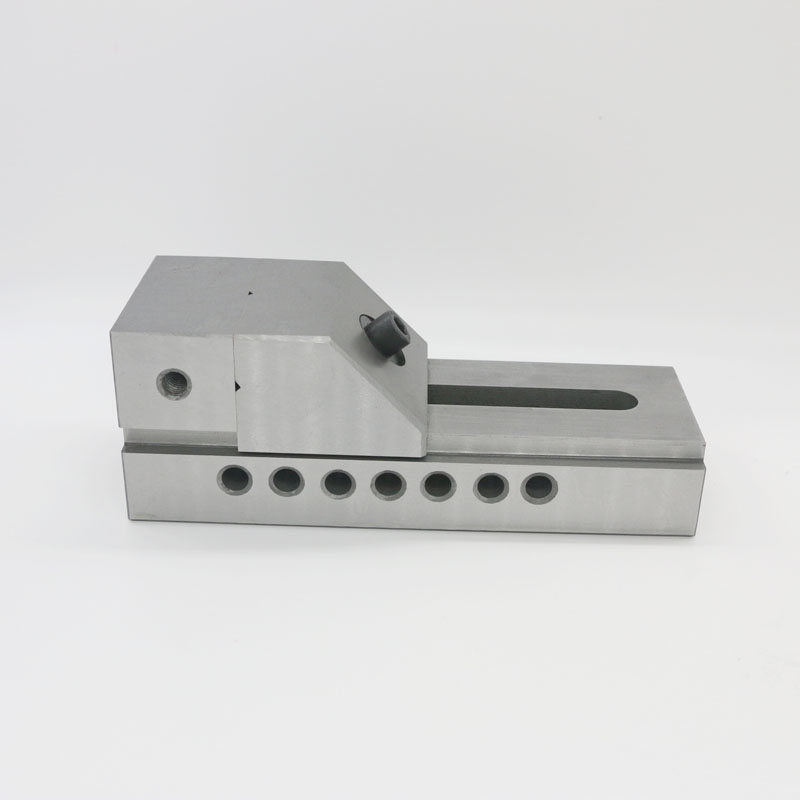

Lathe Tooling 3
Profile
Founded in 2017, we own a committed team and occupy more than 3000 square meters of land. Our facility stands as a major production base for machine tool accessories. Armed with advanced technology and automated CNC machinery and grinding equipment, we employ skilled technical personnel to guarantee superior product quality.
Our primary product lineup includes precision vises, elastic collets, mill chucks, quick change chucks, tap chucks, boring heads, NC tool holders, adapters, and other spring collet series. Over 20 countries and regions import our products, including the USA, the UK, Germany, Italy, Canada, and Spain.
Adhering to our core guidelines of "quality first, customers supreme, and reputation fundamental," we have earned trust and appreciation from global clients. We deliver outstanding product solutions and support.
Production Workshop
Inspection Department
Packing & Delivery
Standard Packaging

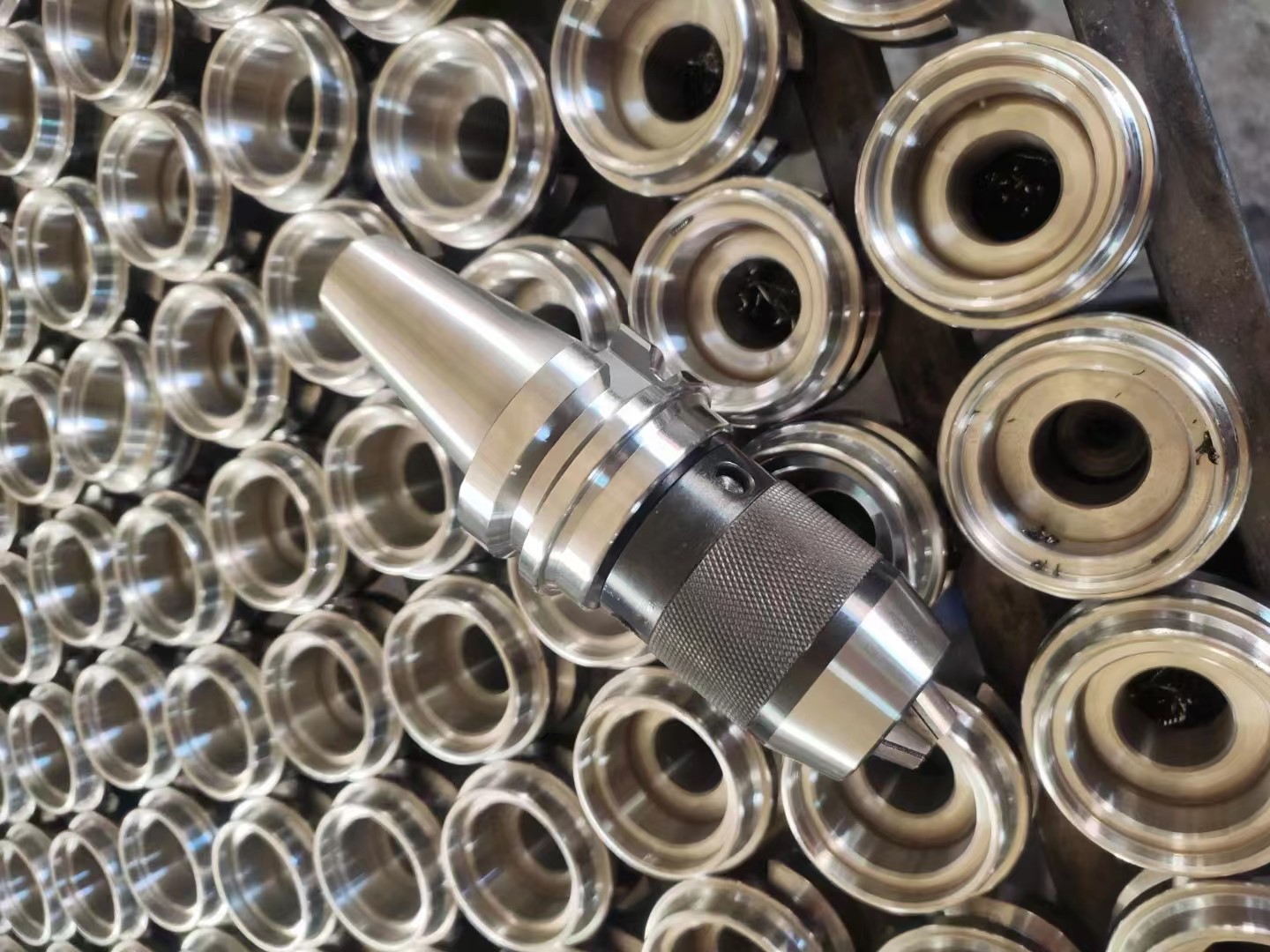

Package Details 1

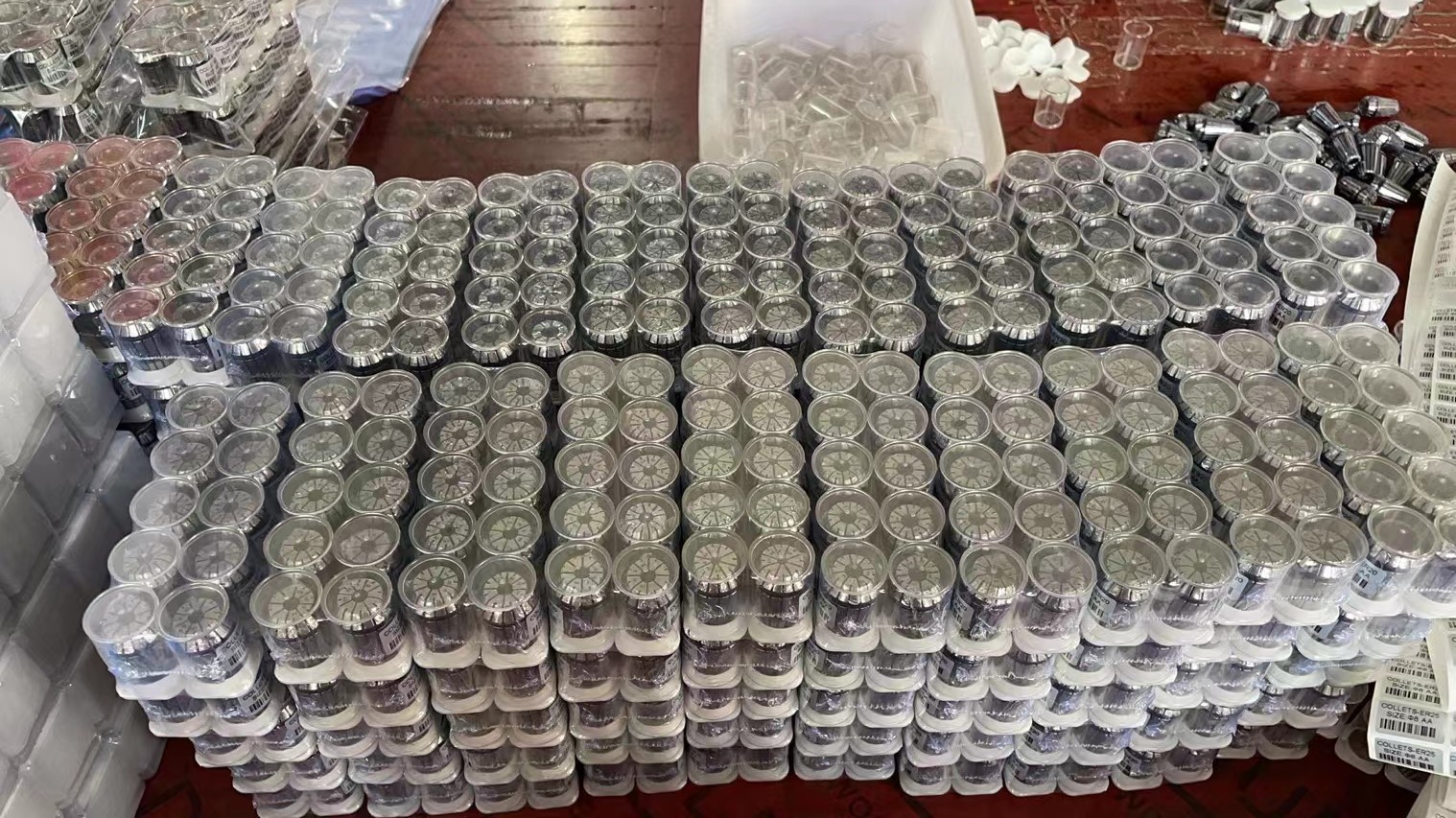

Package Details 2
FAQ
QAre you a factory or a trading company?
We are an industry and trade integrated factory, offering direct source supply.
QIs it possible to visit your testing room and factory?
Yes, visitors are welcome to tour our factory floor and testing facility to inspect our production standards.
QWhat products do you mainly produce?
We specialize in machine tool accessories and various machineries including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathes, Drilling Machines, Radial Drilling Machines, Sawing Machines, Shaper machines, gear hobbing machines, and more.
QWhat is the precision level of your VDI tool holders?
Our VDI tool holders are manufactured with high precision, achieving tolerance levels within 0.005mm to ensure extreme accuracy.
QDo you accept custom orders or non-standard designs?
Yes, we can produce custom and non-standard tool holders and collets according to your specific technical drawings or samples.
QWhat is the standard MOQ for ordering VDI tool holders?
The minimum order quantity (MOQ) for our standard VDI30 and VDI40 tool holders is 1 piece.
