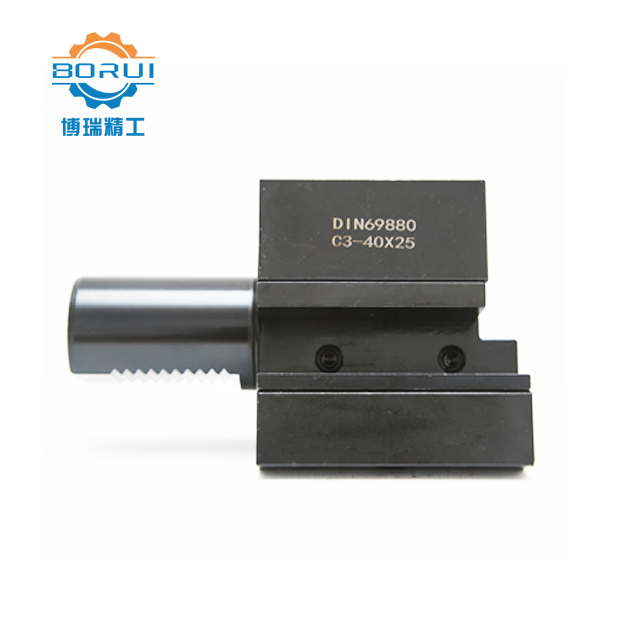

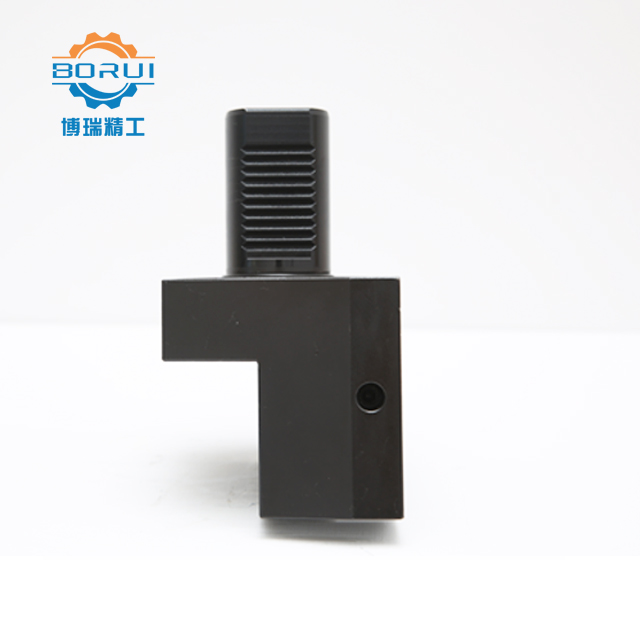

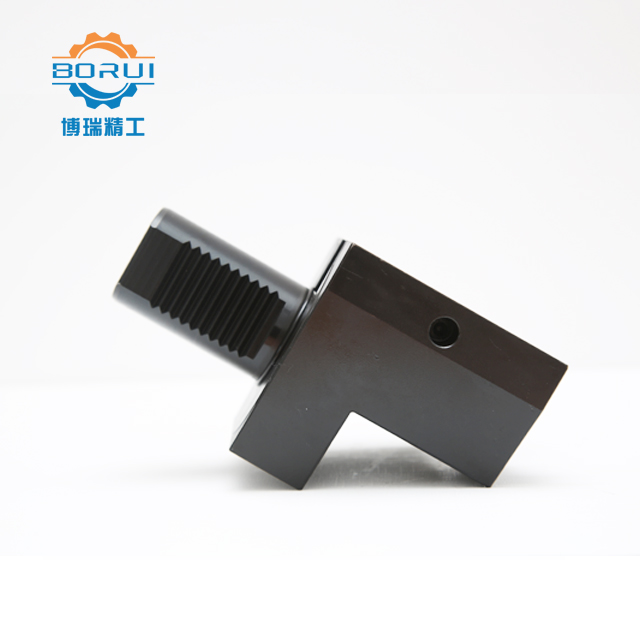

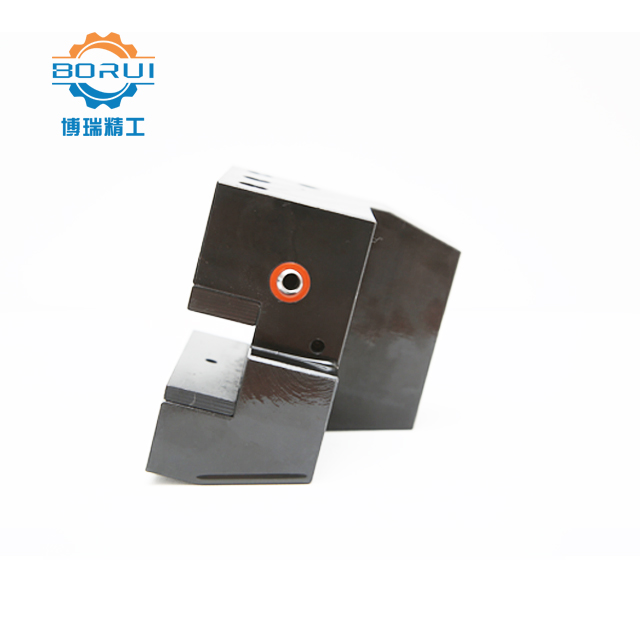

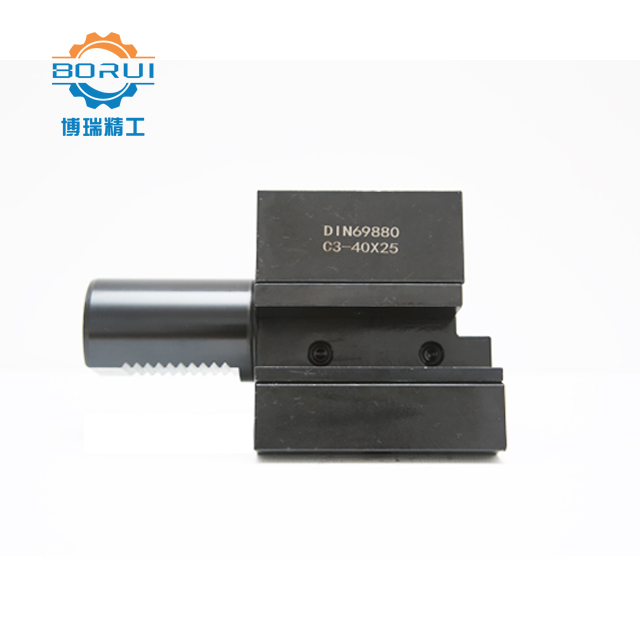

CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
1 / 5
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder
CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder

CNC Machine Lathe Tool Holder C3-30/40/50 Out Radial Reverse VDI Static Tool Holder

Send Inquiry

Product Description

Product Description

DIN69880 Standard VDI Toolholders C3-40x25

  • VDI is a Quick Change Toolholding System. VDI Provides a fast and accurate way of affixing tools to the Turret: Tool Changes are performed in seconds. Toolholders can be Preset. This is a Cam Operated Clamping System.
  • VDI tool holders are formed with reference to the DIN 69880, with the new unique technology. Such kind of VDI tool holder also has the capacity to stand by every side of the industrial improvement. Our quality tools are manufactured using hardened steel 20MnTi.
  • All VDI Tool Holders are made to ISO 9001/2000 specifications.
  • Available in All Metric VDI Shank Sizes: 20mm, 30mm, 40mm, 50mm, 60mm.
  • VDI Shank Type includes VDI20, VDI30, VDI40, VDI50.
  • VDI can be used for Lathes, CNC Turning Lathes, Horizontal Lathes, Vertical Lathes, Turning machines, CNC Turning Centers.

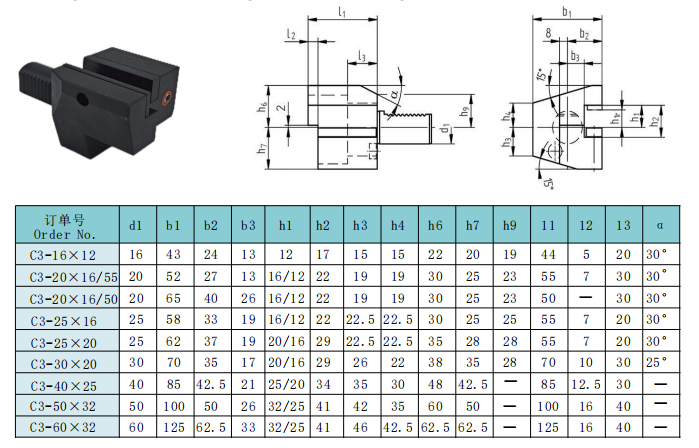

DIN69880 Standard VDI Toolholders C3-40x25

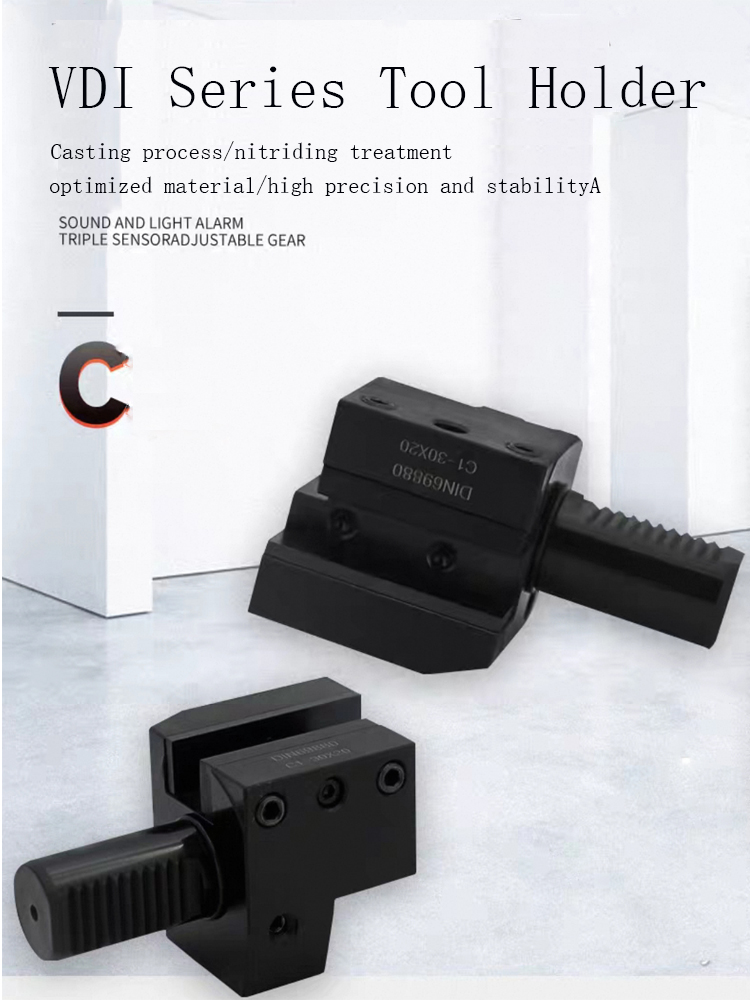

VDI Toolholder Dimensions

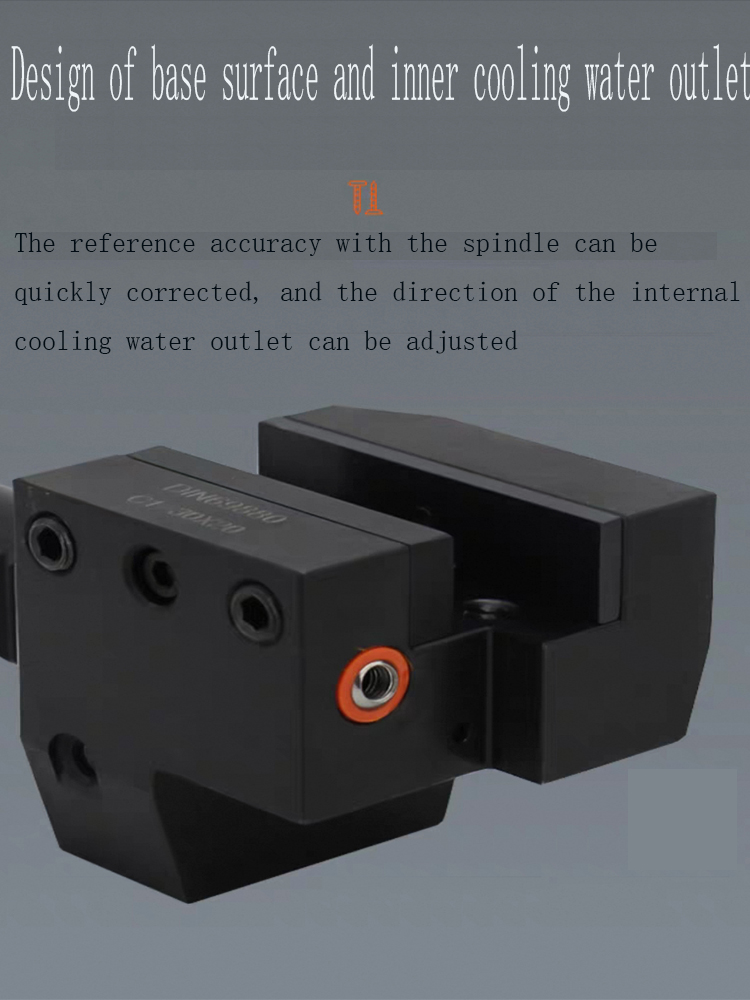

VDI Toolholder Specification Chart

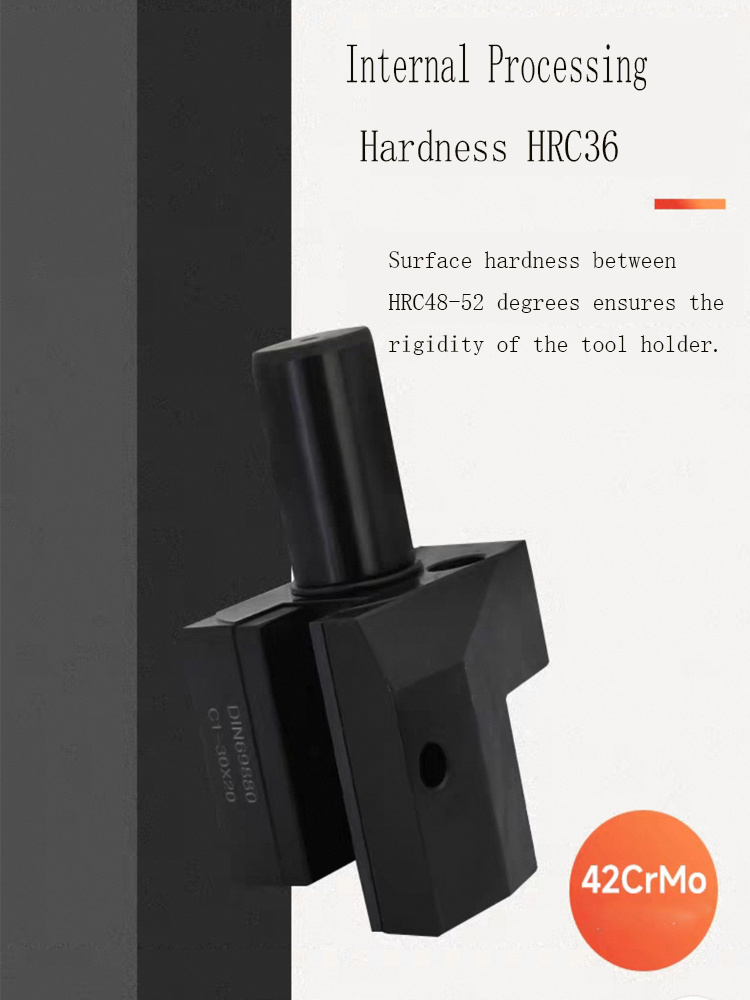

VDI Toolholder Standard Parameters

Real shooting

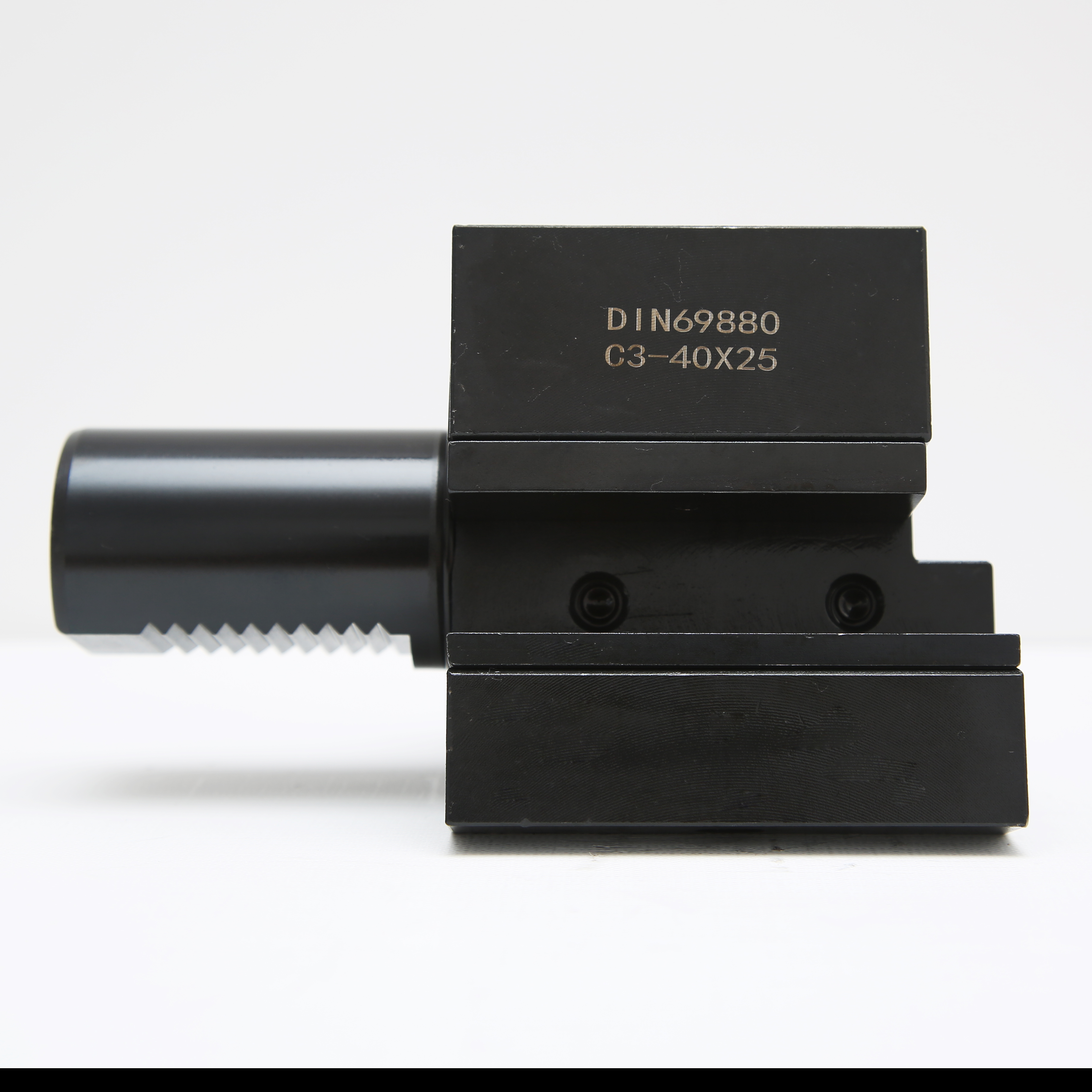

VDI Toolholder Real Shooting Close Up

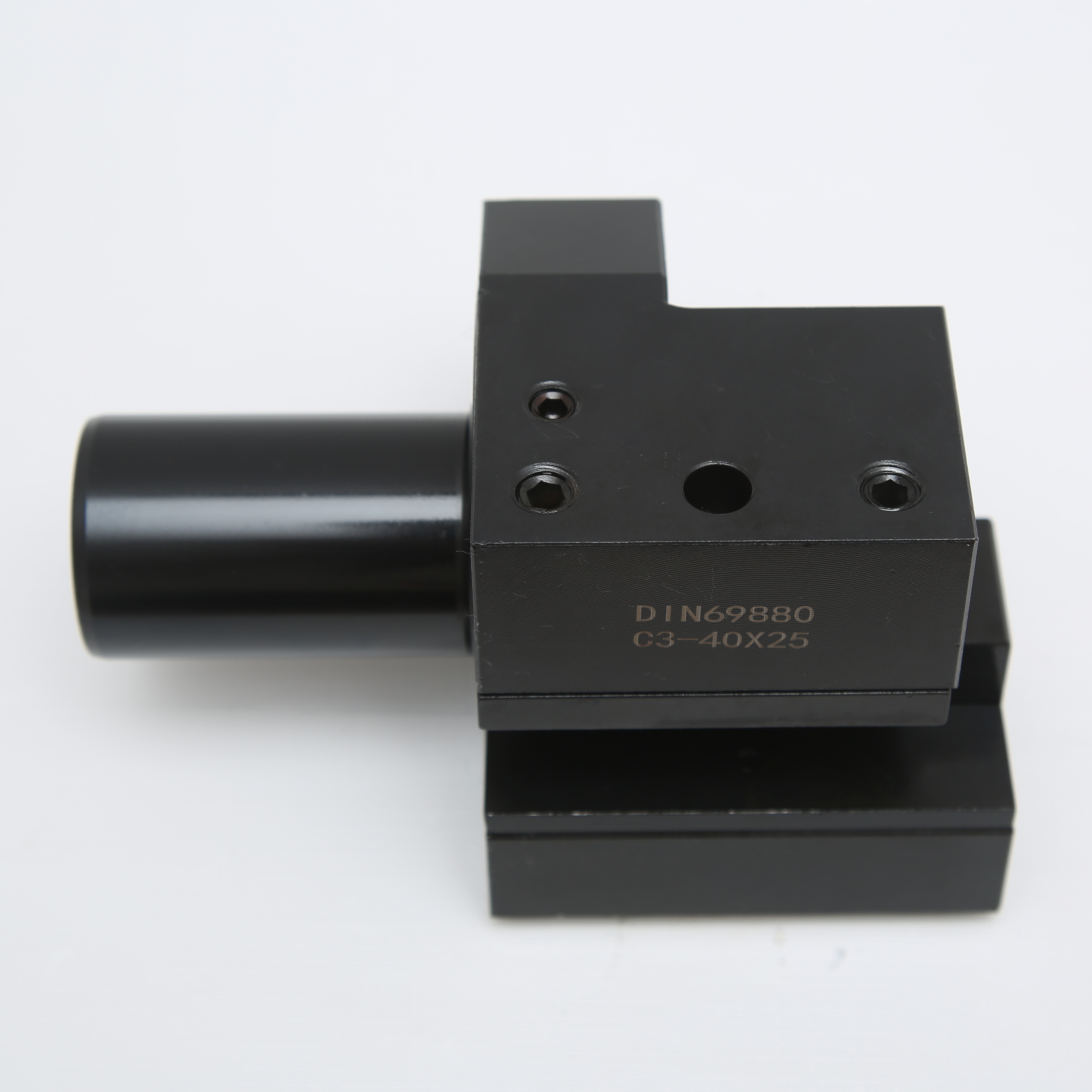

VDI Toolholder Side View

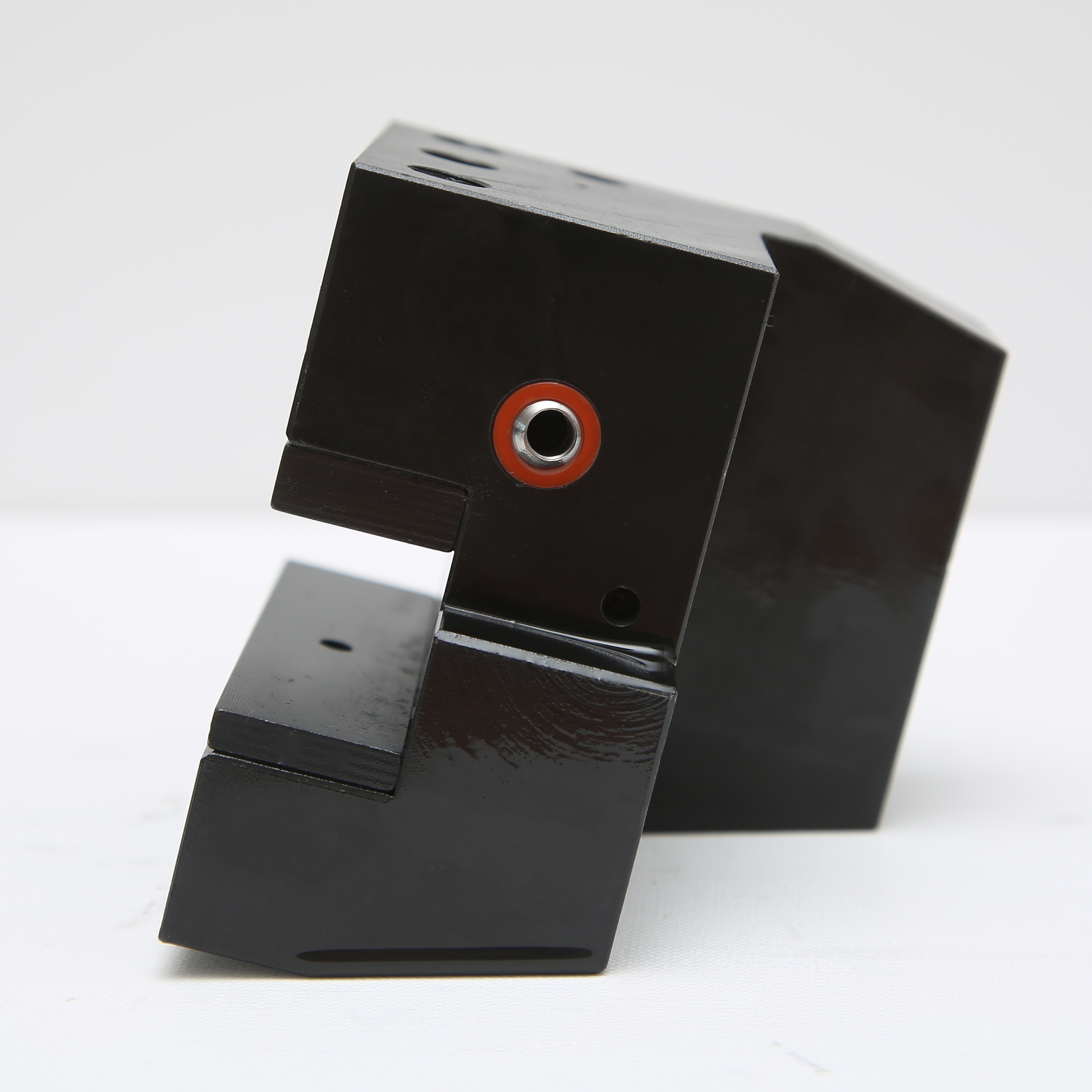

VDI Toolholder Shank Details

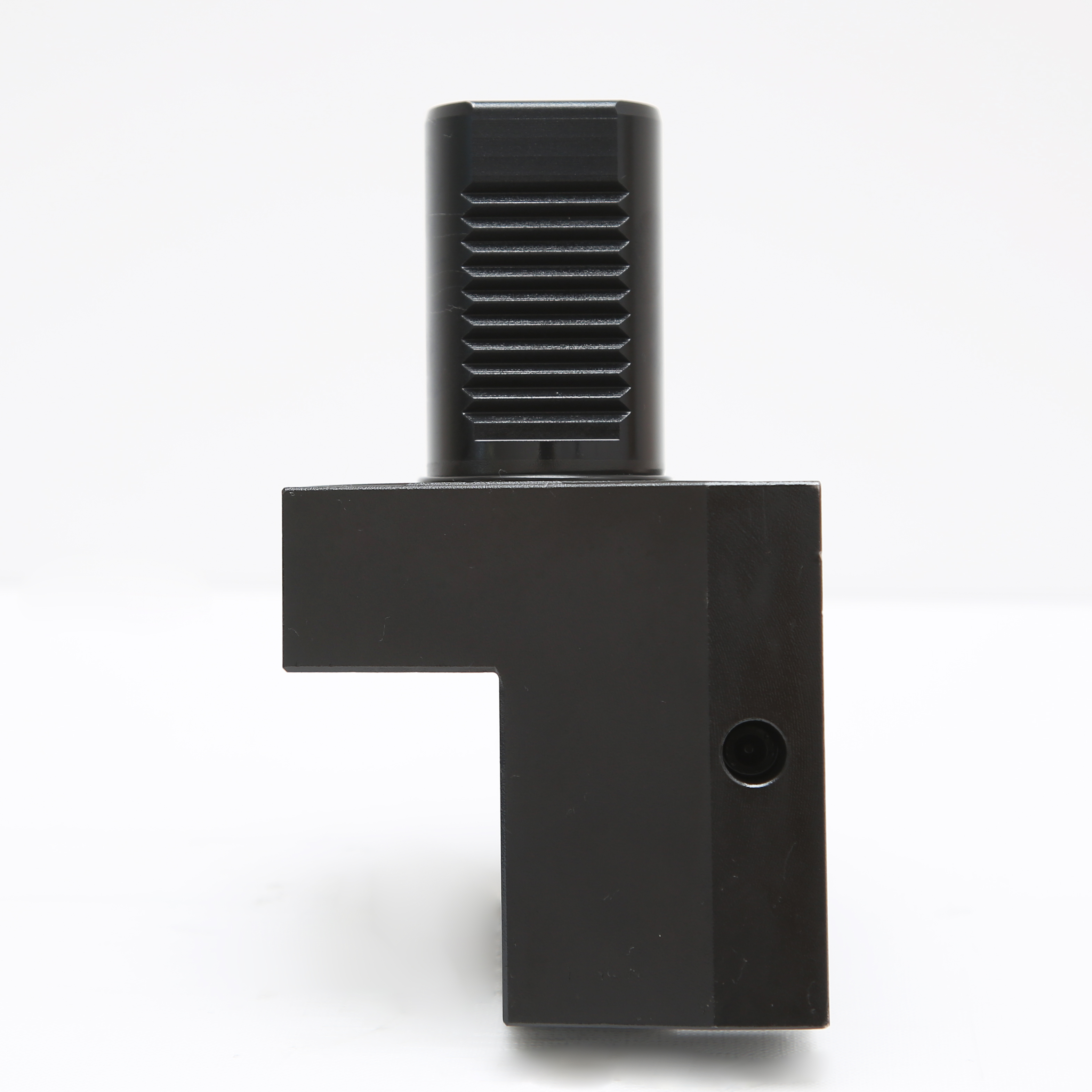

CNC VDI Toolholder Precision Hardening

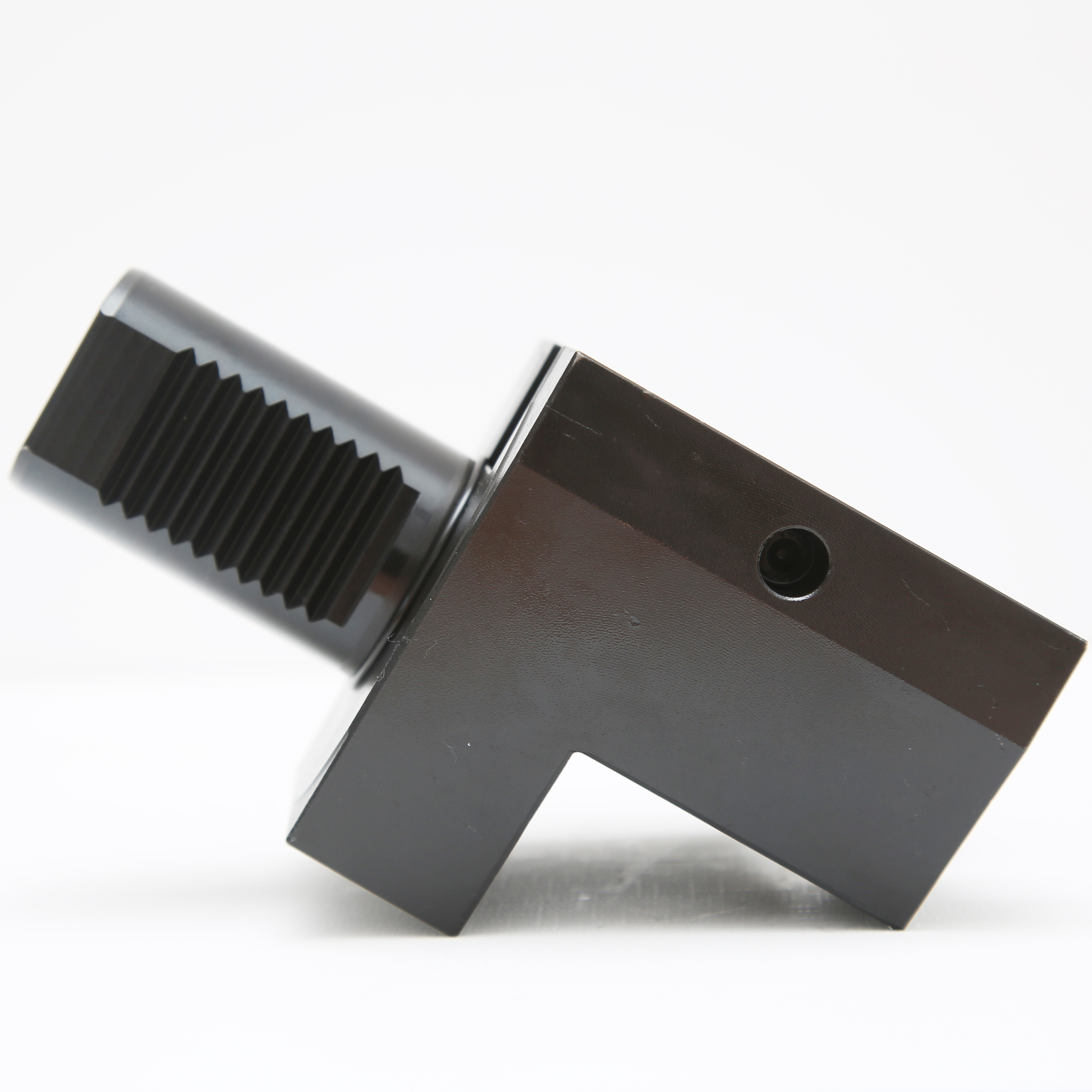

VDI Clamping System Mechanism

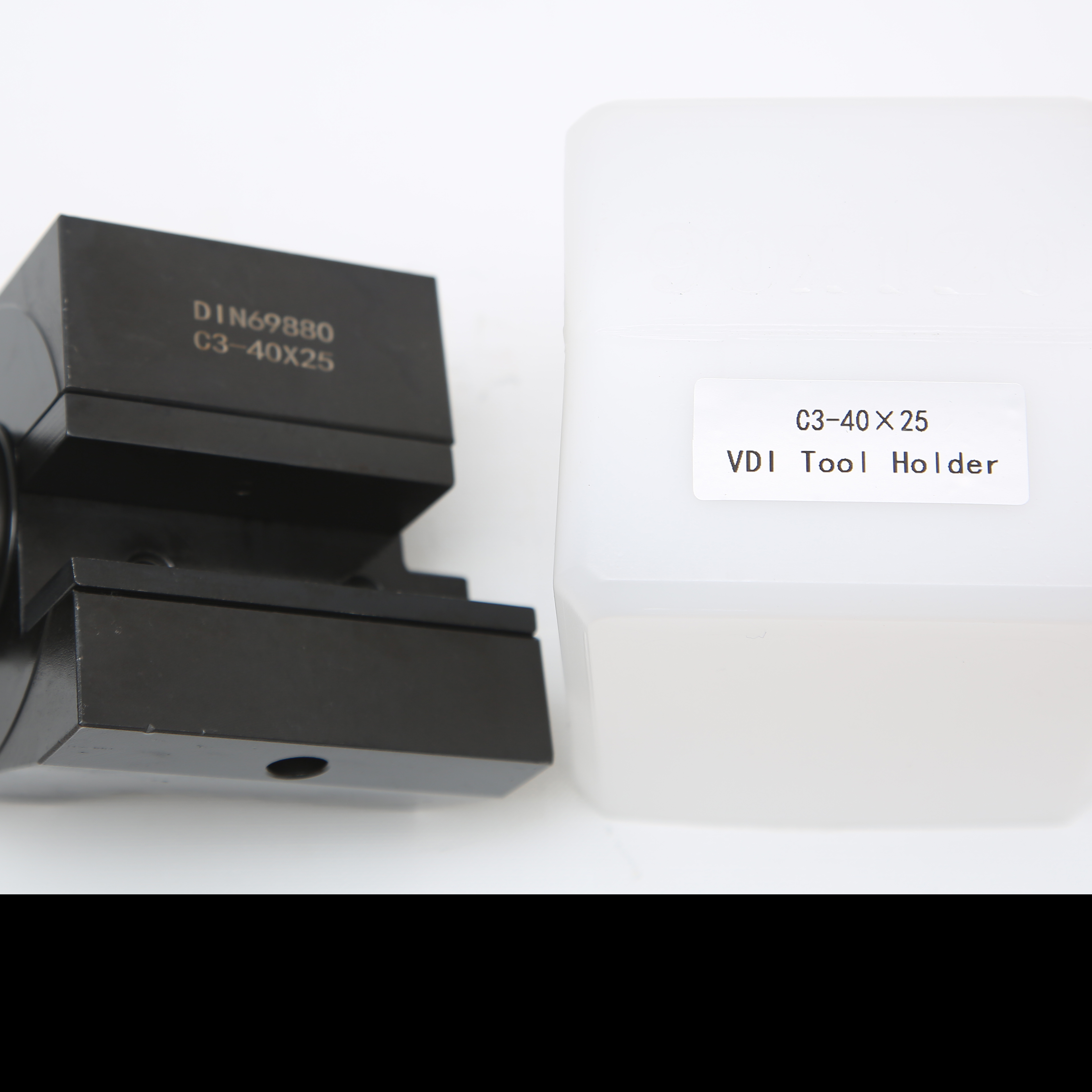

VDI Quick Change System Component

Production

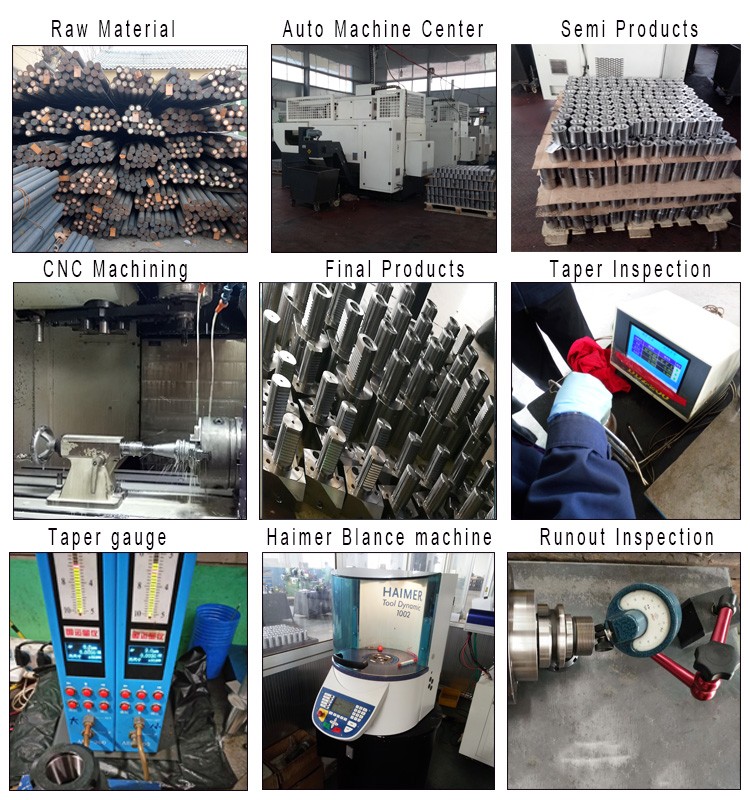

VDI Toolholder Production Line Workshop

Clients View

Client Visit Inspection
Factory Floor Demonstration
Product Quality Verification
Overseas Partner Presentation
Machinery Tooling Client Meeting

Clients Comments

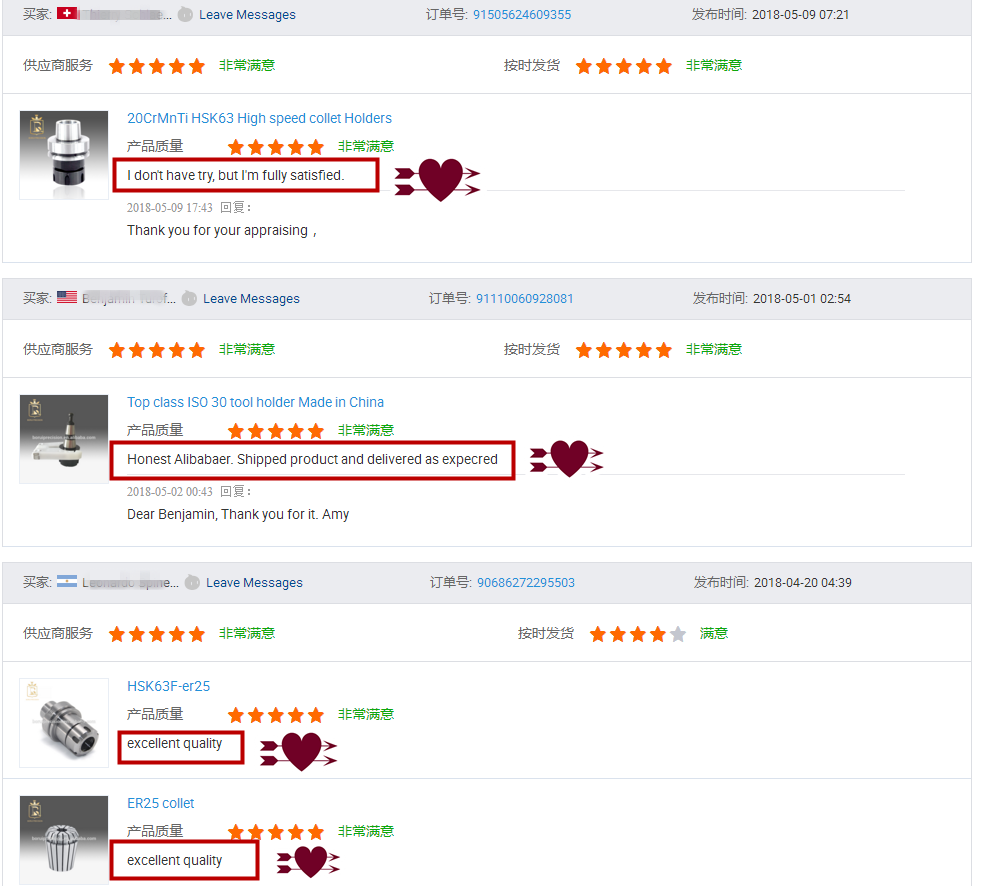

Customer Praise and Feedback

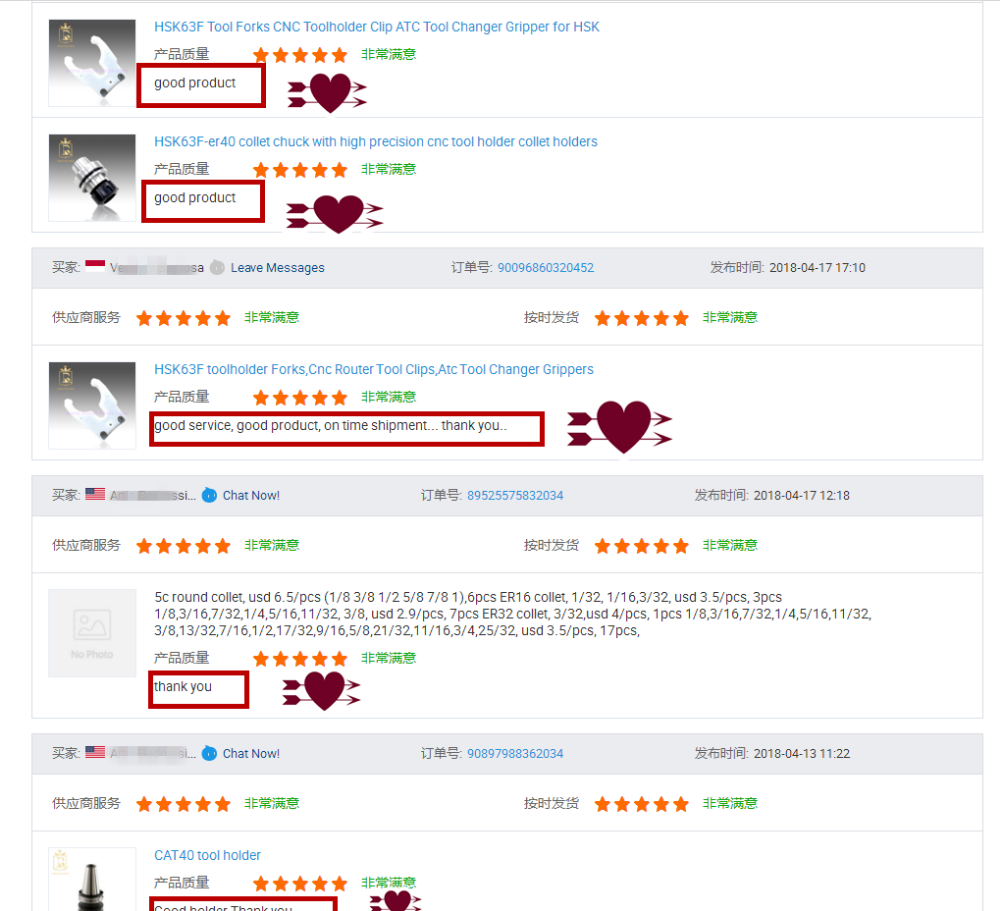

Client Message of Satisfaction

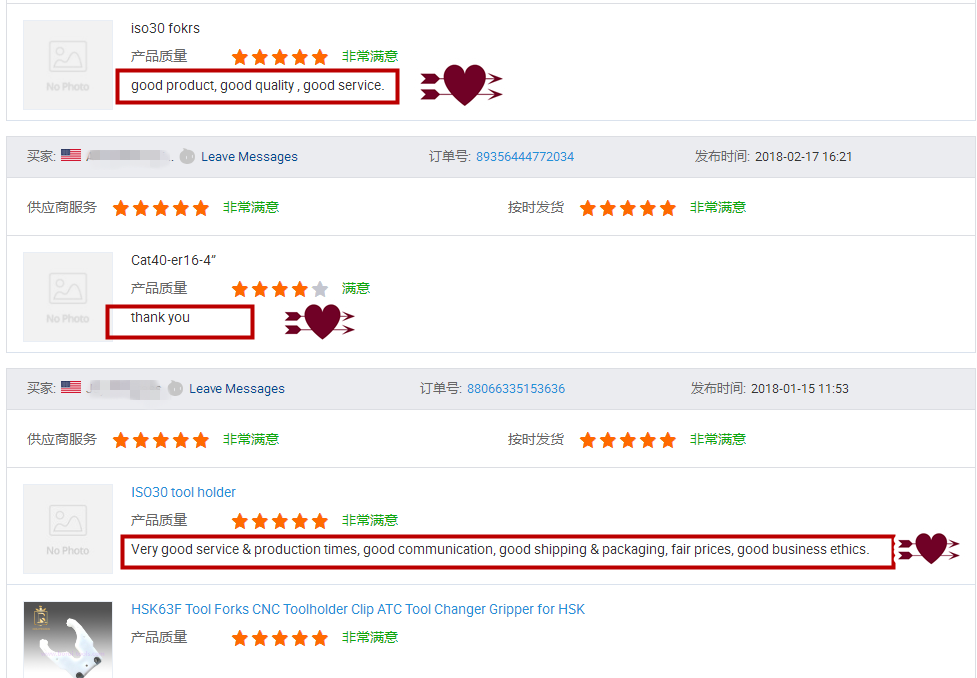

Buyer Review Post

Frequently Asked Questions

What is a VDI Quick Change Toolholding System?

VDI is an industry-standard quick-change system that allows for fast and highly accurate installation of tool holders onto a CNC lathe turret. Tool changes can be performed in seconds, and toolholders can be preset offline to minimize machine downtime.

Which standards do these VDI Toolholders comply with?

These toolholders are manufactured in strict compliance with the DIN 69880 standard and adhere to ISO 9001/2000 quality specifications to ensure global compatibility and high performance.

What material is used to manufacture these VDI Toolholders?

Our high-quality VDI toolholders are produced using hardened 20MnTi steel, ensuring superior wear resistance, structural stability, and longevity in demanding industrial environments.

What VDI shank sizes and models are available?

We support all standard metric shank sizes, including 20mm, 30mm, 40mm, 50mm, and 60mm. The primary available shank type classifications are VDI20, VDI30, VDI40, and VDI50.

What machines are compatible with these tool holders?

These toolholders are suitable for a wide range of industrial machinery, including CNC turning lathes, standard lathes, horizontal and vertical lathes, turning centers, and other automated turning machinery.
