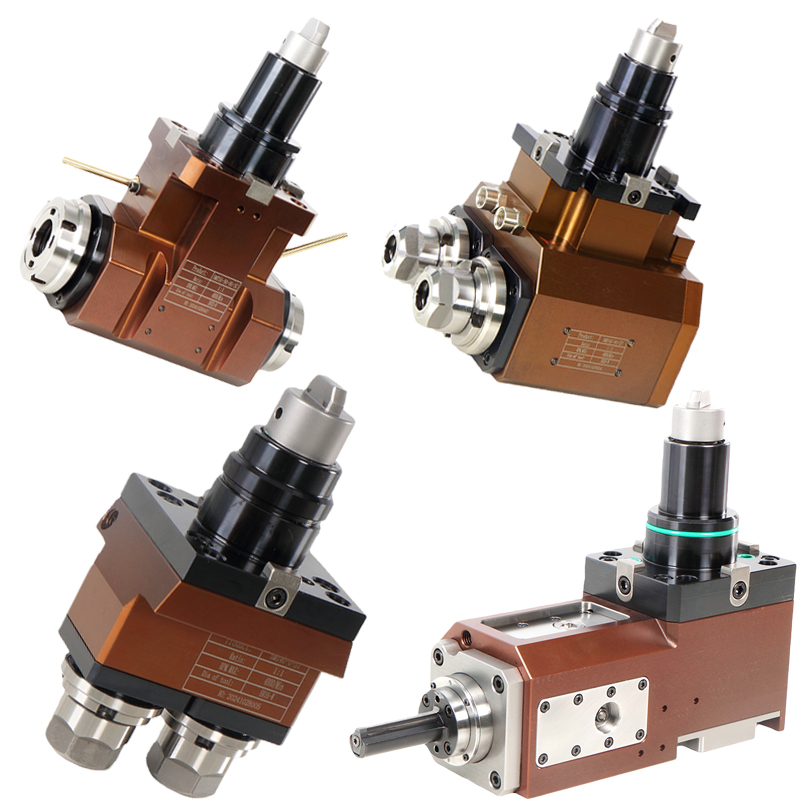

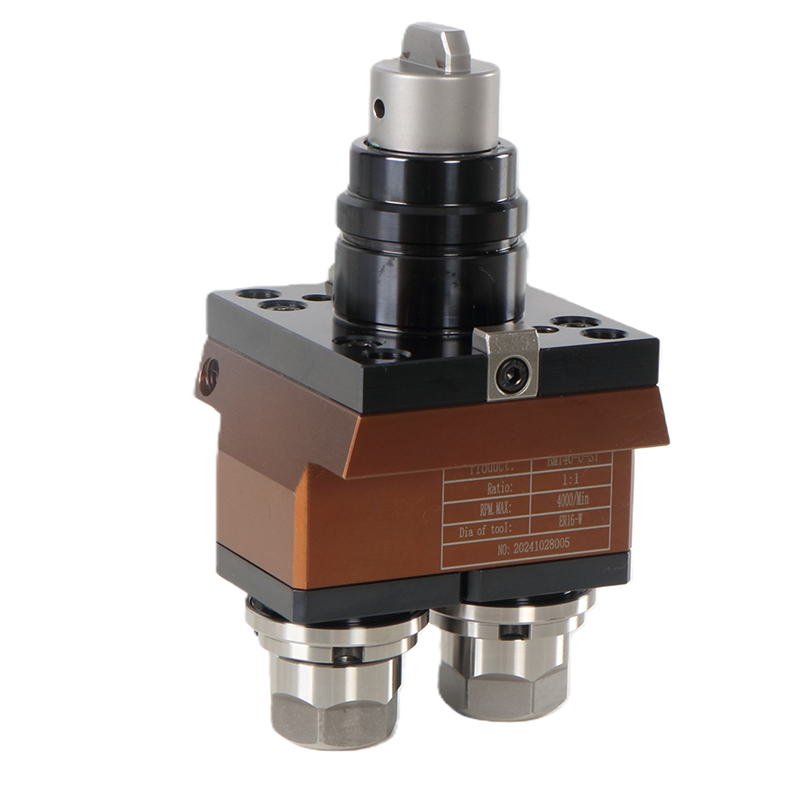

BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
1 / 5
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder
BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder

BMT Live Tool Holders for CNC Lathe Turret VDI30 Driven Holder BMT40/45/55/65 0 Degree 90 Degree Double Head Driven Tool Holder

Send Inquiry

Product Description

Product Description

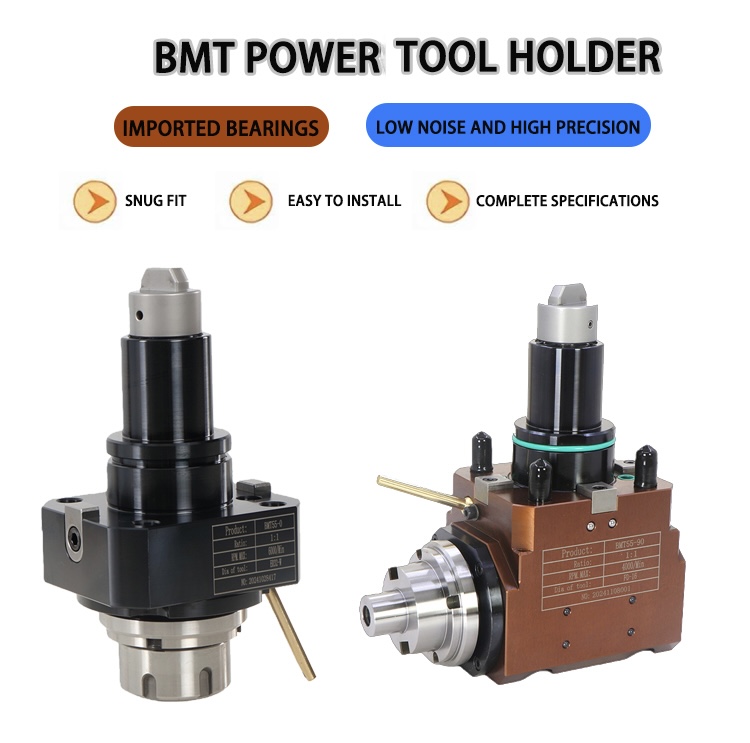

BMT Tool Holder Overview

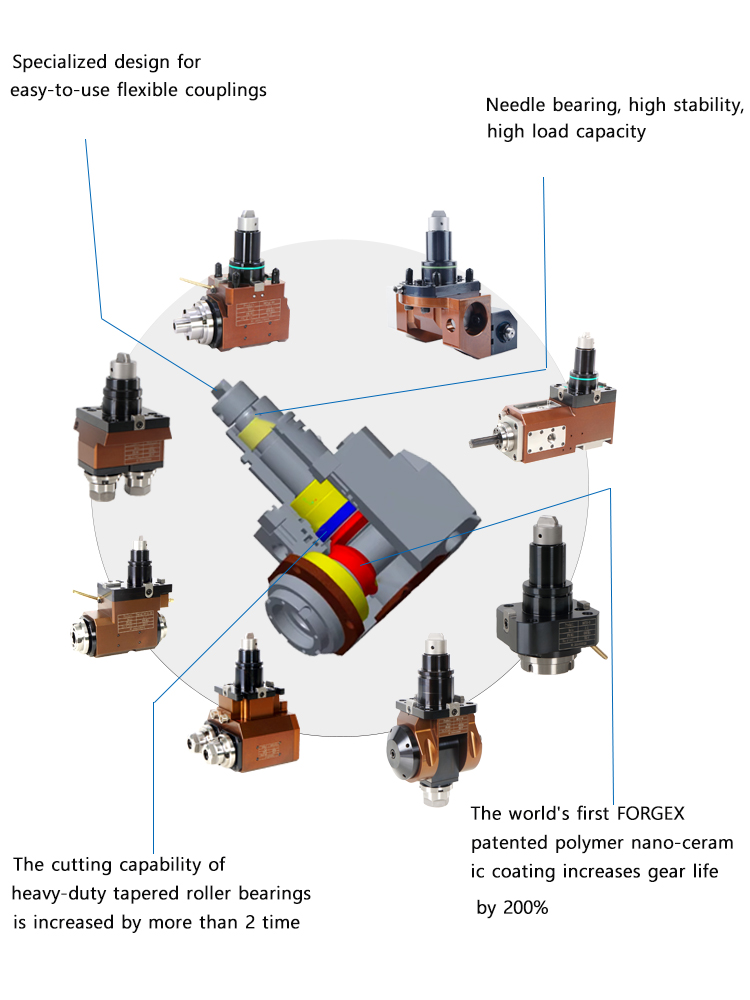

BMT Tool Holder Structure
CNC Lathe Application
In CNC lathes, the BMT tool holder transmits power through the built-in motor or machine tool spindle to drive the tool to rotate, so that the lathe can perform complex processes such as milling, drilling, and tapping without changing the machine while completing turning, significantly improving processing efficiency.
Item BMT Series Double Head Driven Tool Holder
0° 90°
Rotational Speed 6000Rpm 6000Rpm
Speed Ratio 1:1 1:1
Product Specifications
0 Degree Single Side Double Head Power Tool Holder

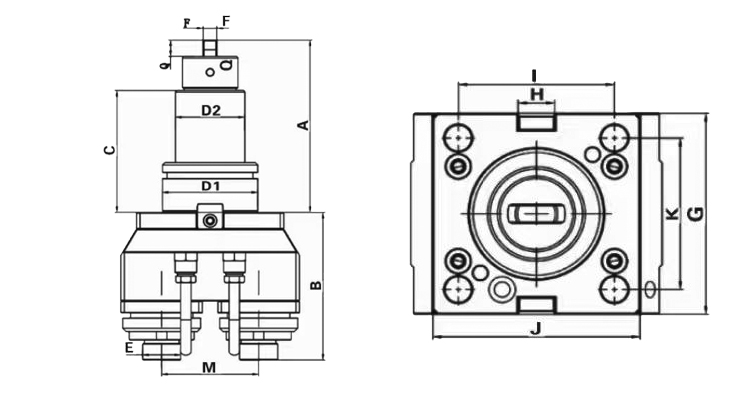

0 Degree Tool Holder

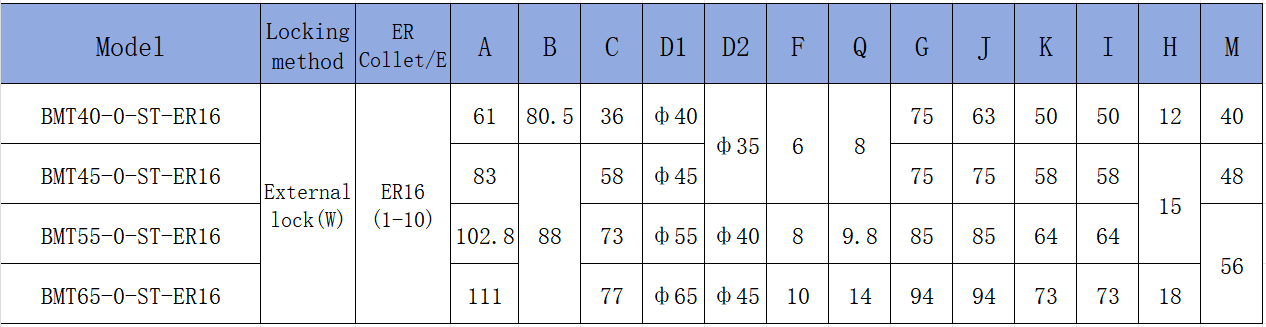

0 Degree Specification Drawing

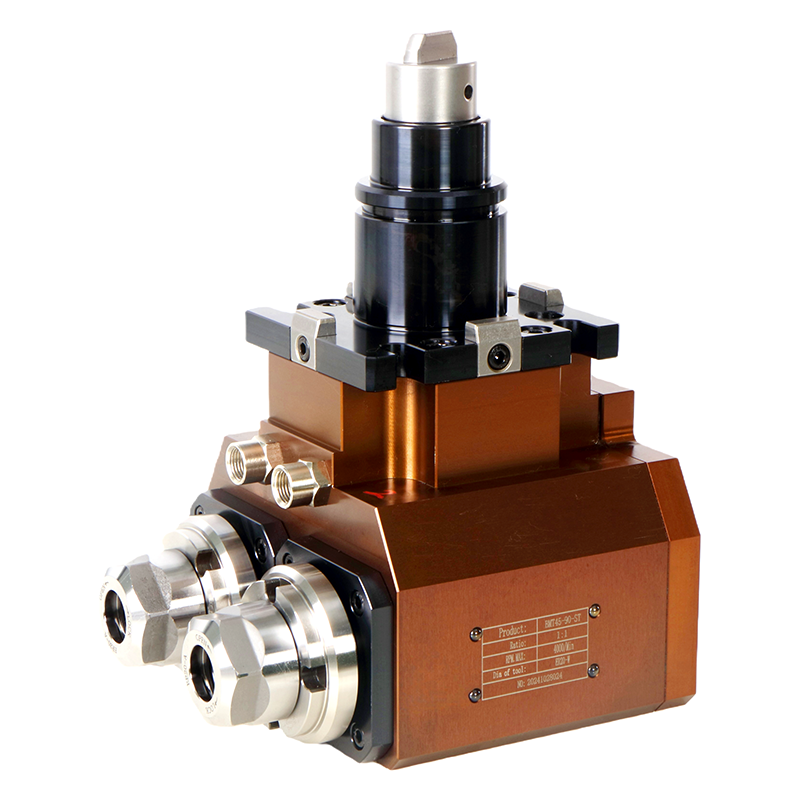

90 Degree Single Side Double Head Power Tool Holder

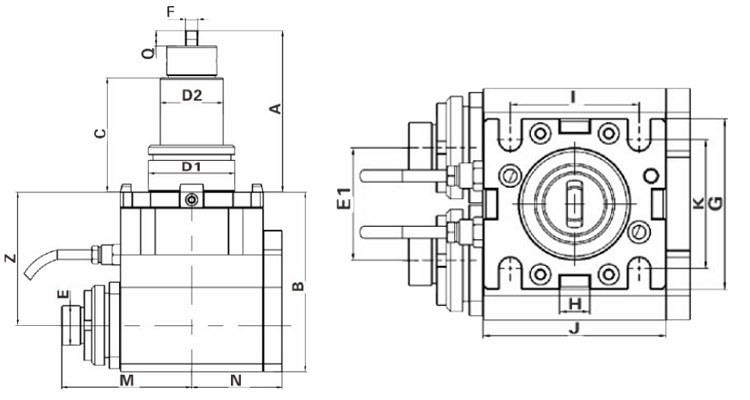

90 Degree Tool Holder

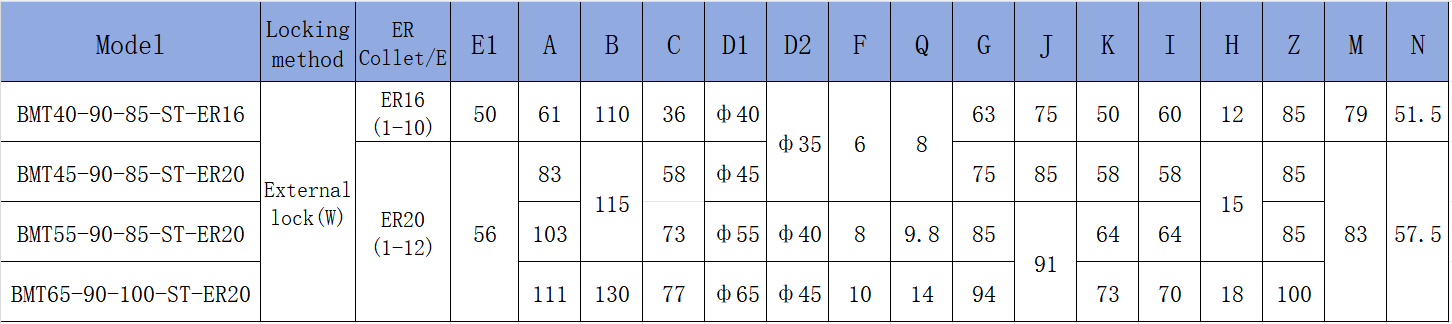

90 Degree Specification Drawing

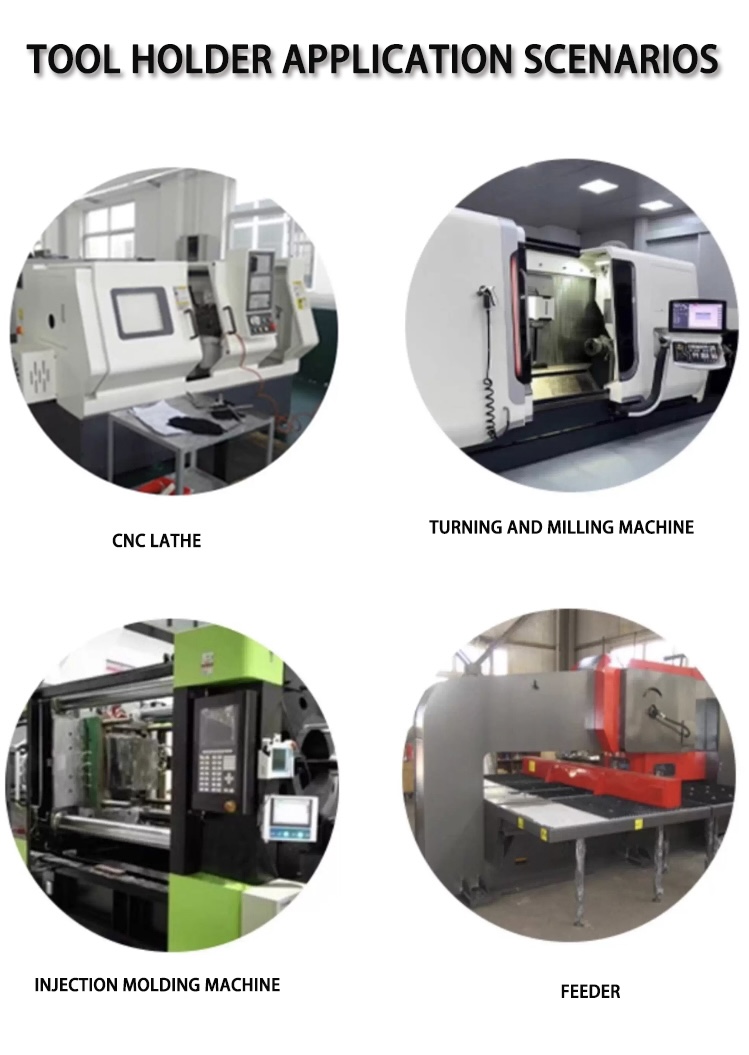

90 Degree Application Detail
Key Advantages

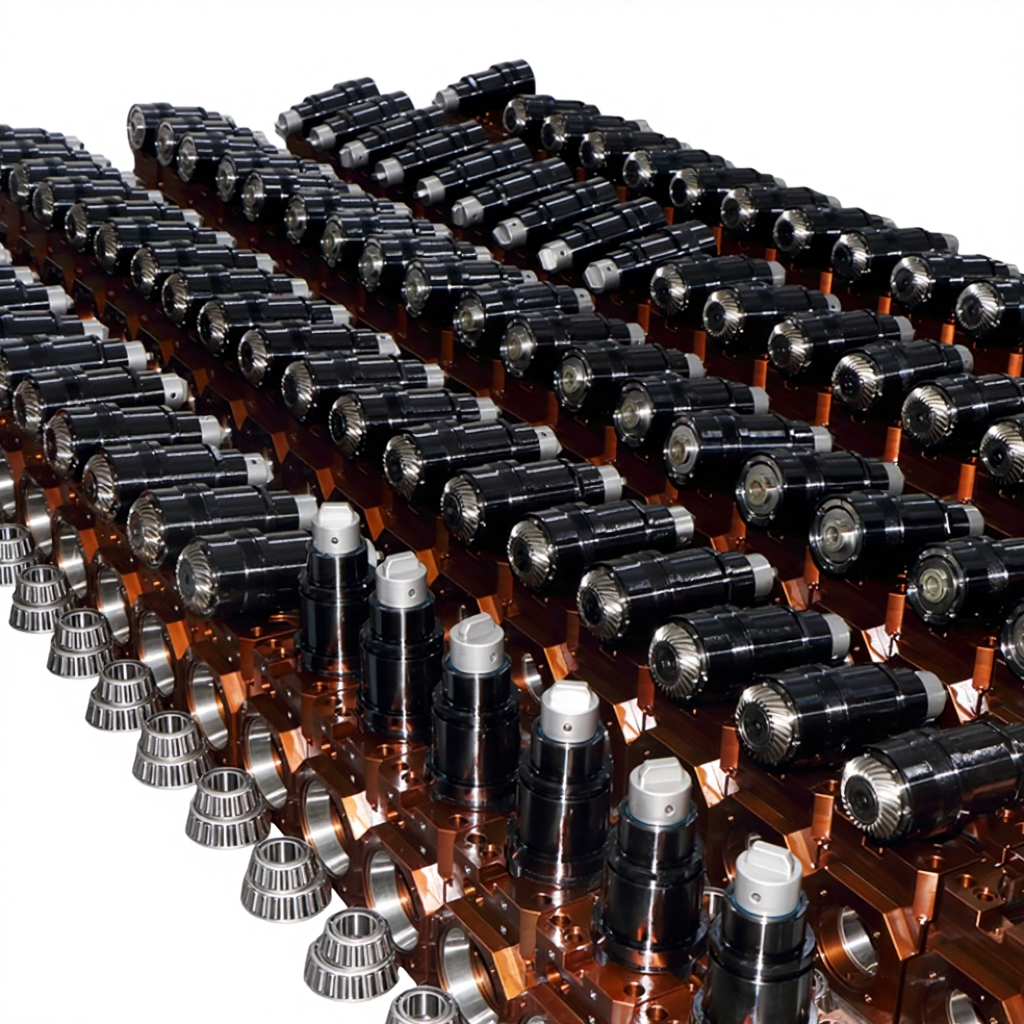

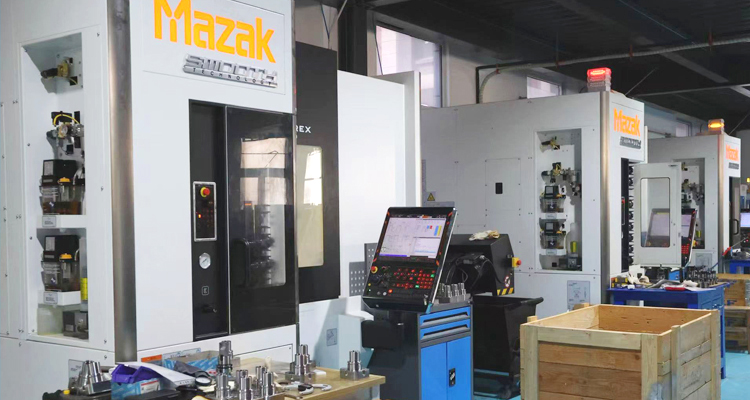

Production Facility Overview
  • One-Stop Purchasing Service
    We offer a one-stop purchasing service for CNC parts and equipment to streamline your supply chain.
  • Transaction Risk Minimization
    We are proficient in international trade terms, international payments, logistics, customs clearance, and document preparation, minimizing transaction risks.
  • Strict Product Quality Service
    100% pre-shipment inspection is performed on all parts to avoid issues such as quality defects or non-conformance.
  • Market Feedback Collection
    We assist clients in collecting end-market feedback to optimize their purchasing strategies (through participation in domestic and international exhibitions).
  • Professional Communication
    Our business team offers multiple channels of communication; we are highly professional, responsive, and dedicated to solving your problems.

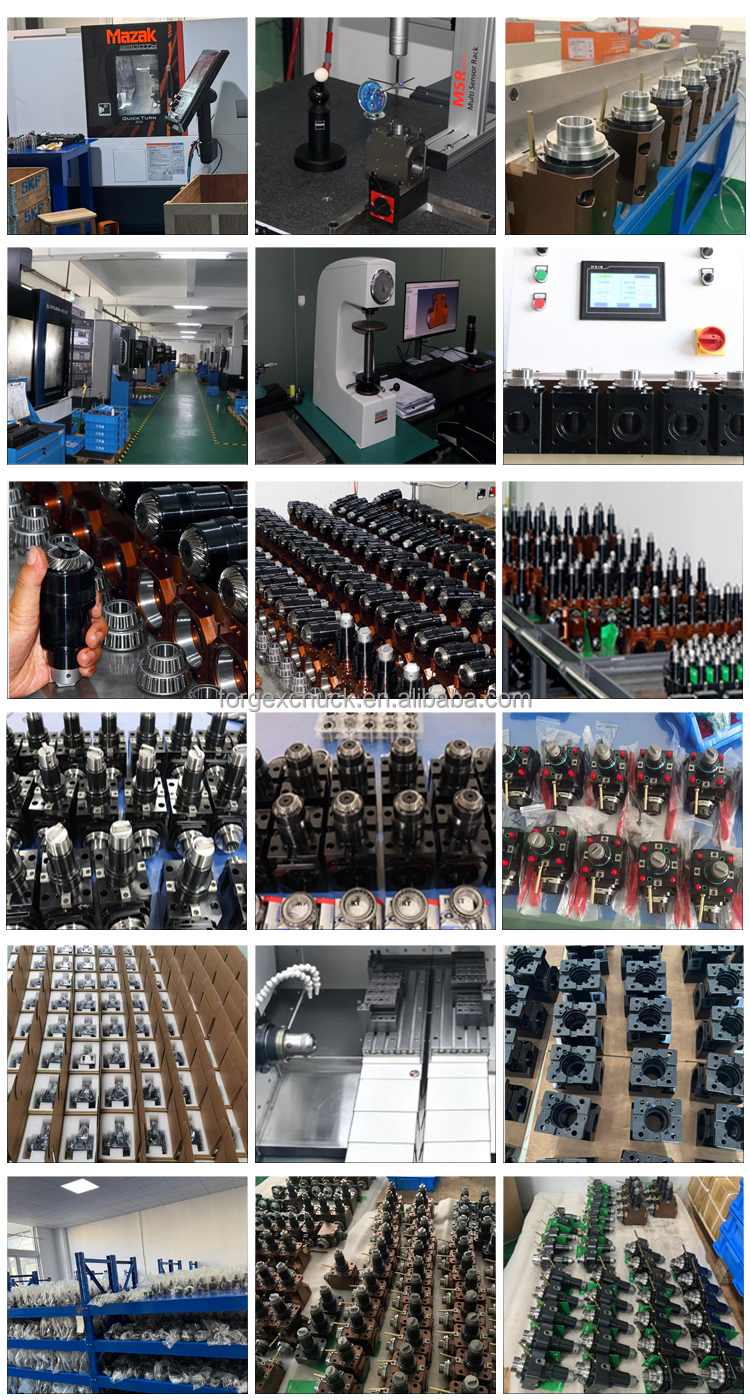

Production Process
Warehouse and Shipping
FAQ
Q1 What machines or turrets is this BMT tool holder compatible with?
This tool holder is compatible with BMT40 / BMT45 / T55 / BMT65 standard turrets, widely used on CNC lathes, turn-mill centers, and live-tool turrets. The mounting dimensions follow international BMT standards and allow direct replacement.
Q2 Is this a live (driven) tool holder or a static one?
This is a live / driven tool holder, suitable for milling, drilling, and tapping operations. Static tool holders are also available upon request.
Q3 What tools and ER collet sizes are supported?
Common configurations support ER16 / ER20 / ER25 / ER32 / ER40 collets, suitable for end mills, drills, taps, and boring tools. The collet size can be customized according to the BMT type and application.
Q4 Can this tool holder replace original or branded BMT holders?
Yes. Our BMT tool holders are dimensionally compatible with common branded models and can be used as a cost-effective alternative. Please provide the original brand model or drawings for confirmation.
Q5 Do you support OEM or non-standard customization?
Yes, we support OEM / ODM customization, including logo, packaging, collet size, output direction (axial/radial), and coolant options. Please share your requirements for MOQ, pricing, and lead time.
